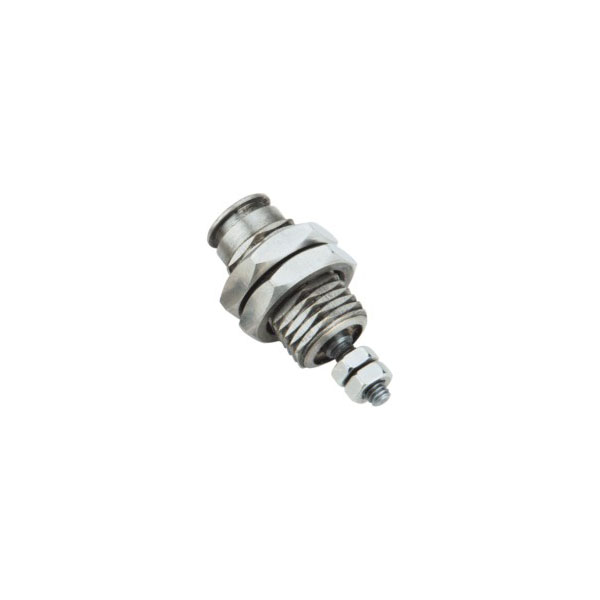

SNS CJPB Series brass single acting pneumatic Pin mofuta o tloaelehileng oa silindara ea moea

Tlhaloso e Khutšoanyane:

CJP Series Standard Pin Type Needle Single Acting Mini Brass Pneumatic Air Cylinder ke silinda e le 'ngoe ea khatiso ea selemo.Ka lebaka la moralo oa eona o kopanetsoeng, e ka boloka sebaka sa ho kenya ka katleho.
1. Silinda ea nale ea CJP e bonolo ebile e tenyetseha ka mefuta e fapaneng, 'me molamu oa piston o na le khoele.
2. Silinda ea nale e nyane ka molumo, e bobebe ka boima ba 'mele le ho boloka sebaka, e nang le likhetho tse peli tsa ts'ebetso e le' ngoe le e habeli.
3. Ho na le mefuta e 'meli ea mofuta oa nale cylinder e le 'ngoe e sebetsang, mofuta oa plug-in le mofuta o kentsoeng ka phanele, o nang le liphaephe tse tobileng.
4. Silinda ea nale e bonolo ebile e sebetsa, e loketseng liketsahalo tse nyenyane tsa sebaka.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

Tlhaloso ea Setsebi

Bore Size(mm)	6	10	15
Mokhoa oa ho sebetsa	Pre-shrink single Acting
Media Media	Moea o hloekisitsoeng
Khatello ea Mosebetsi	0.1~0.7Mpa(1~7kgf/cm²)
Khatello ea Bopaki	1.5Mpa(10.5kgf/cm²)
Mocheso oa Mosebetsi	-5 ~ 70℃
Mokhoa oa Buffering	Ntle
Boholo ba Boema-kepe	M5
'Mele Thepa	Koporo

Stroke ea Cylinder

Bore Size(mm)	Stroke e Tloaelehileng(mm)
6	5,10,15
10	5,10,15
15	5,10,15

Boemo

Bore Size (mm)	A	B	C	E	F			G	H	K	MM	^NN	R	s			w	Z			Q
Bore Size (mm)	A	B	C	E	Ea bo-5	Ea bo-10	Ea bo15	G	H	K	MM	^NN	R	Ea bo-5	Ea bo-10	Ea bo15	w	Ea bo-5	Ea bo-10	Ea bo15	Q
6	7	12	13.9	6	12.5	19.5	26.5	8.5	9	3.5	M3X0.5	M10X1.0	9	18.5	26.5	32.5	3	27.5	34.5	41.5	3
10	10	19	22	6	14.5	21	28	12	12	3.5	M4X0.7	M15X1.5	13	20.5	27	34	4	32.5	39	46	5
15	12	27	31	7	16.5	22.5	29	19	14	4.2	M5X0.8	M22X1.5	20	23.5	29.5	36	5	37.5	43.5	50	6
