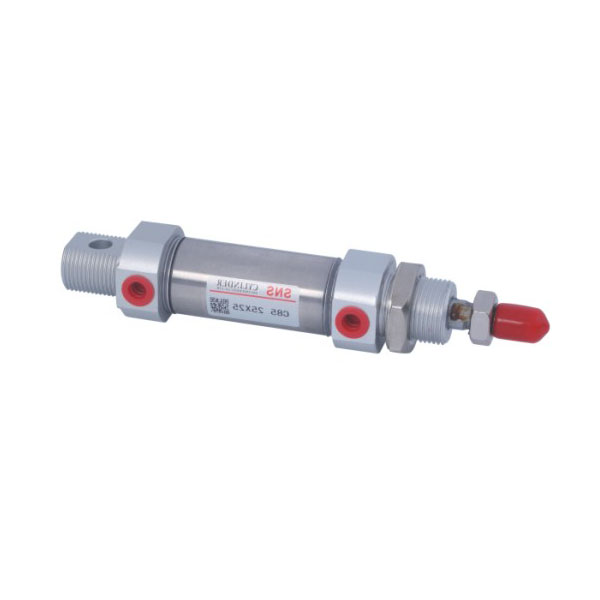

SNS C85 Series aluminium alloy e habeli / e le 'ngoe e sebetsang ka pneumatic European standard air cylinder

Tlhaloso e Khutšoanyane:

1. Sekoahelo se ka pele le se ka morao sa li-cylinder tse nyenyane li na le pad e tsitsitseng e thibelang ho thulana, e ka fokotsang tšusumetso ea ho khutlisa cylinder.
2. Ma mini cylinder e na le mefuta e sa tšoaneng ea sekoahelo sa morao, e leng se etsang hore ho kenya li-cylinder ho be bonolo haholoanyane.
3. 'Mele oa silinda o amohela phala e phahameng ea tšepe e sa hloekang e nang le matla a phahameng le ho hanyetsa kutu.
4. Litlhaloso tse fapaneng tsa lisebelisoa tsa ho kenya li-cylinder le li-cylinder li fumaneha bakeng sa bareki ho khetha.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

13
Tlhaloso ea Setsebi

Bore Size(mm)

8

10

12

16

20

25

Mokhoa oa ho sebetsa

Ho etsa habeli

Media Media

Moea o hloekisitsoeng

Khatello ea Mosebetsi

0.1~0.9Mpa(1~9kgf/cm²)

Khatello ea Bopaki

1.35Mpa(13.5kgf/cm²)

Mocheso oa Mosebetsi

-5 ~ 70℃

Mokhoa oa Buffering

Ntle

Boholo ba Boema-kepe

M5

1/8

'Mele Thepa

Ts'epe e sa beng le mabali

Stroke ea Cylinder

Bore Size

(mm)

Stroke e Tloaelehileng(mm)

Max.stroke

(mm)

Stroke e lumellehang(mm)

8

10 25 40 50 80 100

300

500

10

10 25 40 50 80 100

300

1000

12

10 25 40 50 80 100 125 150 175 200

300

1000

16

10 25 40 50 80 100 125 150 175 200

300

1000

20

10 25 40 50 80 100 125 150 175 200 250 300

500

1000

25

10 25 40 50 80 100 125 150 175 200 250 300

500

Khetho ea Sensor Switch

Mokhoa/Bore boholo

8

10

12

16

20

25

Sensor switjha

CS1-F CS1-U D-Z73 CS1-S

Boemo

14



Bore Size(mm)

AM

BE

φC

φDC

φD

EW

F

EE

GB

GC

WA

WB

H

HR

K

KK

8

12

M12X1.25

4

4

16.7

8

12

M5X0.8

7

5

28

10

28

M4X0.7

10

12

M12X1.25

4

4

16.7

8

12

M5X0.8

7(5.5)

5(5.5)

10.5

4.5

28

10.5

28

M4X0.7

12

16

M16X1.5

6

6

19.7

12

17

M5X0.8

8(5.5)

6(5.5)

9.5

5.5

38

14

38

M6X1

16

16

M16X1.5

6

6

19.7

12

17

M5X0.8

8(5.5)

6(5.5)

9.5

5.5

38

14

38

M6X1

20

20

M22X1.5

8

8

28

16

20

G1/8

8

8

11.5(13)

8.5

44

17

44

M8X1.25

25

22

M22X1.5

10

8

33.5

16

20

G1/8

8

8

11.5(13)

10.5

50

20

50

M10X1.25

Bore Size(mm)

KV

KW

NB

NC

NA

φND

RR

S

SW

U

WH

XC

Z

ZZ

8

19

6

11.5

9.5

15

12

10

46

7

6

16

64

76

86

10

19

6

11.5(13.5)

9.5(13.5)

15

12

10

46(53)

7

6

16

64(71)

76(83)

86(93)

12

24

8

12.5(12.5)

10.5(12.5)

18.3

16

14

50(54)

10

9

22

75(79)

91(95)

105(109)

16

24

8

12.5(12.5)

10.5(12.5)

18.3

16

13

56

10

9

22

82

98

111

20

32

11

15(17)

15(17)

24

22

11

62

13

12

24

95

115

126

25

32

11

15(17)

15(17)

30

22

11

65

17

12

28

104

126

137
