Bongata(Likotoana) | 1 - 100 | 101 - 500 | 501 - 1000 | >1000 |
EST.Nako(matsatsi) | 3 | 5 | 7 | Ho buisanoa |
.Sebopeho :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.

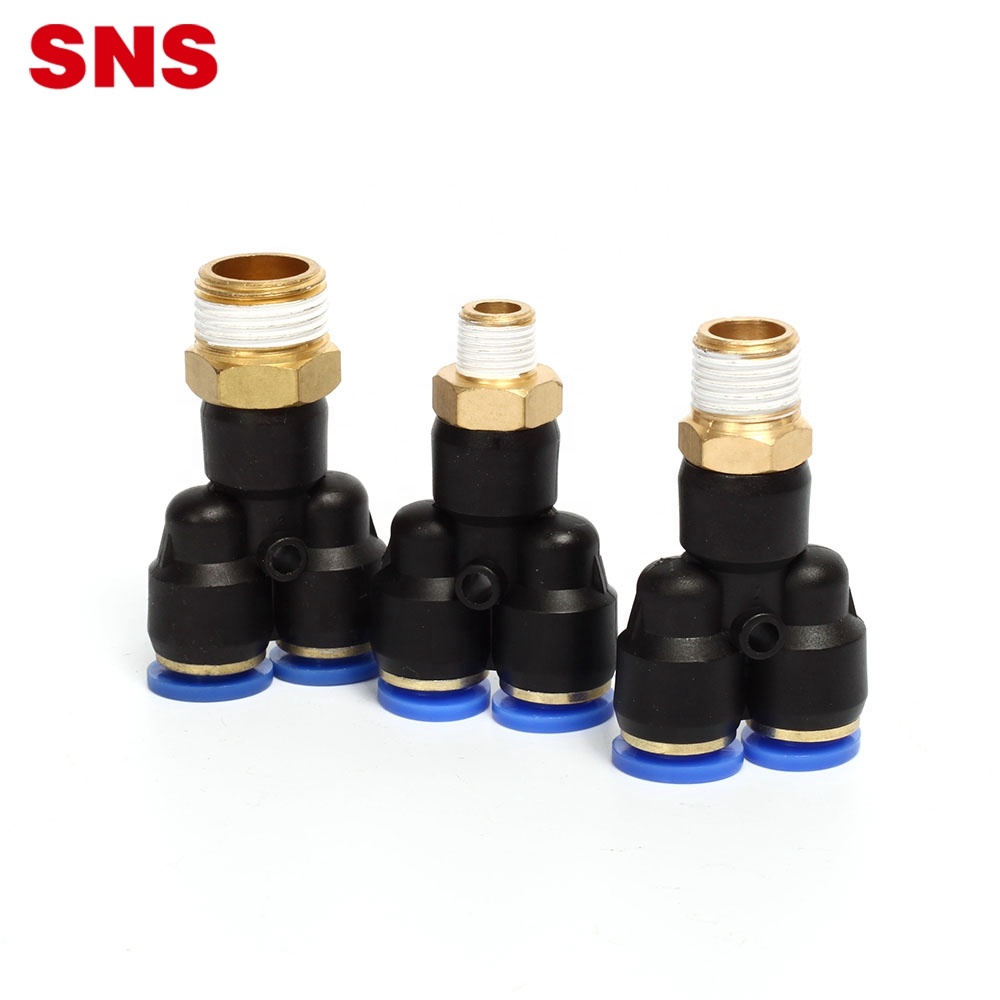

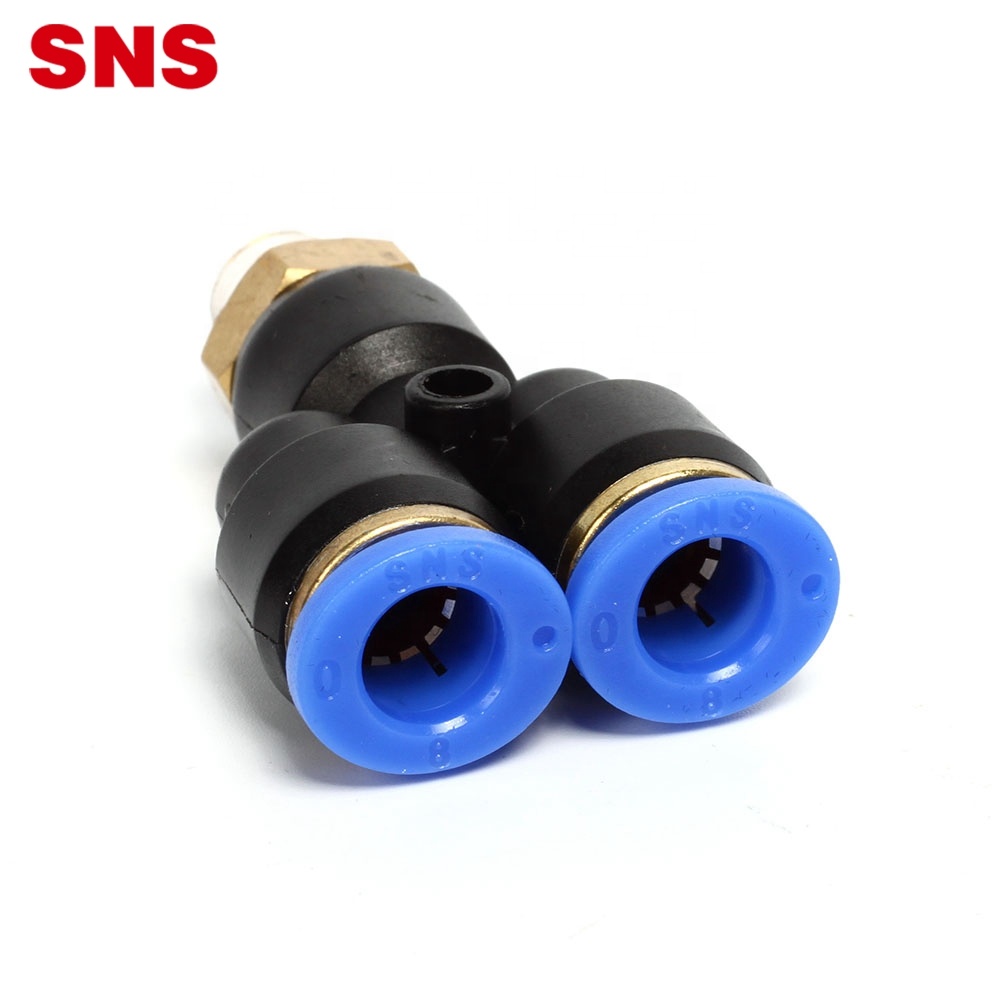

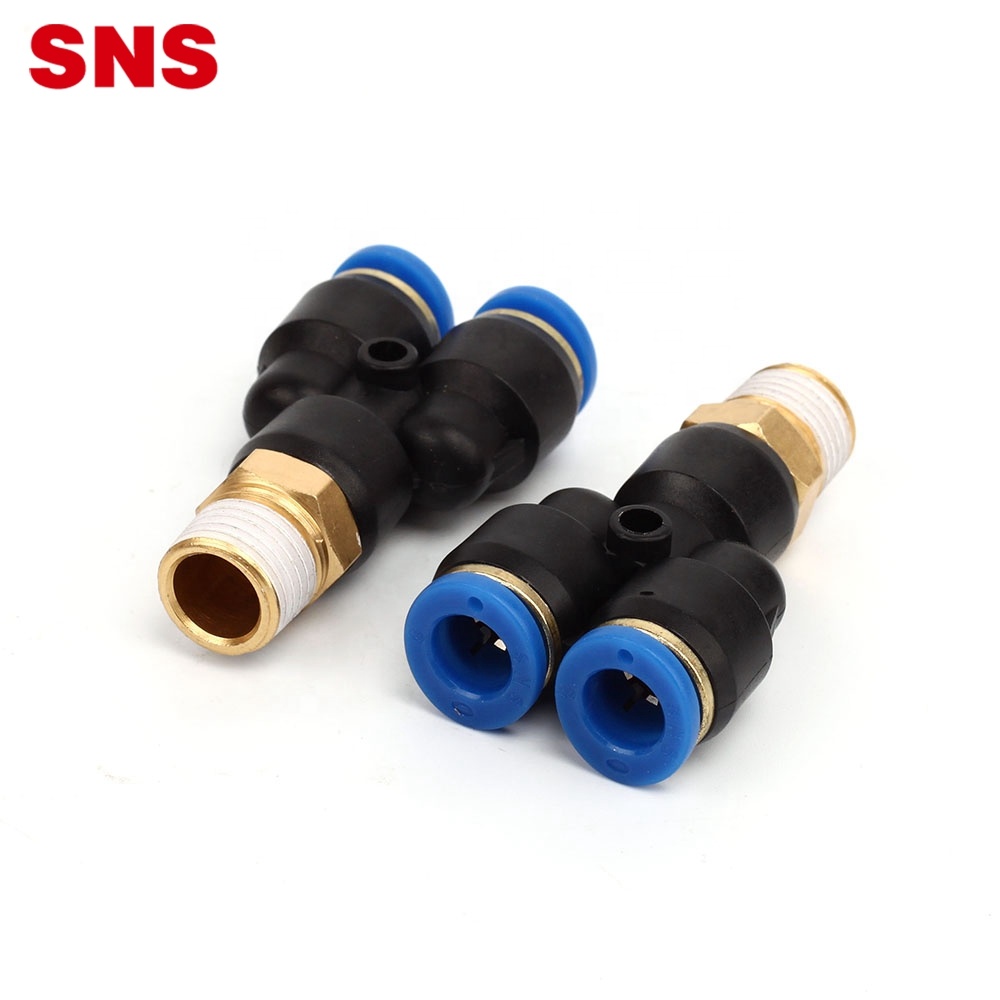

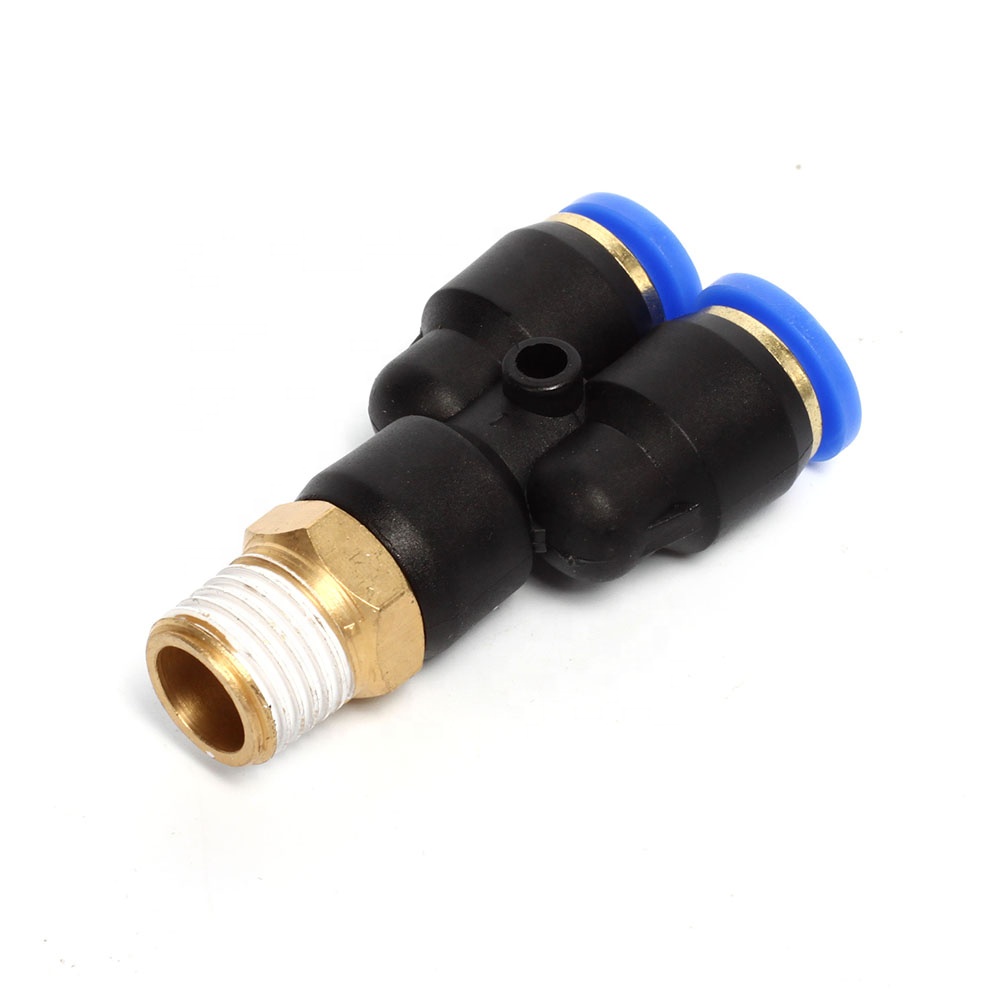

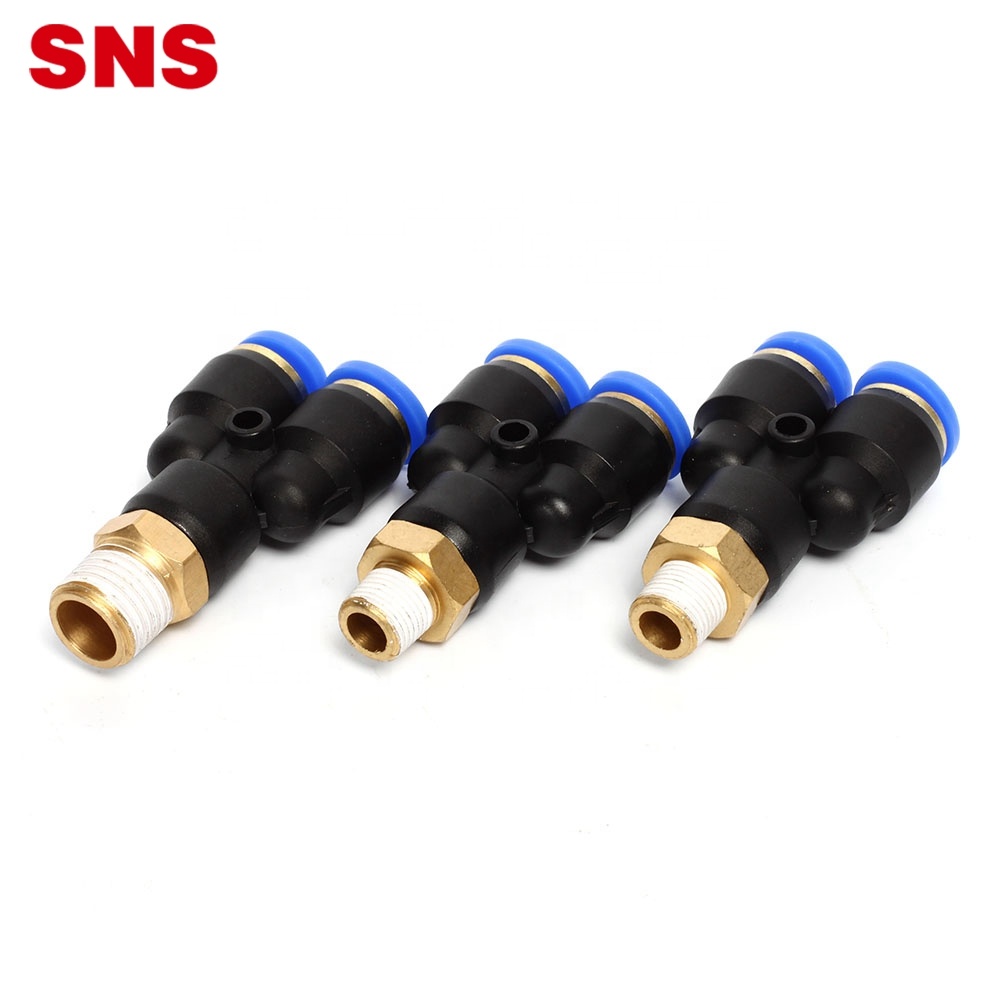

Lisebelisoa tsa koporo le tsa polasetiki li etsa hore li-fittings li be bobebe ebile li kopane, nate ea rivet ea tšepe ea hlokomela
bophelo bo bolelele ba tšebeletso.Sleeve e nang le boholo bo fapaneng bakeng sa khetho e bonolo haholo ho hokahanya
le ho kgaola.Ts'ebetso e ntle ea ho tiisa e tiisa boleng bo phahameng.
Hlokomela :
1. NPT, PT, G khoele ke khetho.
2. 'Mala oa sleeve oa pipe o ka etsoa ka mokhoa o ikhethileng.
3. Mefuta e khethehileng ea li-ftttings e ka boela ea etsoa.
Pipe ea Inch | Metric Pipe | ØD | R | A | B | H | J | Ød |
SPX5/32-M5 | SPX4-M5 | 4 | M5 | 4.5 | 42.5 | 10 | 11 | 2.5 |
SPX5/32-01 | SPX4-01 | 4 | PT1/8 | 7 | 43 | 10 | 11 | 2.5 |
SPX5/32-02 | SPX4-02 | 4 | PT1/4 | 9 | 45.5 | 14 | 11 | 2.5 |
SPX1/4-M5 | SPX6-M5 | 6 | M5 | 4.5 | 45.5 | 12 | 13 | 3.5 |
SPX1/4-01 | SPX6-01 | 6 | PT1/8 | 7 | 46 | 12 | 13 | 3.5 |
SPX1/4-02 | SPX6-02 | 6 | PT1/4 | 9 | 48.5 | 14 | 13 | 3.5 |
SPX1/4-03 | SPX6-03 | 6 | PT3/8 | 10 | 48.5 | 17 | 13 | 3.5 |
SPX1/4-04 | SPX6-04 | 6 | PT1/2 | 10 | 51 | 21 | 13 | 3.5 |
SPX5/16-01 | SPX8-01 | 8 | PT1/8 | 8 | 51 | 14 | 15 | 3.5 |
SPX5/16-02 | SPX8-02 | 8 | PT1/4 | 10 | 53 | 14 | 15 | 4 |
SPX5/16-03 | SPX8-03 | 8 | PT3/8 | 10 | 53.5 | 17 | 15 | 4 |
SPX5/16-04 | SPX8-04 | 8 | PT1/2 | 11 | 55 | 21 | 15 | 4 |
SPX3/8-01 | SPX10-01 | 10 | PT1/8 | 8 | 56.5 | 17 | 19 | 4 |
SPX3/8-02 | SPX10-02 | 10 | PT1/4 | 10 | 58.5 | 17 | 19 | 4 |
SPX3/8-03 | SPX10-03 | 10 | PT3/8 | 10 | 58.5 | 17 | 19 | 4 |
SPX3/8-04 | SPX10-04 | 10 | PT1/2 | 11 | 59.5 | 21 | 19 | 4 |
SPX1/2-01 | SPX12-01 | 12 | PT1/8 | 8 | 62 | 19 | 21 | 4 |
SPX1/2-02 | SPX12-02 | 12 | PT1/4 | 10 | 64 | 19 | 21 | 4 |
SPX1/2-03 | SPX12-03 | 12 | PT3/8 | 10 | 64 | 19 | 21 | 4 |
SPX1/2-04 | SPX12-04 | 12 | PT1/2 | 11 | 65 | 21 | 21 | 4 |
SPX14-03 | 14 | PT3/8 | 12 | 64.5 | 24 | 23.5 | 4 | |
SPX14-04 | 14 | PT1/2 | 13 | 67.5 | 24 | 23.5 | 4 | |
SPX16-03 | 16 | PT3/8 | 12 | 75.5 | 24 | 27 | 4 | |
SPX16-04 | 16 | PT1/2 | 13 | 78.5 | 24 | 27 | 4 |
