China SNS SPWB Series pneumatic one touch male thread triple lekala ho fokotsa sehokedi 5 tsela polasetiki moea o loketseng bakeng sa PU hose tube Manufacturer le Supplier |SNS Pneumatic

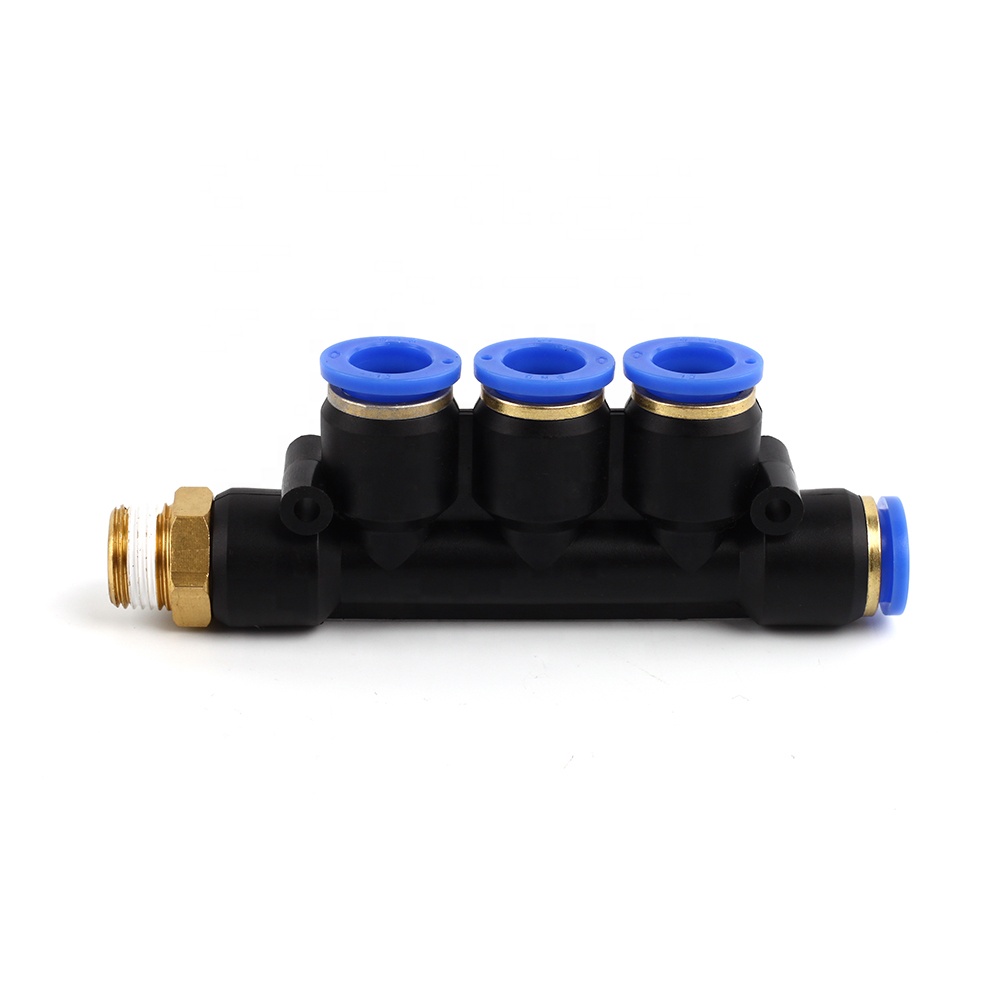

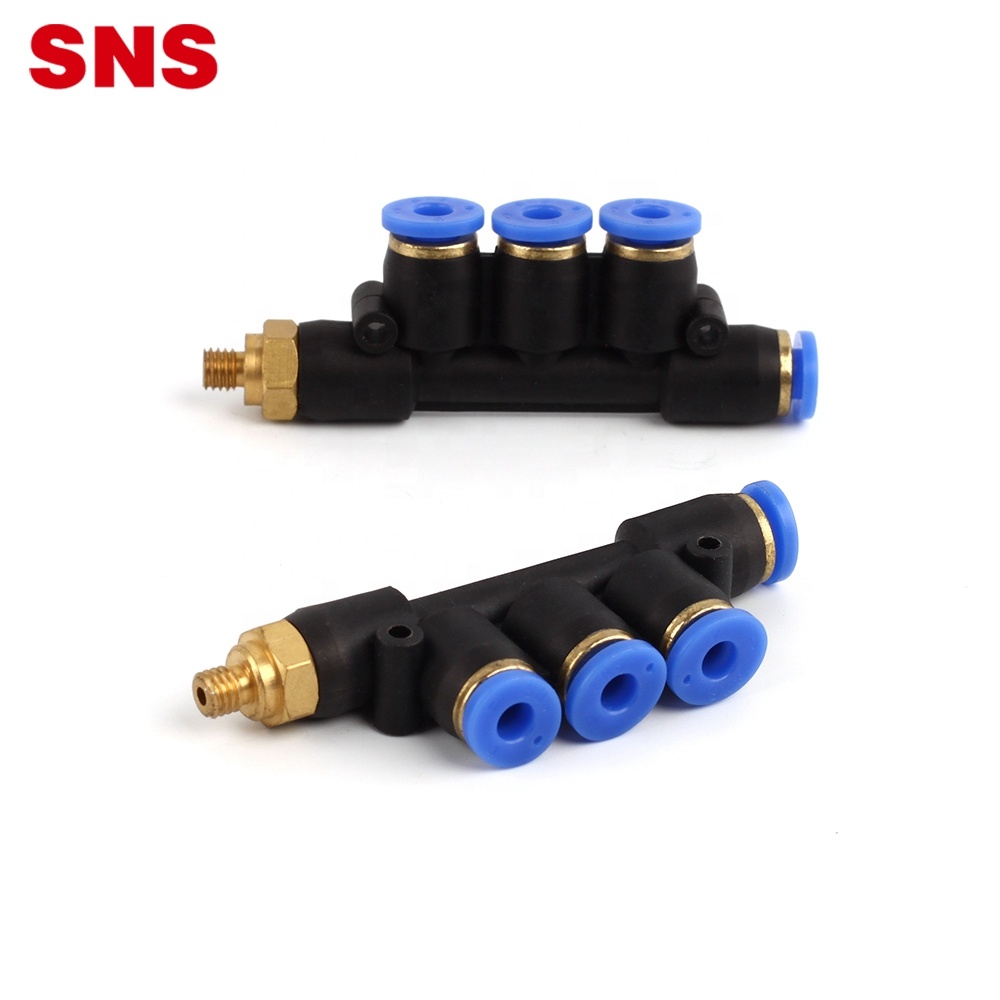

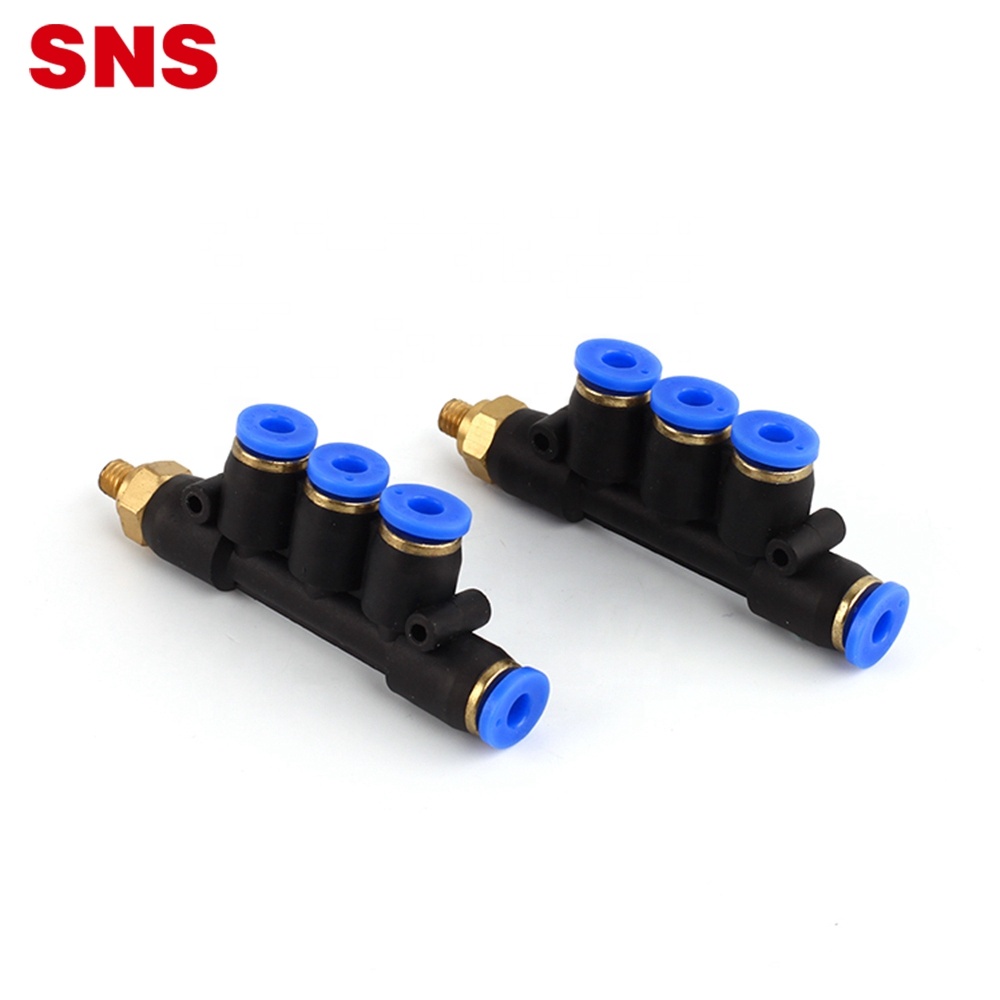

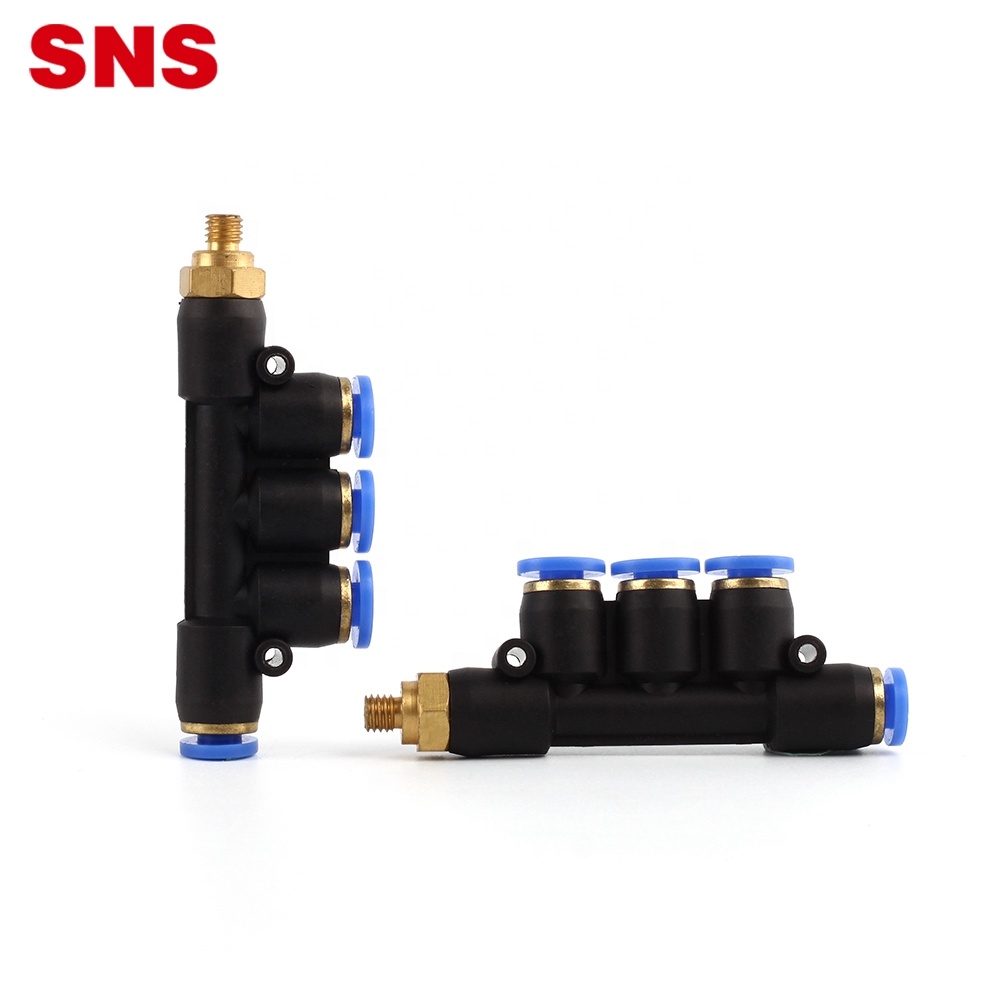

SNS SPWB Series pneumatic one touch male khoele hararo lekala fokotsa sehokelo 5 tsela polasetiki moea loketseng bakeng sa PU hose tube Featured Image

SNS SPWB Series pneumatic one touch male khoele hararo lekala fokotsa sehokedi 5 tsela polasetiki moea loketseng bakeng sa PU hose tube.

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

■ Tšobotsi :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.
Lisebelisoa tsa polasetiki li etsa hore lisebelisoa li be bobebe hape li kopane, tšepe ea rivet nut e hlokomela tšebeletso e telele
bophelo.Sleeve e nang le boholo bo fapaneng bakeng sa khetho e bonolo haholo ho hokahanya le ho e khaola.
Ts'ebetso e ntle ea ho tiisa e tiisa boleng bo phahameng.
Hlokomela :
1. NPT, PT, G khoele ke khetho.
2. 'Mala oa sleeve oa pipe o ka etsoa ka mokhoa o ikhethileng.
3. Mefuta e khethehileng ea li-ftttings e ka boela ea etsoa.

Pipe ea Inch	Metric Pipe	ØD	R	A	B	H	F	J	Ød
SPWB5/32-M5	SPWB4-M5	4	M5	4.5	68.5	10	37	12	2.5
SPWB5/32-01	SPWB4-01	4	PT1/8	7	69	10	37	12	2.5
SPWB5/32-02	SPWB4-02	4	PT1/4	9	71.5	14	37	12	2.5
SPWB1/4-M5	SPWB6-M5	6	M5	4.5	75.5	12	43.5	13.5	3.5
SPWB1/4-01	SPWB6-01	6	PT1/8	7	76	12	43.5	13.5	3.5
SPWB1/4-02	SPWB6-02	6	PT1/4	9	78.5	14	43.5	13.5	3.5
SPWB1/4-03	SPWB6-03	6	PT3/8	10	79.5	17	43.5	13.5	3.5
SPWB1/4-04	SPWB6-04	6	PT1/2	11	81	21	43.5	13.5	3.5
SPWB5/16-01	SPWB8-01	8	PT1/8	8	88.5	14	55	17.5	4
SPWB5/16-02	SPWB8-02	8	PT1/4	10	90.5	14	55	17.5	4
SPWB5/16-03	SPWB8-03	8	PT3/8	10	91	17	55	17.5	4
SPWB5/16-04	SPWB8-04	8	PT1/2	11	92.5	21	55	17.5	4
SPWB3/8-01	SPWB10-01	10	PT1/8	8	100.5	17	62	19.5	4
SPWB3/8-02	SPWB10-02	10	PT1/4	10	102.5	17	62	19.5	4
SPWB3/8-03	SPWB10-03	10	PT3/8	10	102.5	17	62	19.5	4
SPWB3/8-04	SPWB10-04	10	PT1/2	11	103.5	21	62	19.5	4
SPWB1/2-02	SPWB12-02	12	PT1/4	10	113	19	69.5	22	5
SPWB1/2-03	SPWB12-03	12	PT3/8	10	113	19	69.5	22	5
SPWB1/2-04	SPWB12-04	12	PT1/2	11	114	21	69.5	22	5
