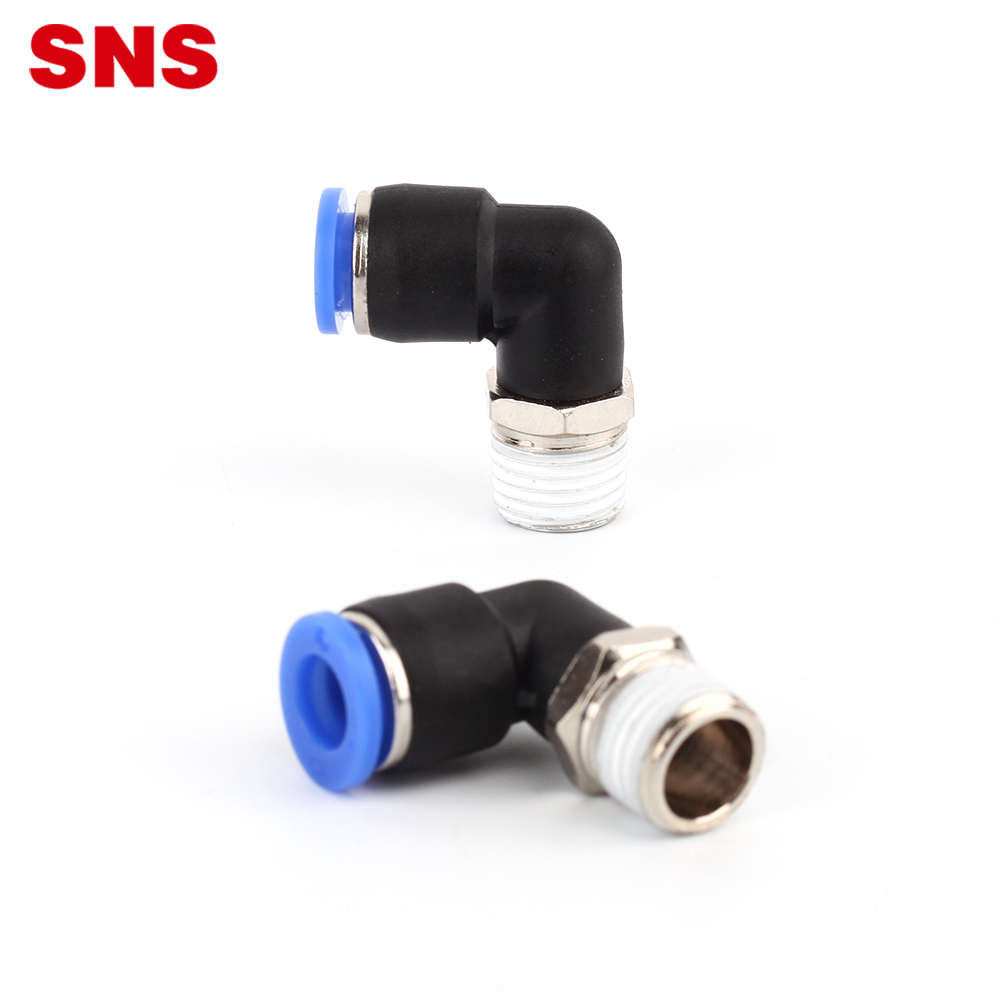

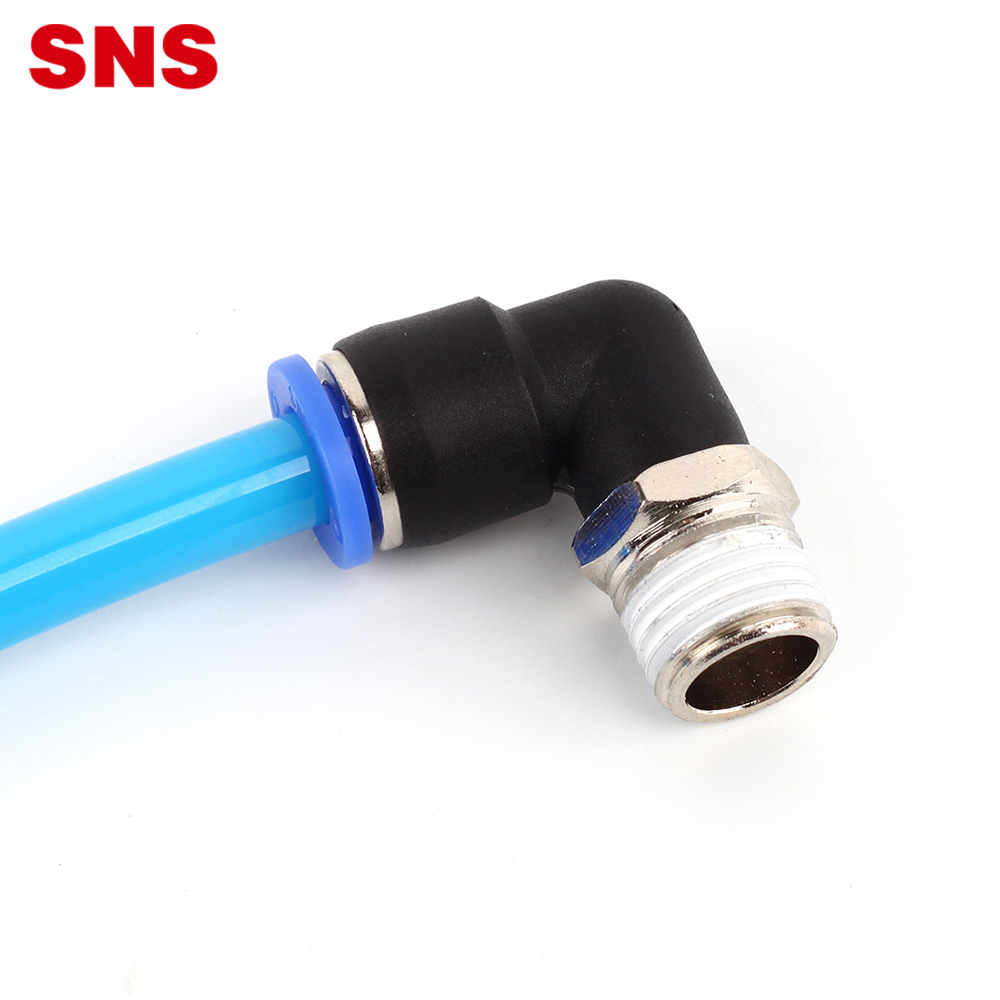

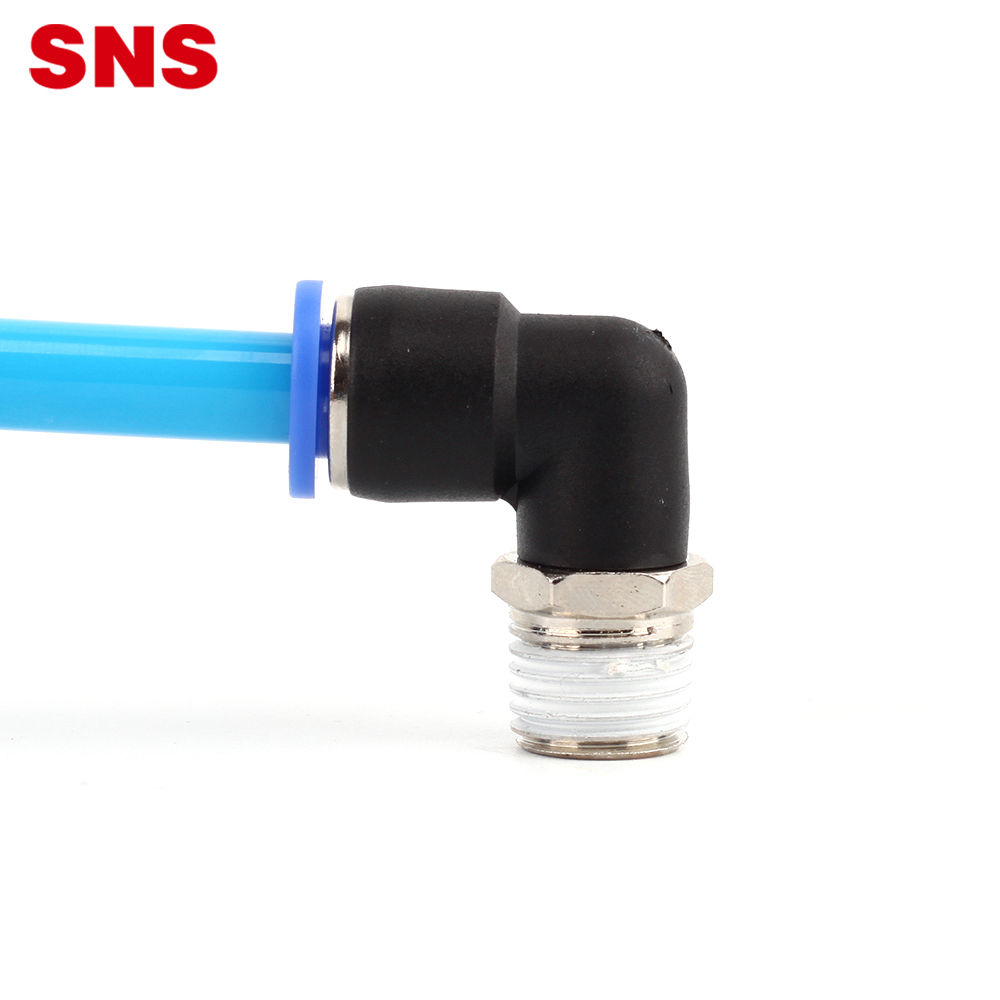

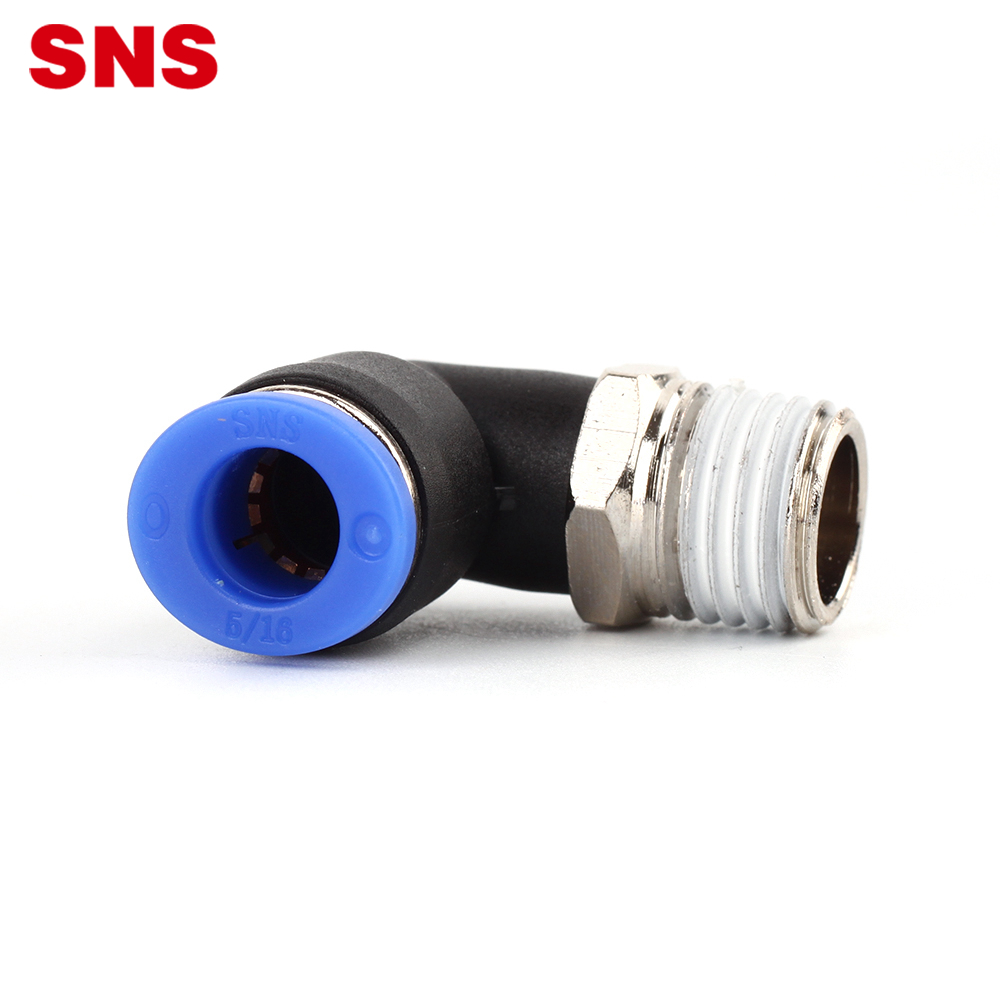

SNS SPL-G Series pneumatic one touch L mofuta oa 90 degree e motona setsoe G khoele ea moea tube polasetiki e potlakang ka lesale la tiiso

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa
Sebopeho :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.
Lisebelisoa tsa koporo le tsa polasetiki li etsa hore li-fittings li be bobebe ebile li kopane, nate ea rivet ea tšepe ea hlokomela
bophelo bo bolelele ba tšebeletso.Sleeve e nang le boholo bo fapaneng bakeng sa khetho e bonolo haholo ho hokahanya
le ho kgaola.Ts'ebetso e ntle ea ho tiisa e tiisa boleng bo phahameng.
Hlokomela :
1. NPT, PT, G khoele ke khetho.
2. 'Mala oa sleeve oa pipe o ka etsoa ka mokhoa o ikhethileng.
3. Mefuta e khethehileng ea li-ftttings e ka boela ea etsoa.

Mohlala Φ D G A B E H Φ d
SPL4-G01 4 G1/8 7 25.5 10 18.5 /
SPL4-G02 4 G1/4 9 28 14 18.5 /
SPL6-G01 6 G1/8 7 27.5 12 20.5 3.5
SPL6-G02 6 G1/4 9 30 14 20.5 3.5
SPL6-G03 6 G3/8 10 31 17 20.5 3.5
SPL6-G04 6 G1/2 11 32 21 20.5 3.5
SPL8-G01 8 G1/8 8 31 14 23 4.5
SPL8-G02 8 G1/4 10 33 14 23 4.5
SPL8-G03 8 G3/8 10 33.5 17 23 4.5
SPL8-G04 8 G1/2 11 35 21 23 4.5
SPL10-G01 10 G1/8 8 35.5 17 28 4
SPL10-G02 10 G1/4 10 37.5 17 28 4
SPL10-G03 10 G3/8 10 37.5 17 28 4
SPL10-G04 10 G1/2 11 38.5 21 28 4
SPL12-G02 12 G1/4 10 40.5 19 30.5 5
SPL12-G03 12 G3/8 10 40.5 19 30.5 5
SPL12-G04 12 G1/2 11 41.5 21 35 5
SPL16-G03 16 G3/8 12 47 24 34.5 4
SPL16-G04 16 G1/2 13 50 24 34.5 4
