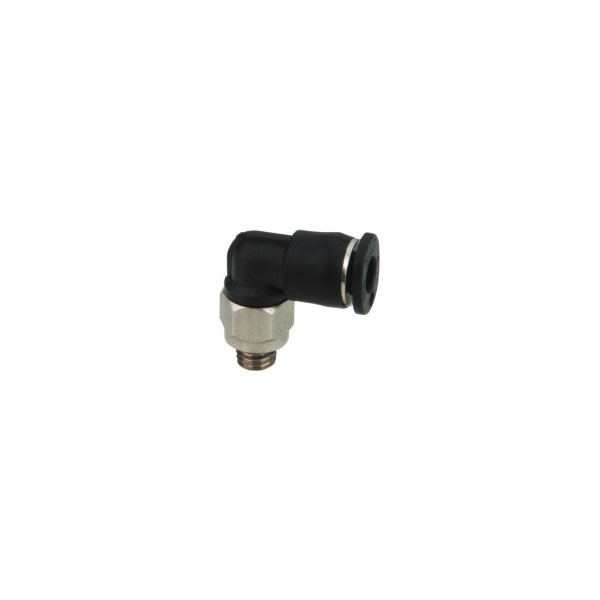

SNS SPL-C Series pneumatic one touch air hose tube sehokedi sa monna o otlolohileng koporo e potlakileng e nyane e loketseng

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara
Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

SPL-C



Metric Pipe

φD

A

B

H

E

M

X

Y

L1

L2

SPL3-M3C

3

3

4.5

8

6

M3

8

10

14

15

SPL3-M5C

3

3.5

5

8

8

M5

8

10

14.5

15

SPL3-01C

3

8

-

10

-

PT1/8

8

10

16

15

SPL4-M5C

4

3.5

5

8

8

M5

8

10

14.5

15

SPL4-M6C

4

3.5

5

8

8

M6

8

10

14.5

15

SPL4-01C

4

8

10

PT1/8

8

10

16

15

SPL4-02C

4

9

14

PT 1/4

8

10

17

15

SPL5-M5C

5

3.5

5

10

8

M5

10

12

15.5

15.5

SPL5-01C

5

8

10

PT 1/8

10

12

17

15.5

SPL5-02C

5

9

14

PT 1/4

10

12

18

15.5

SPL6-M5C

6

3.5

5

10

8

M5

10

12

15.5

15.5

SPL6-01C

6

8

10

PT1/8

10

12

17

15.5

SPL6-02C

6

9

14

PT 1/4

10

12

18

15
