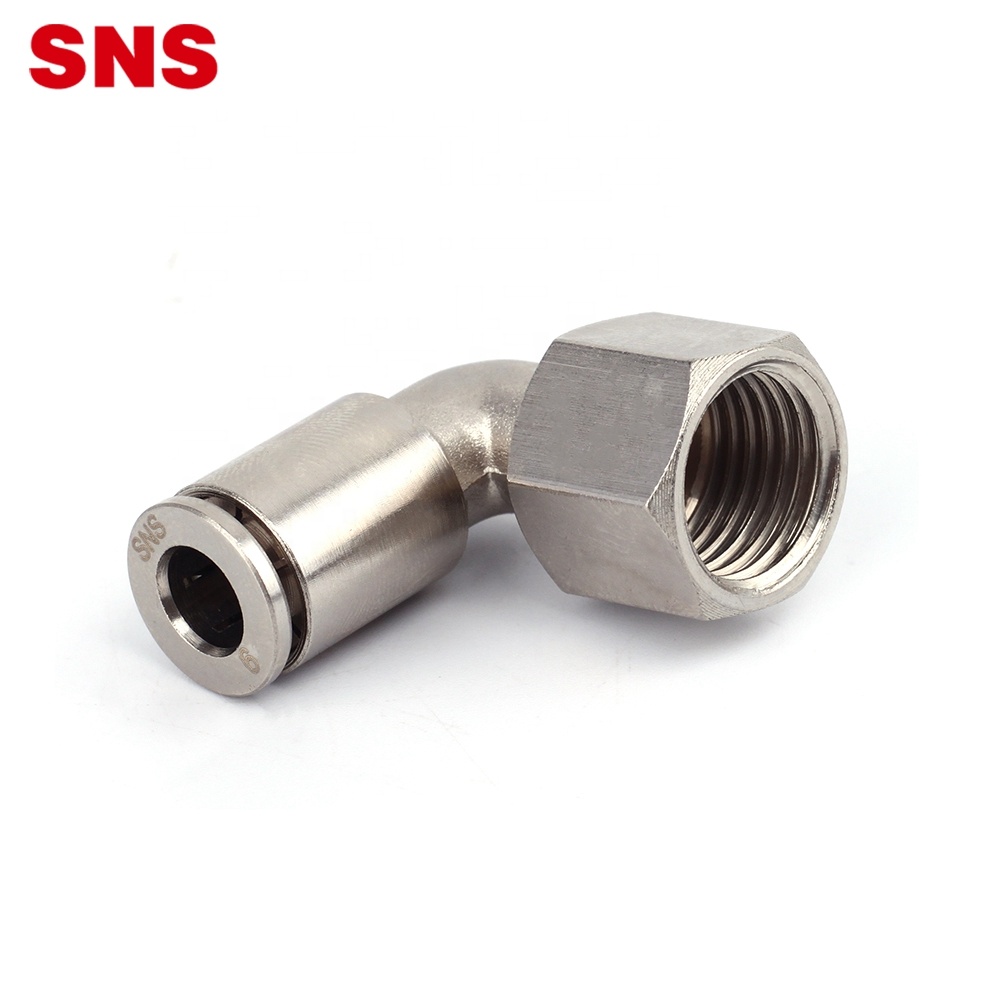

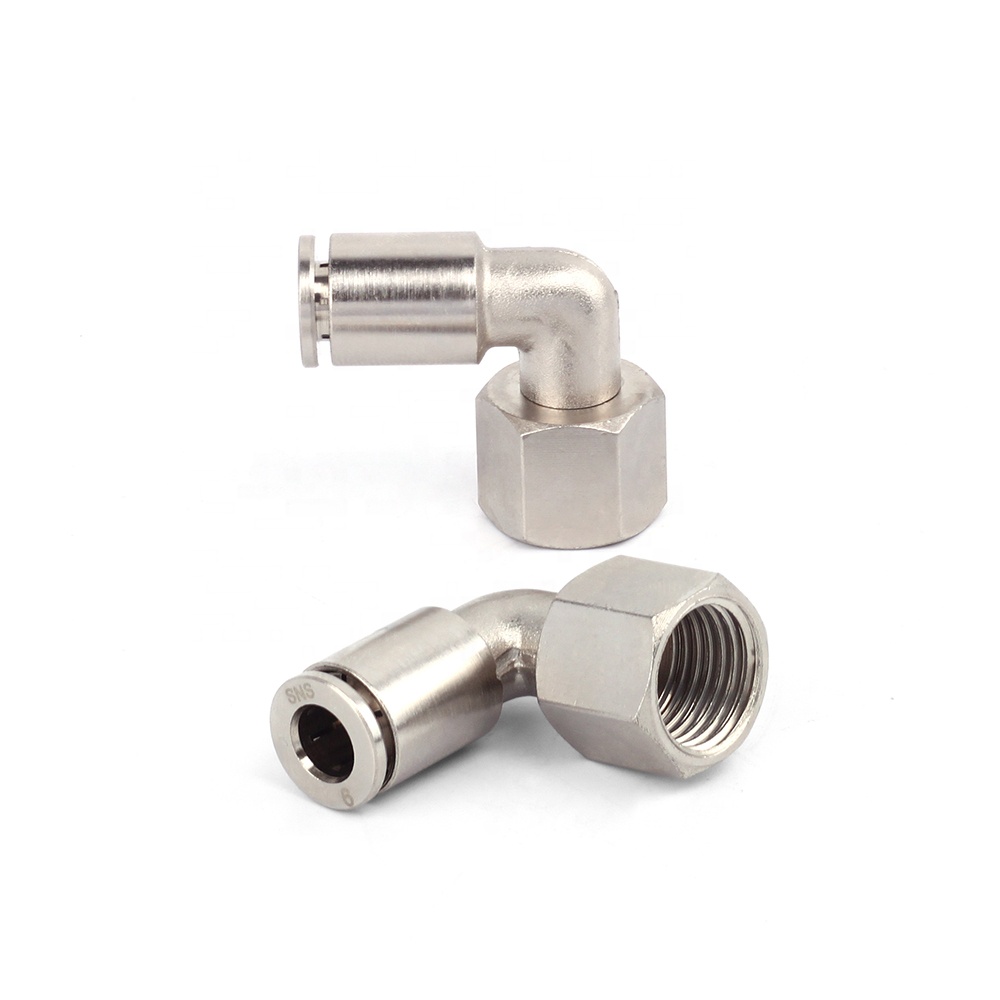

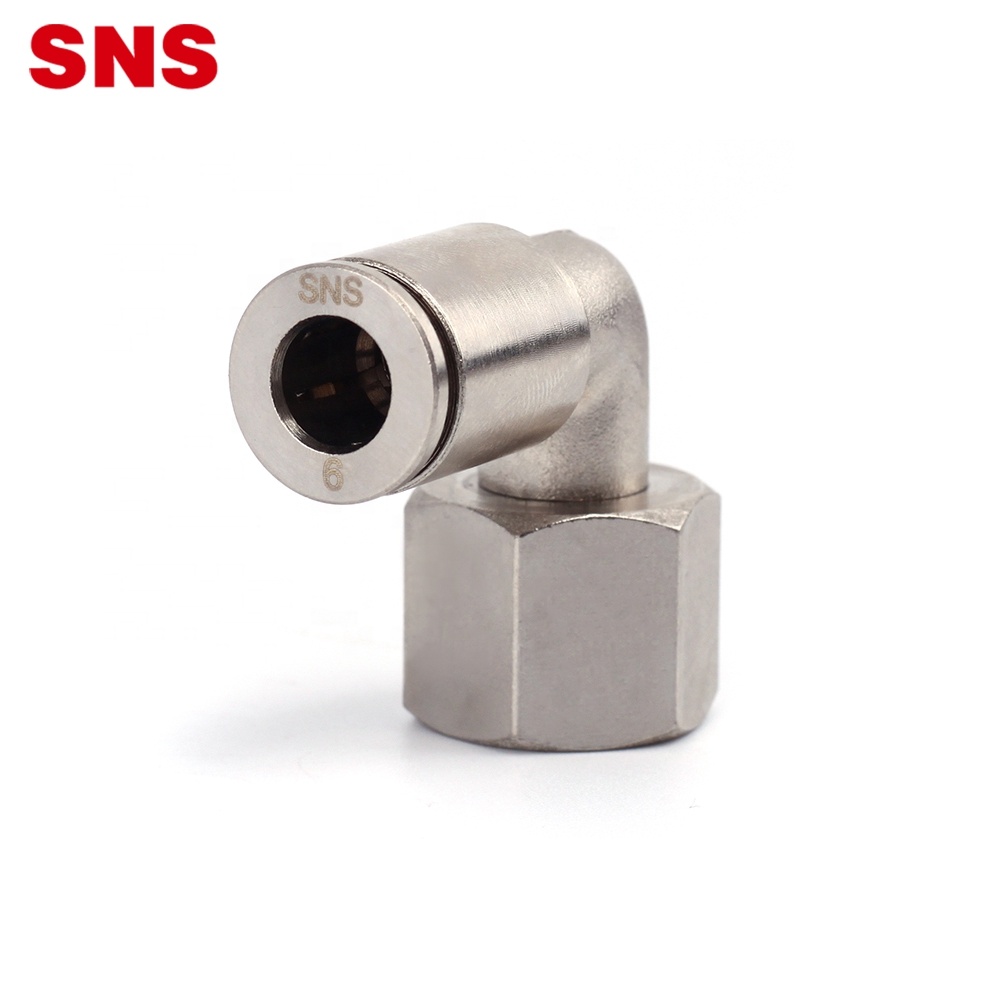

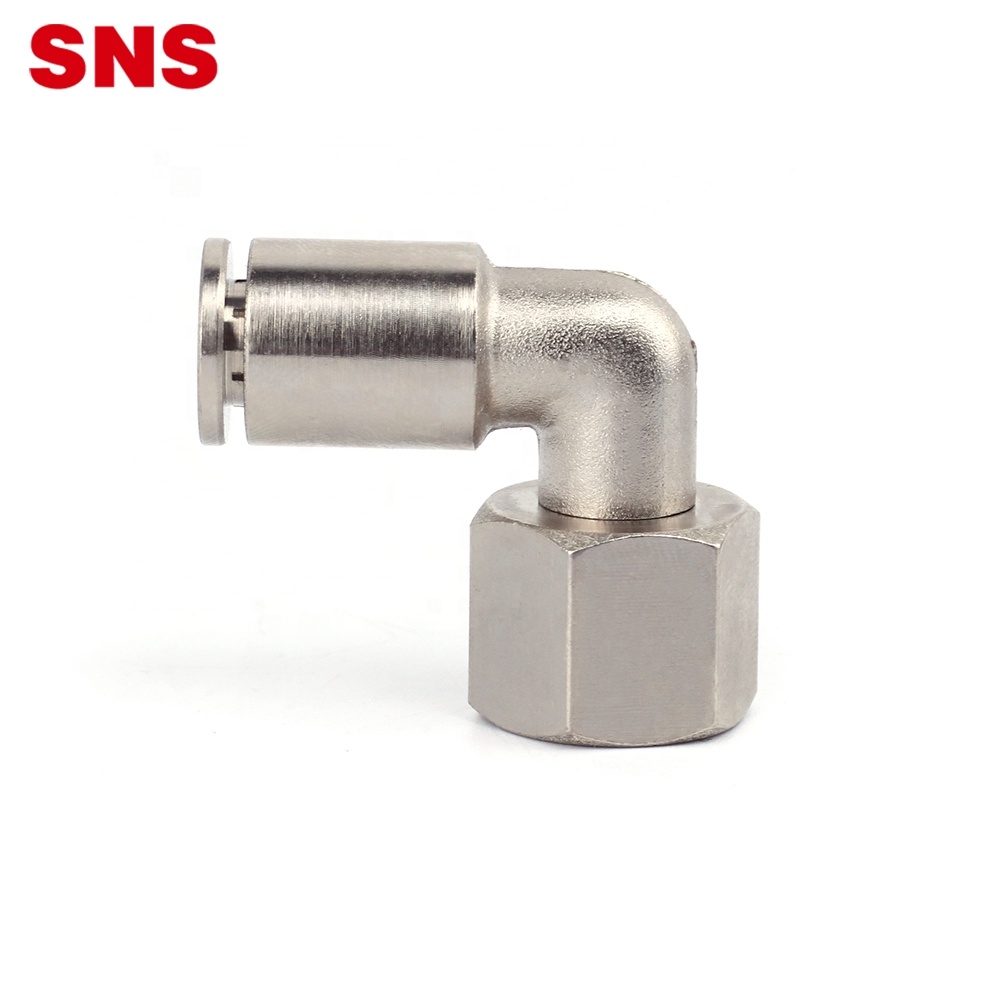

SNS JPLF Series L mofuta oa 90 degree female G/NPT thread elbow air hose sehokelo se potlakileng sa nickel-plated brass pneumatic fitting

Tlhaloso e Khutšoanyane:

Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4.Fittings e ka sebelisoa ka polyurethane, nylon har'a tse ling.

5. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

Sebopeho :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.
Lisebelisoa tsa koporo tse entsoeng ka nickel li etsa hore li-ftttings li be bobebe 'me li kopane, nate ea rivet ea tšepe ea hlokomela
bophelo bo bolelele ba tšebeletso.Sleeve e nang le boholo bo fapaneng bakeng sa khetho e bonolo haholo ho hokahanya
le ho kgaola.Ts'ebetso e ntle ea ho tiisa e tiisa boleng bo phahameng.
Hlokomela :
1. NPT, PT, G khoele ke khetho.
2. Mefuta e khethehileng ea li-ftttings e ka boela ea etsoa.



Mohlala φD P D S L1 L2 L3
JPLF4-M5 4 M5 10 10 18 16 7
JPLF4-01 1 G1/8 10 12 18 19 10
JPLF4-02 4 G1/4 10 15 18 21 12
JPLF6-M5 6 M5 12.5 10 23.5 16 7
JPLF6-01 6 G1/8 12.5 12 23.5 19 10
JPLF6-02 6 G1/4 12.5 15 23.5 21 12
JPLF6-03 6 G3/8 12.5 19 23.5 22 13
JPLF6-04 6 G1/2 12.5 24 23.5 23 14
JPLF8-01 8 G1/8 15 12 26 20.5 10
JPLF8-02 8 G1/4 15 15 26 22.5 12
JPLF8-03 8 G3/8 15 19 26 23.5 13
JPLF8-04 8 G1/2 15 24 26 24.5 14
JPLF10-01 10 G1/8 17 14 28 20.5 10
JPLF10-02 10 G1/4 17 14 28 22.5 12
JPLF10-03 10 G3/8 17 19 28 23.5 13
JPLF10-04 10 G1/2 17 24 28 24.5 14
JPLF12-01 12 G1/8 19 17 30.5 21.5 10
JPLF12-02 12 G1/4 19 17 30.5 23.5 12
JPLF12-03 12 G3/8 19 19 30.5 24.5 13
JPLF12-04 12 G1/2 19 24 30.5 25.5 14
