SNS CQS Series aluminium alloy e habeli/e le 'ngoe e sebetsang Mofuta o mosesaane oa silindara e tloaelehileng ea moea e Featured Image
  • SNS CQS Series aluminium alloy habeli/e le 'ngoe e sebetsang Mofuta o mosesaane oa pneumatic standard air cylinder

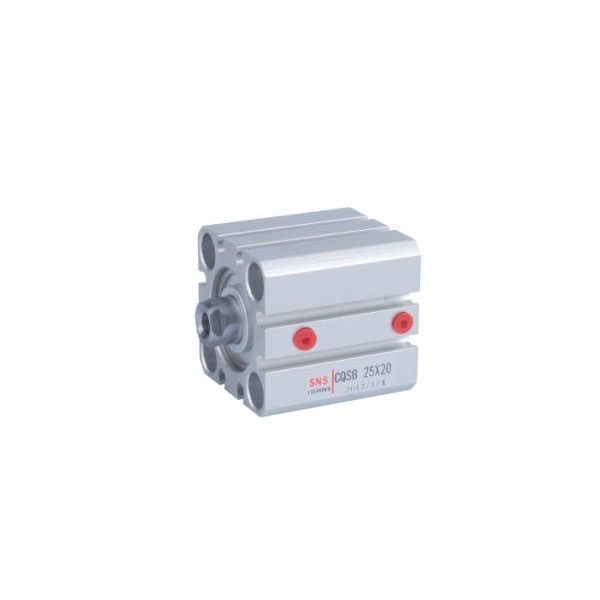

SNS CQS Series aluminium alloy habeli/e le 'ngoe e sebetsang Mofuta o mosesaane oa pneumatic standard air cylinder

Tlhaloso e Khutšoanyane:


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

3
Tlhaloso ea Setsebi

Bore Size(mm)

12

16

20

25

Mokhoa oa ho sebetsa

Ho Etsa Habeli

Media Media

Moea o hloekisitsoeng

Khatello ea Mosebetsi

0.1~0.9Mpa(kgf/cm2)

Khatello ea Bopaki

1.35Mpa(13.5kgf/cm²)

Mocheso oa Mosebetsi

-5 ~ 70℃

Mokhoa oa Buffering

Ntle

Boholo ba Boema-kepe

M5

'Mele Thepa

Aluminium Alloy

Khetho ea Sensor Switch

Mokhoa/Bore boholo

12

16

20

25
Sensor switjha

D-A93

Stroke ea Cylinder

Bore Size

(mm)

Stroke e Tloaelehileng(mm)

Max.Stroke (mm)

Stroke e lumelletsoeng (mm)

12

5

10

15

20

25

30

50

60

16

5

10

15

20

25

30

50

60

20

5

10

15

20

25

30

35

40

45

50

80

90

25

5

10

15

20

25

30

35

40

45

50

80

90

Boemo

Ka lesoba.Scerw lesoba lintlheng tse peli bakeng sa tšebeliso ea sechaba./CQSB CDASB

4

Bore Size (mm)

Mofuta oa motheo

Ho sebetsa habeli (mofuta oa mantlha)

(Ring e hahiloeng ka har'a makenete)

C

D

E

H

I

K

M

N

OA

OB

RA

RB

T

Q

A

B

F

L

Q

A

B

12

6

6

25

M3X0.5

32

5

15.5

3.5

M4X0.7

6.5

7

4

0.5

7.5

20.5+st

17+st

5

3.5

7.5

25.5+st

22+st

16

8

8

29

M4X0.7

38

6

20

3.5

M4X0.7

6.5

7

4

0.5

7.5

22+st

18.5+st

5

3.5

7.5

27+st

23.5+st

20

7

10

36

M5X0.8

47

8

25.5

5.4

M6X1.0

9

10

7

1

9

24+st

19.5+st

5.5

4.5

9

34+st

29.5+st

25

12

12

40

M6X1.0

52

10

28

5.4

M6X1.0

9

10

7

1

11

27.5+st

22.5+st

5.5

5

11

37.5+st

32.5+st

Khoele e ka ntle ea molamu (Double acting/ Ketso e le 'ngoe: Khatella morao nakong ea selemo)

5



Bore Size(mm)

C

H

L

X

12

9

M5X0.8

14

10.5

16

10

M6X1.0

15.5

12

20

12

M8X1.25

18.5

14

25

15

M10X1.25

22.5

17.5

Khoele e ka ntle ea molamu (Motšoantšisi o le mong: Tlanya morao nakong ea selemo)

6

Bore Size(mm)

C

H

L(5XY)

L(10XY)

X

12

9

M5X0.8

19

12

10.5

16

10

M6X1.0

20.5

16

12

20

12

M8X1.25

23 5

20

14

25

15

M10X1.25

27.5

25

17.5
