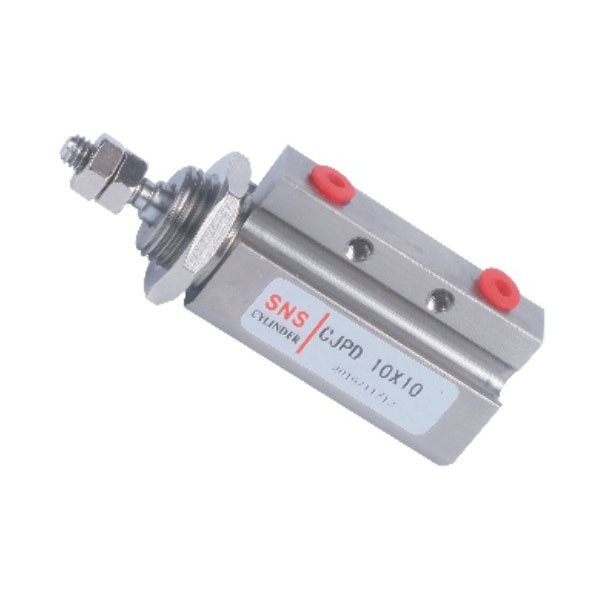

SNS CJPD Series aluminium alloy e habeli e sebetsang ka pini ea mofuta oa silinda e tloaelehileng ea moea

Tlhaloso e Khutšoanyane:

CJP Series Standard Pin Type Nale habeli Acting Mini Pneumatic Air Cylinder ke silindara e le 'ngoe e sebetsang ea khatiso ea selemo.Ka lebaka la moralo oa eona o kopanetsoeng, e ka boloka sebaka sa ho kenya ka katleho.
1. Silinda ea nale ea CJP e bonolo ebile e tenyetseha ka mefuta e fapaneng, 'me molamu oa piston o na le khoele.
2. Silinda ea nale e nyane ka molumo, e bobebe ka boima ba 'mele le ho boloka sebaka, e nang le likhetho tse peli tsa ts'ebetso e le' ngoe le e habeli.
3. Ho na le mefuta e 'meli ea mofuta oa nale cylinder e le 'ngoe e sebetsang, mofuta oa plug-in le mofuta o kentsoeng ka phanele, o nang le liphaephe tse tobileng.
4. Silinda ea nale e bonolo ebile e sebetsa, e loketseng liketsahalo tse nyenyane tsa sebaka.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

17
Tlhaloso ea Setsebi

Bore Size(mm)

6

10

15

Media Media

Moea

Mokhoa oa ho sebetsa

Ho etsa habeli

Teko e mamella khatello

10.5MPa(1.05kgf/cm²)

Khatello e Phahameng

7MPa(0.7kgf/cm²)

Min.Khatello ea ho sebetsa

1.2MPa(0.12kgf/cm²)

0.6MPa(0.06kgf/cm²)

Mokelikeli oa Mocheso

5 ~ 60 ℃

Mokhoa oa Buffering

Rubber buffer ka mahlakoreng ka bobeli

Mamello ea Leqeba

+100

Lubrication

Ha ho hlokahale

Boholo ba Boema-kepe

M5*0.8



Bore Size(mm)

Stroke e Tloaelehileng(mm)

6

5,10,15,20

10

5,10,15,20,25,30

15

5,10,15,20,25,30

Stroke ea Cylinder

Boemo

18



Bore Size (mm)

A

A'

B

B'

φD

F

GA

GB

H

J

K

MM

NN

R

W

S

Z

Phetoho ea makenete

Ea bo-5

Ea bo-10

Ea bo15

Ea bo20

30st

Ea bo-5

Ea bo-10

Ea bo15

Ea bo20

30st

C

E

P

6

7

9

14

14

3

8

6

6

17

6

8

M3X0.5

M10X1.0

7

3

30.5

35.5

40.5

45.5

-

47.5

52.5

57.5

62.5

-

16.5

10.5

20

10

10

12

15

17

5

8

6

7

20

7

8

M4X0.7

M12X1.0

8

3

30.5

35.5

40.5

45.5

55.5

50.5

55.5

60.5

65.5

75.5

20

13

21

15

12

14

20

19

6

10

6

7

24

9

8

M5X0.8

M14X1.0

10

4

30.5

35.5

40.5

45.5

55.5

54.5

59.5

64.5

69.5

79.5

24.5

15.5

23
