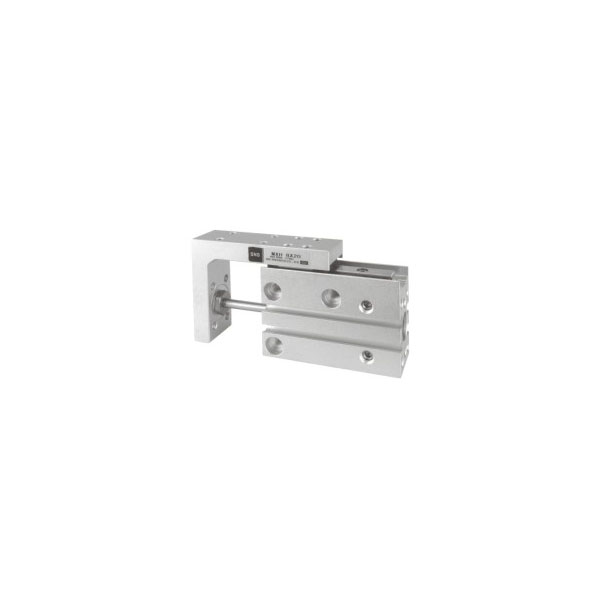

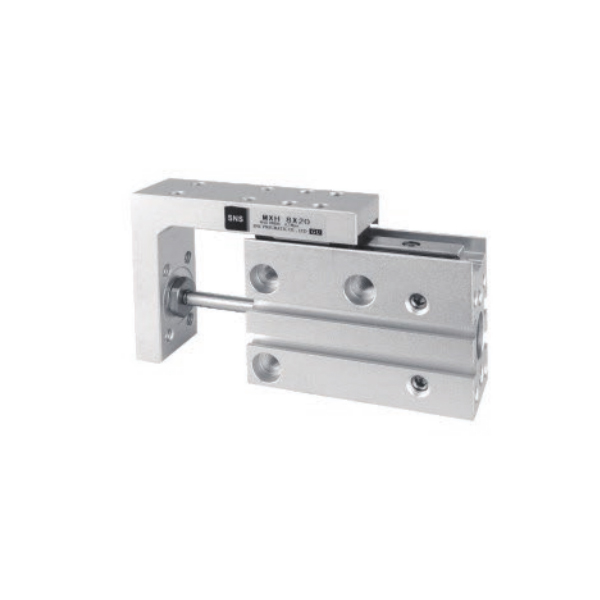

SNS MXH Series aluminium alloy double acting slider type pneumatic standard air cylinder Featured Image
  • SNS MXH Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder
  • SNS MXH Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder

SNS MXH Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder

Tlhaloso e Khutšoanyane:

1.Corrosion Resistance: Air Cylinder e Entsoe ka Aluminium ea Boleng bo Phahameng , Matla a Phahameng, Ha ho na ho Sotha, ho hanyetsa Corrosion, Bophelo ba Tšebeletso ea Nako e telele, bo tšoarella haholoanyane.
2.Lesale la ho Tiisa le Ntle: ka Ring e Ntle ea ho Tiisa, Moqomo oa Moea o sebetsa hantle haholo ho Thibela ho Dutla ha Piston, ho Ntlafatsa Ts'ebetso ea ho Tiisa.
3.E sebelisoa ka ho Fetisisa ho Thepa e Ikemetseng ho Indasteri ea Leseli, Indasteri ea Lik'hemik'hale, Indasteri ea Textile, Indasteri ea Elektronike le Mechini.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Kenya mela e tataisang ho ntlafatsa ho nepahala ho sa potolohang ha piston rod

Mofuta o tloaelehileng o na le makenete e hahelletsoeng, kahoo switjha ea makenete e ka kenngoa

E ka kopanngoa le phepelo ea moea ho tloha mahlakoreng a mararo.

Phetoho ea Magnetic e ka kenngoa mahlakoreng ka bobeli.

Mofuta o tloaelehileng o na le li-bumpers tsa rabara ka mahlakoreng ka bobeli.

Torque e ka ba makhetlo a tšeletseng ho feta silindara ea letoto la MXU.

Khoutu ea Odara

25
Tlhaloso ea Setsebi

Bore Size(mm)

6

6

16

20

Tataiso e Bearing Bophara

5

7

9

12

Mokelikeli o sebetsang

Moea

Mokhoa oa ho sebetsa

Ho etsa habeli

Min.Khatello ea ho sebetsa

0.15MPa

0.06MPa

0.05Mpa

Khatello e Phahameng

0.07MPa

Mokelikeli oa Mocheso

Ntle le Phetoho ea Magnetic: -10~+7O℃

Ka Phetoho ea Magnetic: 10 ~ + 60 ℃（Ha ho leqhoa）

Lebelo la Piston

50~500 mm/s

Lumella Momentum J

0.0125

0.025

0.05

0.1

*Lubrication

Ha ho hlokahale

Buffering

Ka li-bumpers tsa rabara ka mahlakoreng ka bobeli

Mamello ea Stroke(mm)

+1.00

Khetho ea Magnetic Switch

D-A93

Boholo ba Boema-kepe

M5x0.8

lf e hloka oli.ka kopo sebelisa turbine No.1 oil ISO VG32.
Khetho ea ho fetoha ha Stroke / Magnetic

Bore Size(mm) Stroke e Tloaelehileng(mm) Ho Otloloha Mount Magenetic Switch
6 5,10,15,20,25,30,40,50,60 A93(V)
10 A96(V) A9B(V)
16 M9N(V) F9NW
20 M9P(V)

Tlhokomeliso) Litlhaloso tsa phetoho ea makenete le likarolo li nahanisisa ka letoto la li-switch tsa makenete, qetellong ea mefuta ea li-switches tsa makenete, tse nang le letšoao la bolelele ba terata: Nil

-0.5m, L-3m, Z-5m, mohlala: A93L

27
Kopo

26



28 29



Stroke (mm)

J

LA

LB

LT

NS

5

4

10

-

42

14

10

4

10

-

42

14

15

4

20

-

52

24

20

4

20

-

52

24

25

4

30

-

62

30

30

4

30

-

62

30

40

6

20

20

72

45

50

6

25

25

82

55

60

6

30

30

92

60

30 31

Stroke(mm)

J

LA

LB

LT

NS

5

4

10

-

49

14

10

4

10

-

49

14

15

4

20

-

59

24

20

4

20

-

59

24

25

4

30

-

69

30

30

4

30

-

69

30

40

6

20

20

79

45

50

6

25

25

89

55

6°

6

30

30

99

60

32 33



Stroke (mm)

J

LA

LB

LT

NS

5

4

10

-

58

20

10

4

10

-

58

20

15

4

20

-

68

30

20

4

20

-

68

30

25

4

30

-

78

40

30

4

30

-

78

40

40

6

20

20

88

50

50

6

25

25

98

60

60

6

30

30

108

60

34 35

Stroke (mm)

J

LA

LB

LT

NS

5

4

10

-

64

20

10

4

10

-

64

20

15

4

20

-

74

30

20

4

20

-

74

30

25

4

30

-

84

40

30

4

30

-

84

40

40

6

20

20

94

50

50

6

25

25

104

70

60

6

30

30

114

70
