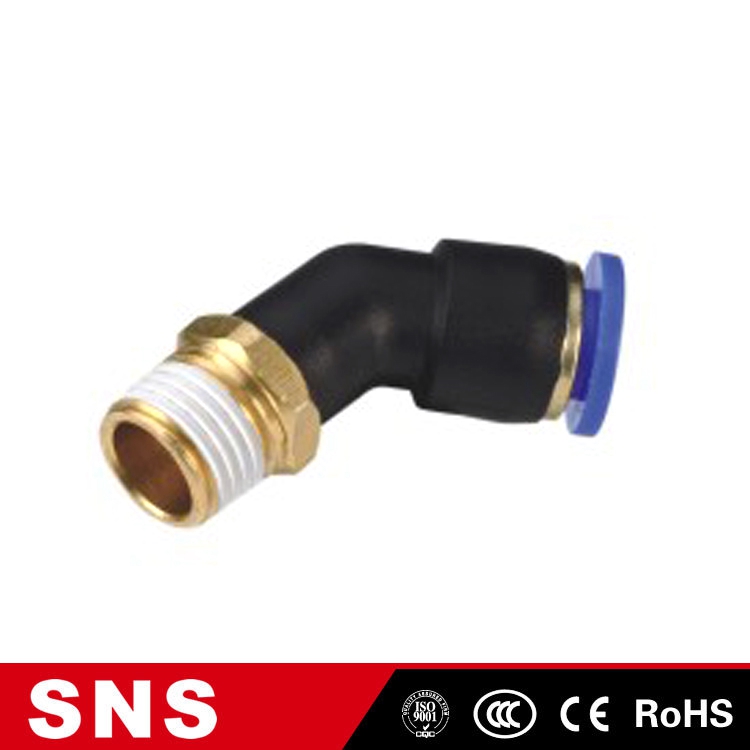

SNS SPL (45 degree) Series pneumatic polasetiki setsoe male thread pipe tube quick fitting Featured Image

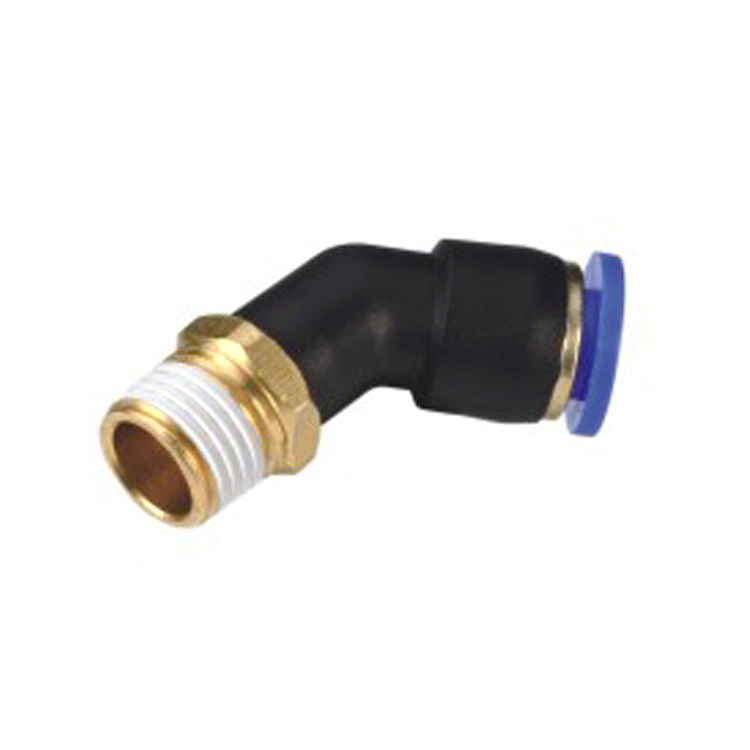

SNS SPL (45 degree) Series pneumatic polasetiki setsoe monna khoele phala tube ka potlako ho loketse

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

Metric Pipe	ΦD	R	H	A	B	C	E
SPL4-M5(45°)	4	M5	10	12.5	10.5	4.5	18
SPL4-01(45°)	4	PT1/8	10	12.5	11	7	18
SPL4-02(45°)	4	PT1/4	14	12.5	13.5	9	18
SPL4-03(45°)	-	-	-	-	-	-	-
SPL4-04(45°)	-	-	-	-	-	-	-
SPL6-M5(45°)	6	M5	12	11.5	11	4.5	19
SPL6-01(45°)	6	PT1/8	12	11.5	11.5	7	19
SPL6-02(45°)	6	PT1/4	14	11.5	14	9	19
SPL6-03(45°)	6	PT3/8	17	11.5	15	10	19
SPL6-04(45°)	6	PT1/2	21	11.5	16.5	11	19
SPL8-M5(45°)	-	-	-	-	-	-	-
SPL8-01(45°)	8	PT1/8	14	11.5	13	7	22
SPL8-02(45°)	8	PT1/4	14	11.5	15	9	22
SPL8-03(45°)	8	PT3/8	17	11.5	15.5	10	22
SPL8-04(45°)	8	PT1/2	21	11.5	17	11	22
SPL10-01(45°)	10	PT1/8	17	18.5	13.5	7	26.5
SPL10-02(45°)	10	PT1/4	17	18.5	15.5	9	26.5
SPL10-03(45°)	10	PT3/8	17	18.5	15.5	10	26.5
SPL10-04(45°)	10	PT1/2	21	18.5	16.5	11	26.5
