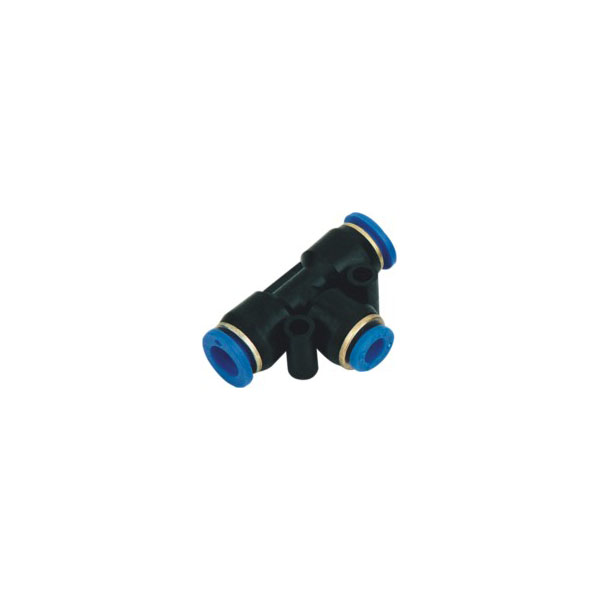

SNS SPEN Series pneumatic touch one bophara bo fapaneng 3 tsela ea ho fokotsa mofuta oa tee ea polasetiki e potlakisang sehokelo sa moea.

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

SEBELISA

8

6

Letoto

pipe Diameter φD

pipe Diameter φD2

6

4

8

6

10

8

12

10

14

12

16

14

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

SEBELISA

Pipe ea Inch

Metric Pipe

φD

ΦD2

B

E

F

SPEN1/4-5/32

SPEN6-4

6

4

41

20

15

3.5

SPEN5/16-1/4

SPEN8-6

8

6

45

21.5

18

4.5

SPEN3/8-5/16

SPEN10-8

10

8

52

24.5

20

4.5

SPEN1/2-3/8

SPEN12-10

12

10

59

28.5

24.5

5

-

SPEN16-12

16

12

70

34.5

33

4

SPEN5/16-5/32

SPEN8-4

8

4

46

22

20

4.5

SPEN3/8-1/4

SPEN10-6

10

6

57

27

24

4

SPEN1/2-5-16

SPEN12-8

12

8

59

28.5

27

5

Tlhokomeliso: NPT, PT, G khoele ke boikhethelo
'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mefuta e khethehileng ea li-fittings le eona e ka etsoa ka mokhoa o ikhethileng
