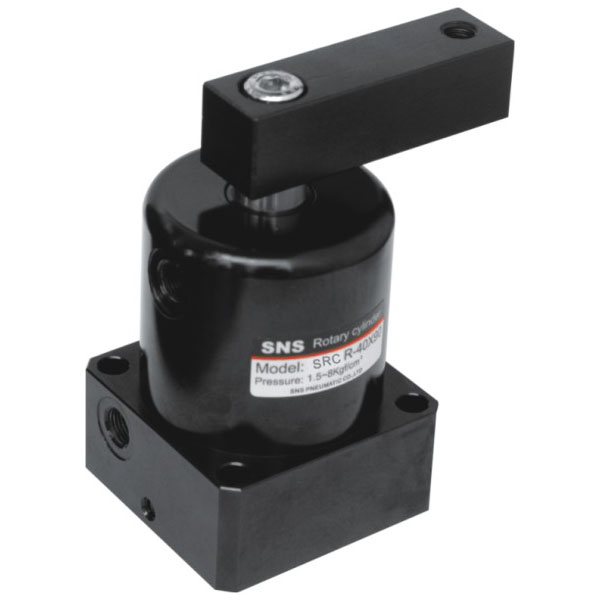

SNS SFRC Series phepelo ea feme ea rotary hydraulic clamping pneumatic air cylinder

Tlhaloso e Khutšoanyane:

1.Ho boloka le ho sireletsa tikoloho ka sekhahla se seholo se tlase, polokeho le ho nepahala

2.Ka sebetsa ka khatello e tlase, bohlale bakeng sa ho tima le ho tima, ts'ebetso e ntle ea tiiso

2.Ketso e le 'ngoe le mefuta ea liketso tse habeli bakeng sa khetho ea hau

4. E sebelisoa haholo lijong, mochining, indastering, abstersion, lanification, khatiso le libaka tse ling.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Setsebi

Morero/Bore Size(mm)

25

32

40

50

63

Mofuta oa ho sebetsa

Ho etsa habeli

Mokelikeli

Moea

Khatello Range Kgf/cm² (Kpa)

1.5~9.5(150-950)

Mocheso ℃

0-60

WorkingSpeedmm/sec

30 ~ 500

Rotary Stroke mm

11

13

15

Down Stroke mm

11

13

15

Phetoho Angie

90 ° e ka ba customizea (0 *, 45 *, 60 *)

Tataiso Of Rotation

Etelehela ka ho le letšehali (ho tloha ho le letona ho ea ho le letšehali) -L;retelehela ka ho le letona (ho tloha ka ho le letšehali Io ka ho le letona) -R

Buffering

Mosima oa Rubber

Lubrication

Phepelo ea mahala

Boholo ba boema-kepe

M5X0.8

M5X0.8

Khoutu ea Odara

77

Boemo

78



Bore Size(mm)

ST

A

A1

A2

B

C

D1

E1

F

G1

I

J

K

L

M

N

Q

R

S

T

U

N1

N2

φ25

22

67

89

(106)

65

23

16

M6X1

6

50

φ35

38

30

φ4.5

M5

35

φ6.5

φ11

φ14

5

8.5

16

15

φ32

26

82

108

(128)

78

28

19

M8X1.25

8

70

φ46

50

40

φ5.5

G1/8

50

φ9

φ14

φ16

7

9.5

22

14

φ40

26

82

108

(128)

78

28

19

M8X1.25

8

75

φ55

60

48

φ6.5

G1/8

55

φ9

φ14

φ16

7

9.5

26

14

φ50

30

94

124

(150.5)

90

31

25

M10X1.5

10

85

φ65

70

57

φ6.5

G1/8

60

φ11

φ7

φ20

9

12.5

34

16.5

φ63

30

94

124

(150.5)

90

31

25

M10X1.5

10

95

φ78

83

67

φ9

G1/8

70

φ11

φ17

φ20

9

12.5

40

17
