China SNS NRC Series pneumatic male threaded rotary tube sehokedi potolohang phala loketseng Moetsi le Mofani |SNS Pneumatic

SNS NRC Series pneumatic male threaded rotary tube sehokelo se potolohang phala e loketseng Featured Image

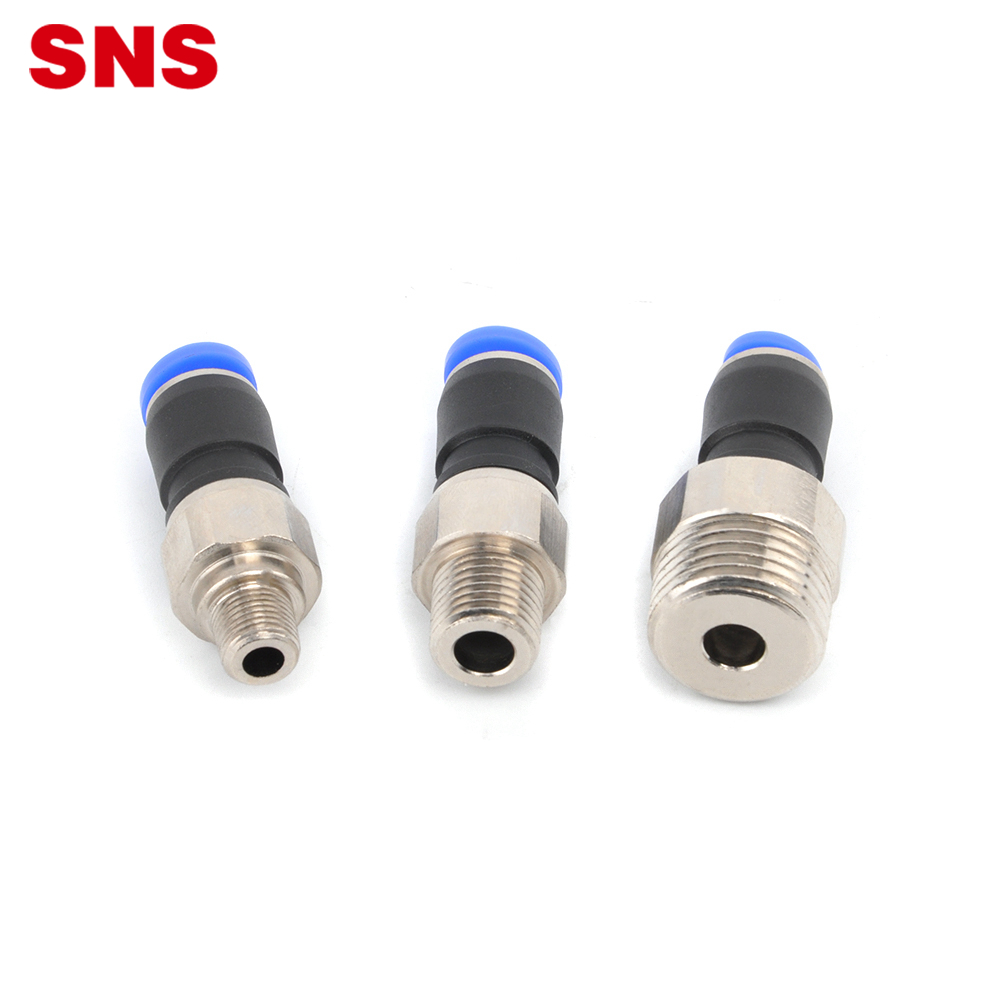

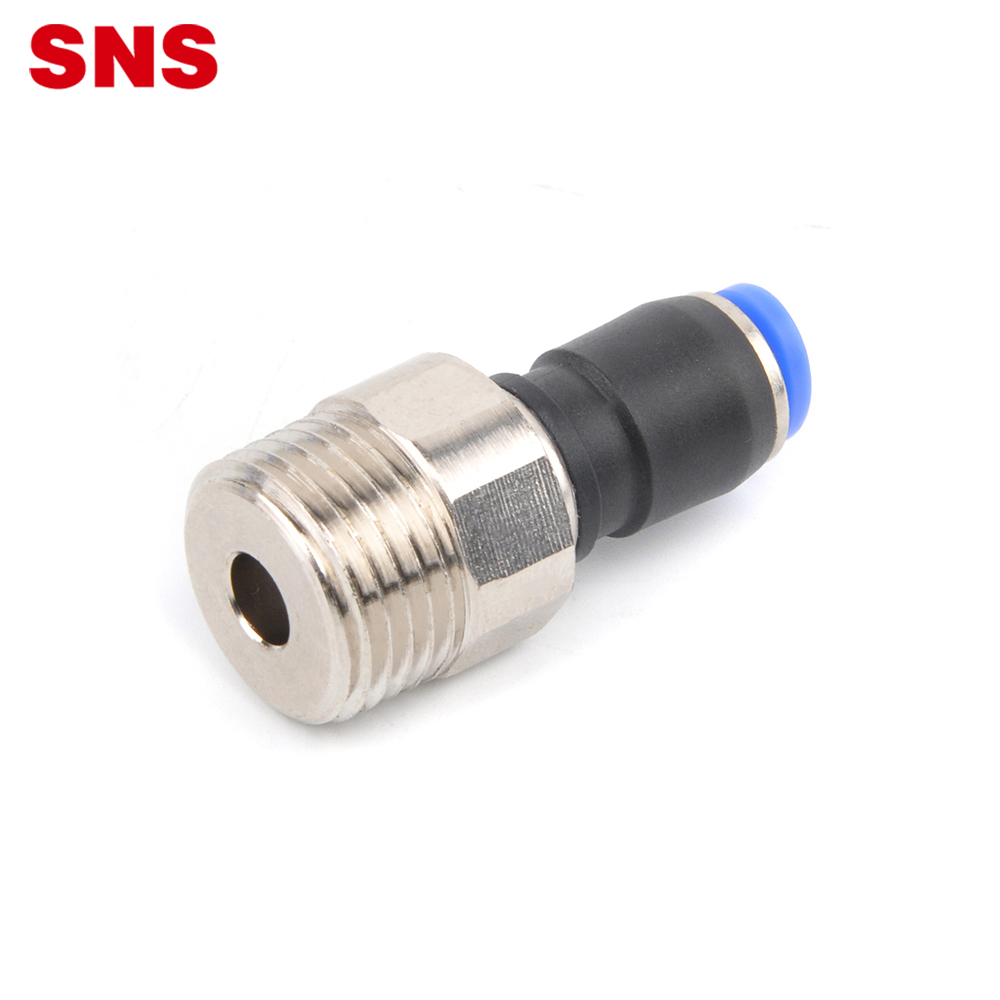

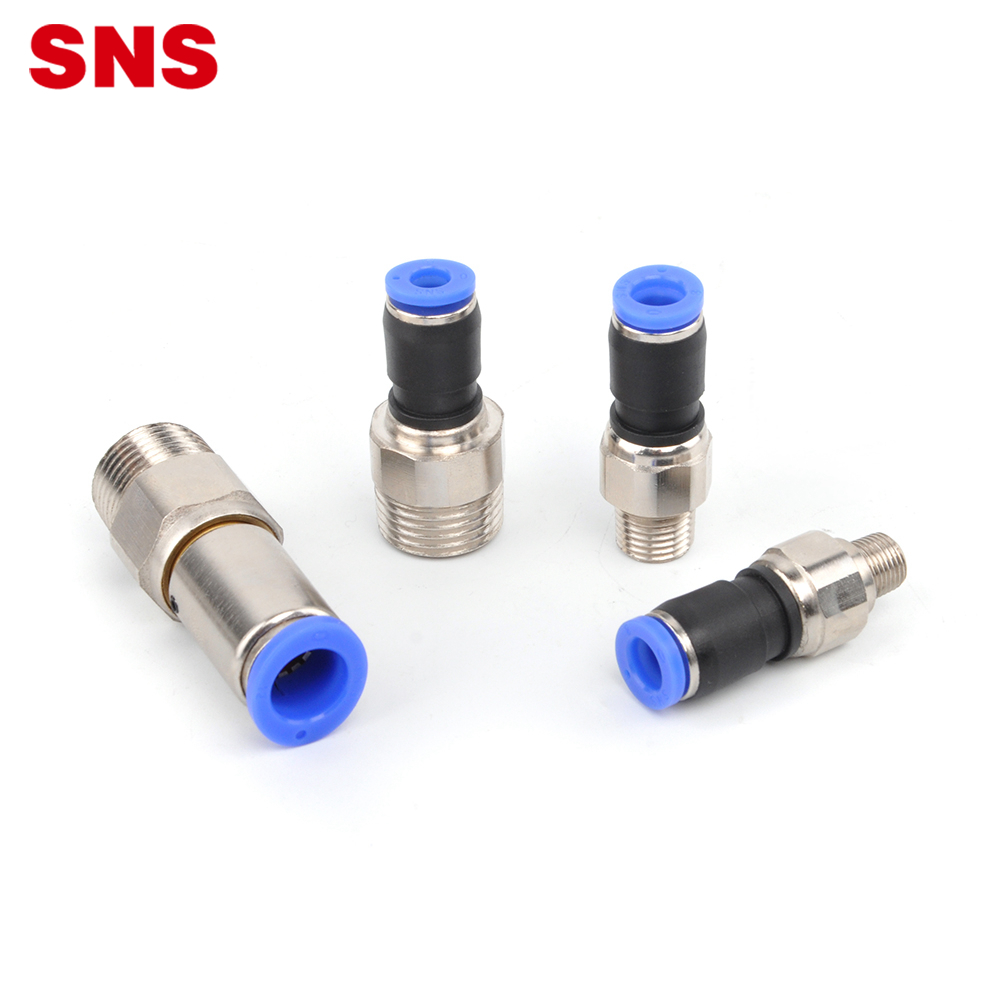

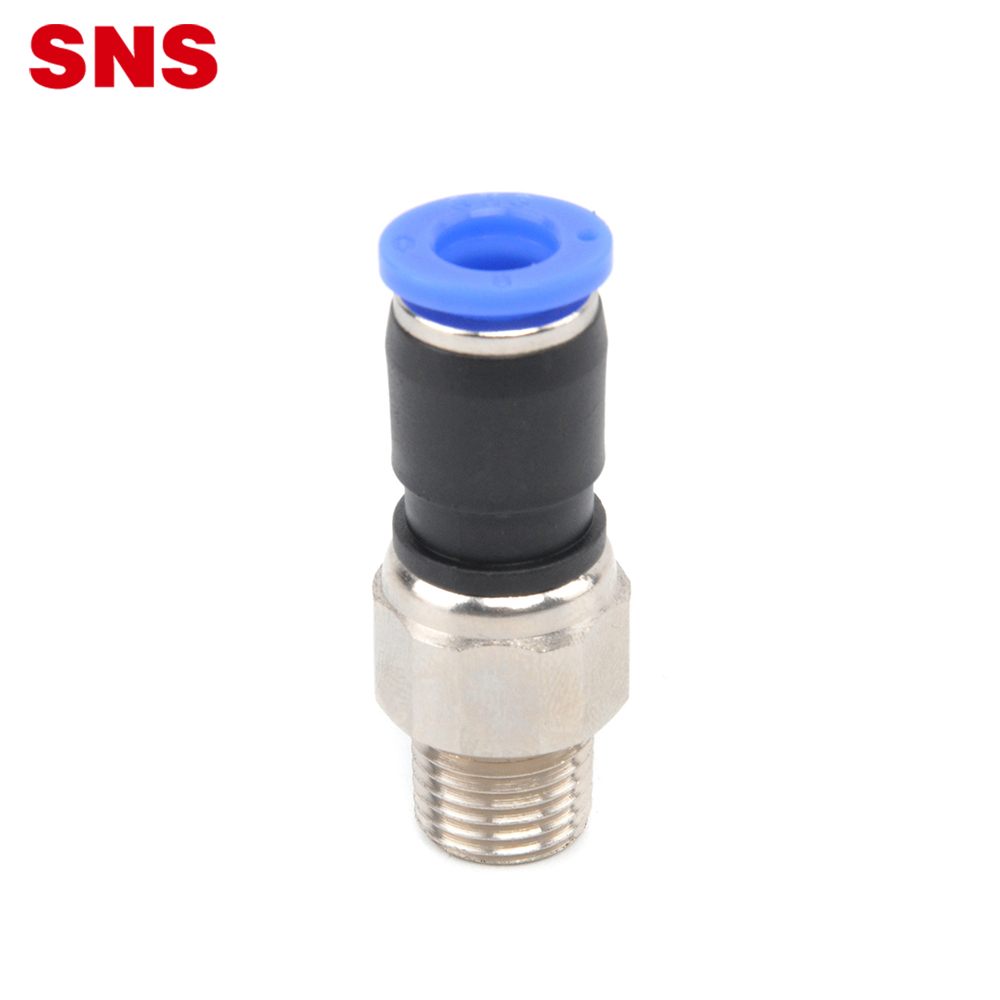

SNS NRC Series pneumatic male threaded rotary tube sehokelo potolohang phala ho loketse

Tlhaloso e Khutšoanyane:

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

Sebopeho :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.
Lisebelisoa tsa koporo li etsa hore lisebelisoa li be bobebe ebile li kopane.
Sleeve e nang le boholo bo fapaneng bakeng sa khetho e bonolo haholo ho hokahanya le ho e khaola.

Mokelikeli	Compress Air, haeba e le metsi ka kopo kopa tšehetso ea tekheniki
Khatello ea Bopaki	1.32Mpa (1.35kgf/cm2)
Sebetsa Khatello Range	0~0.9Mpa (0~9.2kgf/cm2)
Ambient Mocheso	0 ~ 60℃
Pipe e sebetsang	PU Tube
Lintho tse bonahalang	Koporo

Mohlala	ØD	R	F	C	A	B	H	RPM
NRC4-M5	4	M5	33	23.5	5	45	12	500
NRC4-M6	4	M6	33	23.5	6	46.5	12	500
NRC4-01	4	PT1/8	33	23.5	8	46.5	12	500
NRC6-M5	6	M5	25	18.5	5	44.5	14	500
NRC6-M6	6	M6	25	18.5	6	47.5	14	500
NRC6-M8	6	M8	25	18.5	8	46.5	14	500
NRC6-01	6	PT1/8	25	18.5	8	44.5	14	500
NRC6-02	6	PT1/4	25	18.5	11	47	14	500
NRC6-03	6	PT3/8	25	18.5	11	47	14	500
NRC8-M5	8	M5	33	23.5	5	45	17	400
NRC8-01	8	PT1/8	33	23.5	8	47.5	17	400
NRC8-02	8	PT1/4	33	23.5	11	47.5	17	400
NRC8-03	8	PT3/8	33	23.5	11	48	17	400
NRC8-04	8	PT1/2	33	23.5	11	48	17	400
NRC10-02	10	PT1/4	30	22	11	61	22	300
NRC10-03	10	PT3/8	30	22	11	61	22	300
NRC10-04	10	PT1/2	30	22	13	61	22	300
NRC12-02	12	PT1/4	30	32	11	62	24	250
NRC12-03	12	PT3/8	30	32	12	62	24	250
NRC12-04	12	PT1/2	30	32	13	63	24	250
