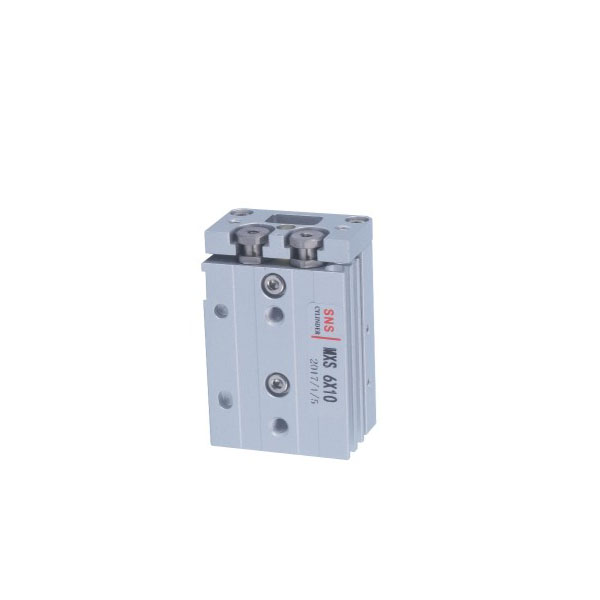

SNS MXS Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder Featured Image
  • SNS MXS Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder

SNS MXS Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder

Tlhaloso e Khutšoanyane:


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Stroke e fetolehang ke khetho (0-5mm).
Moralo oa li-cylinder tse peli, matla a tsoang habeli, molumo o monyane.
Motsoako oa cylinder le tafole ea ho sebetsa e fokotsa boholo ba kakaretso.Ka moralo oa tataiso ea lirolara, ha ho lekhalo lipakeng tsa silinda le tafole ea ho sebetsa, e nang le likhohlano tse nyane mme e lekana hantle le kopano.
Mahlakore a mararo a ka kenngoa.
Mofuta oa makenete o hahelletsoeng, o ka kenngoa switch ea makenete.

Tlhaloso ea Setsebi

Mohlala

MXS 6

MXS8

MXS 12

MXS 16

MXS 20

MXS 25

Bore Size(mm)

φ6×2

(E lekanangφ8)

φ8×2

(E lekanangφ11)

φ12×2

(E lekanangφ17)

φ16×2

(E lekanangφ22)

φ20×2

(E lekanangφ28)

φ25×2

（E lekanang φ35）

Mokelikeli o sebetsang

Moea

Mokhoa oa ho sebetsa

Ho etsa habeli

Khatello e Phahameng

0.7MPa

Min.Khatello ea ho sebetsa

0.15MPa

Mokelikeli oa Mocheso

-10~+60℃ (Ha ho leqhoa)

Lebelo la Piston

50 ~ 500mm/s

Buffering

Mosamo oa rabara(E tloaelehileng)

Khetho ea Magnetic Switch

D-A93

*Lubrication

Ha ho hlokahale

Boholo ba Boema-kepe

M3x0.8

M5x0.8

Rc1/8

* Bakeng sa ho tlotsa oli, ka kopo sebelisa oli ea turbine No.1 ISO VG32.
Khoutu ea Odara

55
Motsoako oa silinda le tafole

56
Kopo

57
Boemo

58 59

Mohlala

F

N

G

H

NN

I

J

K

M

Z

ZZ

MXS6-10

20

4

6

25

2

10

17

22.5

42

41.5

48

MXS6-20

30

4

6

35

2

10

27

32.5

52

51.5

58

MXS6-30

20

6

11

20

3

7

40

42.5

62

61.5

68

MXS6-40

28

6

13

30

3

19

50

52.5

84

83.5

90

MXS6-50

38

6

17

24

4

25

60

62.5

100

99.5

106

60 61

Mohlala

F

N

G

H

NN

I

J

K

M

Z

ZZ

MXS8-10

25

4

9

28

2

13

19.5

23.5

49

48.5

56

MXS8-20

25

4

12

30

2

8.5

29

33.5

54

53.5

61

MXS8-30

40

4

13

20

3

9.5

39

43.5

65

64.5

72

MXS8-40

50

4

15

28

3

10.5

56

53.5

83

82.5

90

MXS8-50

38

6

20

23

4

24.5

60

63.5

101

100.5

108

MXS8-75

50

6

27

28

5

38.5

96

88.5

151

150.5

158

62 63 64

Mohlala

F

N

G

H

NN

I

J

K

M

Z

ZZ

MXS 12-10

35

4

15

40

2

10

40

26.5

71

70

80

MXS 12-20

35

4

15

40

2

10

40

36.5

71

70

80

MXS 12-30

35

4

15

40

2

10

40

46.5

71

70

80

MXS 12-40

50

4

17

25

3

10

52

56.5

83

82

92

MXS 12-50

35

6

15

36

3

22

60

66.5

103

102

112

MXS12-75

55

6

25

36

4

43

85

91.5

149

148

158

MXS12-100

65

6

35

38

5

52

130

116.5

203

202

212

65 66

Mohlala

F

N

G

H

NN

I

J

K

M

Z

ZZ

MXS16-10

35

4

16

40

2

10

40

29

76

75

87

MXS16-20

35

4

16

40

2

10

40

39

76

75

87

MXS 16-30

35

4

16

40

2

10

40

49

76

75

87

MXS 16-40

40

4

16

50

2

10

50

59

86

85

97

MXS16-50

30

6

21

30

3

15

60

69

101

100

112

MXS16-75

55

6

26

35

4

40

85

94

151

150

162

MXS16-100

65

6

39

35

5

55

118

119

199

198

210

MXS16-125

70

8

19

35

7

68

155

144

249

248

260

67 68

Mohlala

F

FF

N

G

H

NN

I

J

K

M

Z

ZZ

MXS20-10

50

40

4

15

45

2

10

44

31

83

81.5

97

MXS20-20

50

40

4

15

45

2

10

44

41

83

81.5

97

MXS20-30

50

40

4

15

45

2

10

44

51

83

81.5

97

MXS20-40

60

50

4

15

55

2

10

54

61

93

91.5

107

MXS20-50

35

35

6

15

35

3

10

69

71

108

106.5

122

MXS20-75

60

60

6

19

35

4

10

108

96

147

145.5

161

MXS20-100

70

70

6

37

35

5

58

113

121

200

198.5

214

MXS20-125

70

70

8

41

38

6

70

155

146

254

252.5

268

MXS20-150

80

80

8

19

44

7

87

JI 90

171

306

304.5

320

69 70

Mohlala

F

FF

N

G

H

NN

I

J

K

M

Z

ZZ

MXS25-10

50

40

4

22

45

2

12

47

35

92

90.5

108

MXS25-20

50

40

4

22

45

2

12

47

45

92

90.5

108

MXS25-30

50

40

4

22

45

2

12

47

55

92

90.5

108

MXS25-40

60

50

4

22

55

2

12

57

65

102

100.5

118

MXS25-50

35

35

6

20

35

3

12

70

75

115

113.5

131

MXS25-75

60

60

6

26

35

4

33

90

100

156

154.5

172

MXS25-100

70

70

6

32

35

5

50

114

125

197

195.5

213

MXS25-125

75

75

8

40

38

6

67

155

150

255

253.5

271

MXS25-150

80

80

8

30

40

7

82

180

175

295

293.5

311

71 72

Mohlala

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

10

20

30

40

50

75

100

125

150

MXS6

24

10

28

19

0.5

M3x0.5

22

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

5.6

M3X0.5

5.5

12

32

8

11.5

MXS8

30

12

28.5

22.5

0.5

M4x0.7

22.5

6.5

9

39

44

55

73

91

141

-

-

-

M3X0.5

10

15.5

3

6.5

M5X0.8

6.5

15

40

12

13.5

MXS12

38

16

37

30

0.5

M5x0.8

29

9.5

10.5

59.5

59.5

59.5

71.5

91.5

137.5

191.5

-

-

M5X0.8

14.5

20

3

6.5

M5X0.8

9.5

20

50

12

18..7

MXS16

48

20

41

37.5

0.5

M6x1

30

12

13

62

62

62

72

87

137

185

235

-

M5X0.8

18

25

3

6.5

M5X0.8

12

26

62

12

23.5

MXS20

58

25

44.5

45.5

0.5

M6x1

30.5

15

15.5

68.5

68.5

68.5

78.5

93.5

132.5

185.5

239.5

291.5

Rc1/8

20

30

11.5

Rc1/8

15

32

76

20

29.5

MXS25

70

31

50

55

0.5

M8X1.25

35

18

18

76

76

76

86

99

140

181

239

279

RC1/8

25.5

35

11.5

Rc1/8

18

40

92

20

35.5
