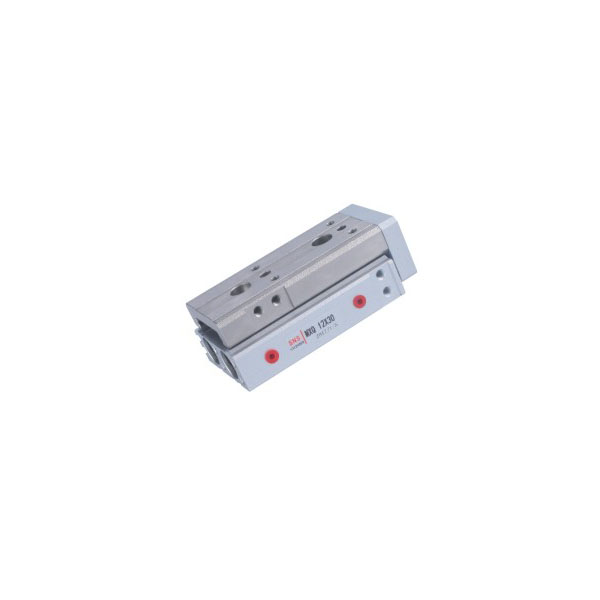

SNS MXQ Series aluminium alloy double acting slider mofuta oa pneumatic standard air cylinder

Tlhaloso e Khutšoanyane:

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

E nyane, e matsutla-tsutla, e nepahetse haholo
Motsoako oa li-cylinder tse nyane le mofuta oa selikalikoe oa linear guide linearism: 30m, e otlolohileng: 50m
Moralo oa li-cylinder tse peli, matla a tsoang habeli
Torque e kholo ea mojaro
Stroke e feto-fetohang (e nang le sesebelisoa sa ho fetola setorouku)
Li-switches tsa makenete li ka kenngoa

Tlhaloso ea Setsebi

Mohlala	MXQ 6	MXQ 8	MXQ 12	MXQ 16	MXQ 20	MXQ 25
Bore Size(mm)	φ6×2 (E lekanang le φ8)	φ8×2 (E lekanangφ11)	φ12×2 (E lekanangφ17)	φ16×2 (E lekanangφ22)	φ20×2 (E lekanangφ28)	φ25×2 (E lekanangφ35)
Mokelikeli o sebetsang	Moea
Mokhoa oa ho sebetsa	Ho etsa habeli
Khatello e Phahameng	0.7MPa
Min.WormorenaKhatello	0.15MPa
Fluid Mocheso	-10~+60℃ (Ha ho leqhoa)
Lebelo la Piston	50 ~ 500mm/s(Metal stopper:50 ~ 200mm/s)
Buffering	Mosamo oa rabara(E Tloaelehileng)、Sehokelo sa ho thothomela、Ntle le(Metal stopper)
Mamello ea Stroke(mm)	+10
Magnetic Switjha Selection	D-A93
*Lubrication	Ha ho hlokahale
Boholo ba Boema-kepe	M5x0.8				Rc1/8

Khoutu ea Odara

Mehlala ea ts'ebeliso

Motsoako oa silinda le tafole

Mohlala	F	N	G	H	NN	GA	HA	I	J	K	M	Z	ZZ
MXQ6-10	22	4	6	23	2	13	16	9	17	21.5	42	41.5	48
MXQ6-20	25	4	13	26	2	13	26	9	27	31.5	52	51.5	58
MXQ6-30	21	6	-	-	3	29	20	9	37	41.5	62	61.5	68
MXQ6-40	26	6	11	28	3	39	28	16	48	51.5	80	79.5	86
MXQ6-50	27	6	21	28	3	49	28	9	65	61.5	90	89.5	96

Mohlala	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ8-10	25	4	7	25	2	13	19	11	17	23.5	-	4	46	45.6	53
MXQ8-20	25	4	14	28	2	14	28	10	28	33.5	-	4	56	55.5	63
MXQ8-30	26	6	-	-	3	29	27	12	40	43.5	-	4	70	69.5	77
MXQ8-40	32	6	8	31	3	39	31	14	52	53.5	-	4	84	83.5	91
MXQ8-50	46	6	8	29	4	37	58	13	78	63.5	82.5	8	109	108.5	116
MXQ8-75	50	6	31	30	4	61	60	12	105	88.5	112.5	8	135	134.5	142

Mohlala	F	N	G	H	NN	GA	HA	1	J	K	KA	NA	M	Z	ZZ
MXQ12-10	28	4	18	32	2	18	32	12	34	26.5	-	4	67	66	76
MXQ12-20	28	4	18	32	2	18	32	12	34	36.5	-	4	67	66	76
MXQ12-30	38	4	20	40	2	20	40	14	42	46.5	-	4	77	76	86
MXQ12-40	34	6	-	-	3	38	39	15	58	56.5	-	4	94	93	103
MXQ12-50	34	6	9	39	3	48	39	13	70	66.5	-	4	104	103	113
MXQ12-75	36	8	23	36	4	59	72	17	110	91.5	117.5	8	148	147	157
MXQ12-100	36	10	12	36	5	84	72	17	135	116.5	142.5	8	173	172	182

Mohlala	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ16-10	38	4	18	39	2	18	39	12	40	28	-	4	78	77	89
MXQ16-20	38	4	18	39	2	18	39	12	40	38	-	4	78	77	89
MXQ16-30	48	4	19	48	2	19	48	12	50	48	-	4	88	87	99
MXQ16-40	58	4	19	58	2	19	58	12	63	58	-	4	98	97	109
MXQ16-50	40	6	-	-	3	48	45	20	68	68	91	8	114	113	125
MXQ16-75	46	6	21	52	3	73	52	15	105	93	123	8	146	145	157
MXQ16-100	44	8	36	44	4	80	88	18	145	118	166	8	189	188	200
MXQ16-125	44	10	17	44	5	105	88	23	165	143	191	8	214	213	225

Mohlala	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ20-10	45	4	22	46	2	18	50	16	46	31	-	4	94	92.5	108
MXQ20-20	40	4	22	46	2	18	50	16	46	41	-	4	94	92.5	108
MXQ20-30	48	4	22	46	2	18	50	16	46	51	-	4	94	92.5	108
MXQ20-40	58	4	22	56	2	22	56	16	56	61	-	4	104	102.5	118
MXQ20-50	42	6	-	-	3	48	48	18	72	71	-	4	122	120.5	136
MXQ20-75	55	6	17	56	3	73	56	23	100	96	126	8	155	153.5	169
MXQ20-100	50	8	18	56	4	74	112	25	155	121	183	8	212	210.5	226
MXQ20-125	55	8	37	59	4	96	118	18	190	146	211	8	240	238.5	254
MXQ20-150	62	8	56	62	4	118	124	21	215	171	239	8	268	266.5	282

Mohlala	F	N	G	H	NN	GA	HA	I	J	K	KA	NA	M	Z	ZZ
MXQ25-10	55	4	23	55	2	23	55	16	56	35	-	4	107	105.5	123
MXQ25-20	46	4	23	55	2	23	55	16	56	45	-	4	107	105.5	123
MXQ25-30	55	4	23	55	2	23	55	16	56	55	-	4	107	105.5	123
MXQ25-40	65	4	23	65	2	23	65	16	66	65	-	4	117	115.5	133
MXQ25-50	75	4	32	80	2	32	80	16	90	75	-	4	141	139.5	157
MXQ25-75	60	6	-	-	3	72	65	31	100	100	-	4	166	164.5	182
MXQ25-100	48	8	44	44	4	88	88	20	150	125	170	8	205	203.5	221
MXQ25-125	60	8	31	66	4	97	132	18	205	150	223	8	258	256.5	274
MXQ25-150	65	8	56	66	4	122	132	18	230	175	248	8	283	281.5	299

Ka Shock Absorber

Mohlala	Fetola Stroke Range		A	B	C	D	E	F	G	H
Mohlala	Pele	Ka morao	A	B	C	D	E	F	G	H
MXQ8	20	20	11.5	25	2	23	8	32	2	25
MXQ12	18	18	10	29.5	-	18	10	30	-	29.5
MXQ16	22	22	12.5	36.5	-	20	12	34	-	36.5
MXQ20	35	35	16	46.5	0.5	35	13	54	0.5	46.5
MXQ25	35	35	16.5	54.5	-	29	15	52	-	54.5

Ka Buffer

Mohlala	A	B	C	D	E	F	G	H	I	J
MXQ6	30	16	8	4	8	19.2	0.3	28	22	M3*0.5Botebo5
MXQ8	34	24	12	5	10	22.2	0.3	28.5	22.5	M4*0.7Botebo6
MXQ12	43	29	14.5	5	13	29.2	0.3	37	29	M4*0.8Botebo8
MXQ16	54	42	21	6.5	15.5	35.7	0.3	41	30	M6*1Botebo10
MXQ20	60	35	17.5	7	18	42.5	0.5	44.5	30.5	M6*1Botebo10
MXQ25	74	44	22	6.5	21.5	49.5	0.5	50	35	M8*1.25Botebo15

Ka End Lock

Mohlala	A	B	C	D	E	P
MXQ8	4	17.5	40.5	16	3	M5*0.8
MXQ12	5	22	51	22	3	M5*0.8
MXQ16	6	29	65.5	25	3	M5*0.8
MXQ20	8	34	78.5	33	-	Rc1/8
MXQ25	8	40	94	37	-	Rc1/8

Mofuta oa Axial Piping

Mohlala	A	B	C	D	E	F	P
MXQ6	12	12.5	6.3	26	5.5	12	M5x0.8
MXQ8	12	14.5	6.3	31	6.5	15	M5x0.8
MXQ12	13	16.5	6.3	41	8.5	20	M5x0.8
MXQ16	14	21	6.3	52	11	26	M5x0.8
MXQ20	20	26	11.5	65	14	32	Rc1/8
MXQ25	20	32	11.5	79	17	40	Rc1/8
