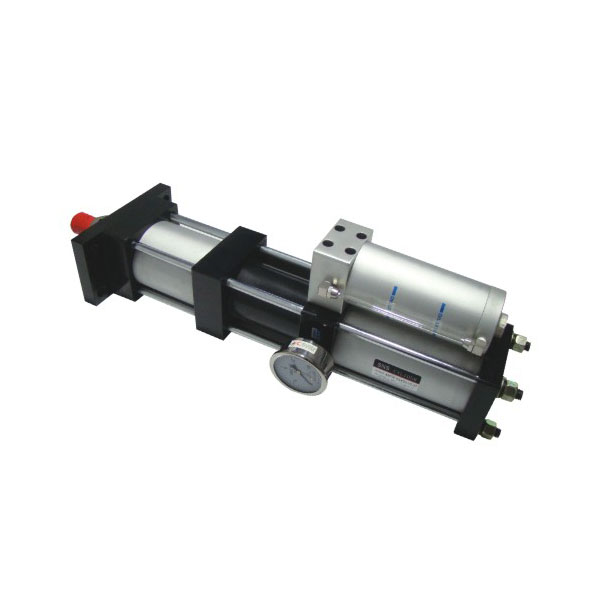

SNS MPTF/MPTS Series moea le mokelikeli booster mofuta moea silindara le makenete

Tlhaloso e Khutšoanyane:

1.Corrosion Resistance: Air Cylinder e Entsoe ka Aluminium ea Boleng bo Phahameng , Matla a Phahameng, Ha ho na ho Sotha, ho hanyetsa Corrosion, Bophelo ba Tšebeletso ea Nako e telele, bo tšoarella haholoanyane.
2.Lesale la ho Tiisa le Ntle: ka Ring e Ntle ea ho Tiisa, Moqomo oa Moea o sebetsa hantle haholo ho Thibela ho Dutla ha Piston, ho Ntlafatsa Ts'ebetso ea ho Tiisa.
3.E sebelisoa ka ho Fetisisa ho Thepa e Ikemetseng ho Indasteri ea Leseli, Indasteri ea Lik'hemik'hale, Indasteri ea Textile, Indasteri ea Elektronike le Mechini.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Setsebi

Bore Size(mm)

MPTF MPTS

Mokhoa oa ho sebetsa

Ho etsa habeli

Media Media

Moea o hloekisitsoeng

Khatello ea Mosebetsi

0.2~0.7Mpa(2~7kgf/cm²)

Ho potoloha Oli

ISO Vg46 以上

Mocheso oa Mosebetsi

-5~+60°C

Lebelo la Tshebetso

50 ~ 700mm/s

Khatello ea Bopaki

Moqomo oa oli: 300kgf/cm²,moqomo oa moeaBoima: 15kgf/cm²

Khafetsa ea ho sebetsa

Ho feta makhetlo a 10 / ka motsotso

Khoutu ea Odara

90
Stroke Dimensions Le Output Force

Bore Size(mm) Tonage T

Kakaretso ea stroke (mm)

stroke (mm)

Khatello ea ho sebetsa (kgf/cm²)

1

2

3

4

5

6

7

60

1

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

30

60

90

120

150

180

210

Booster output force Kg

300

600

900

1250

1550

1850

2150

Kg

20

40

60

80

100

120

140

3

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

30

60

90

120

150

180

210

Booster output force Kg

500

1000

1500

2000

2500

3000

3500

Kg

20

40

60

80

100

120

140

80

5

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

50

100

150

200

250

300

350

Booster output force Kg

1000

2000

3000

4000

5000

6000

7000

Kg

40

80

120

160

200

240

280

100

10

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

78

156

234

312

390

468

546

Booster output force Kg

1560

3120

4680

6240

7800

9360

10920

Kg

60

120

180

240

300

360

420

13

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

78

156

234

312

390

468

546

Booster output force Kg

1970

3940

5190

7880

9850

11820

13790

Kg

60

120

180

240

300

360

420

125

15

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

120

240

360

480

600

720

840

Booster output force Kg

2560

5120

7680

10240

12800

15350

17900

Kg

90

180

270

360

450

540

630

20

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

120

240

360

480

600

720

840

Booster output force Kg

3500

7000

10500

14000

17500

21000

24500

Kg

90

180

270

360

450

540

630

30

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

120

240

360

480

600

720

840

Booster output force Kg

4000

8000

12000

16000

20000

24000

28000

Kg

90

180

270

360

450

540

630

160

40

50/100/150/200

5/10/15/20

Matla a tlhahiso ea pele-pele Kg

200

400

600

800

1000

1200

1400

Booster output force Kg

6500

13000

19500

26000

32500

39000

46000

Kg

165

330

495

660

825

990

1155

Boemo

91

Tonnlilemo

A

B

C

D

D1

D2

E

F

d

MM

KK

CC

1T

50

5

20

75

4G

35

65

132

14

M30X1.5

G3/8

G3/8

3T

50

5

20

75

55

35

65

132

14

M30X1.5

G3/8

G3/8

5T

50

5

20

75

55

35

87

155

17

M30X1.5

G3/8

G3/8

10T

55

5

30

90

65

45

110

190

21

M39X2

G1/2

G3/8

13T

55

5

30

90

65

45

110

190

21

M39X2

G1/2

G3/8

15T

55

5

30

90

75

55

140

255

25

M48X2

G1/2

G3/8

20T

55

5

30

90

77

60

140

255

25

M48X2

G1/2

G3/8
