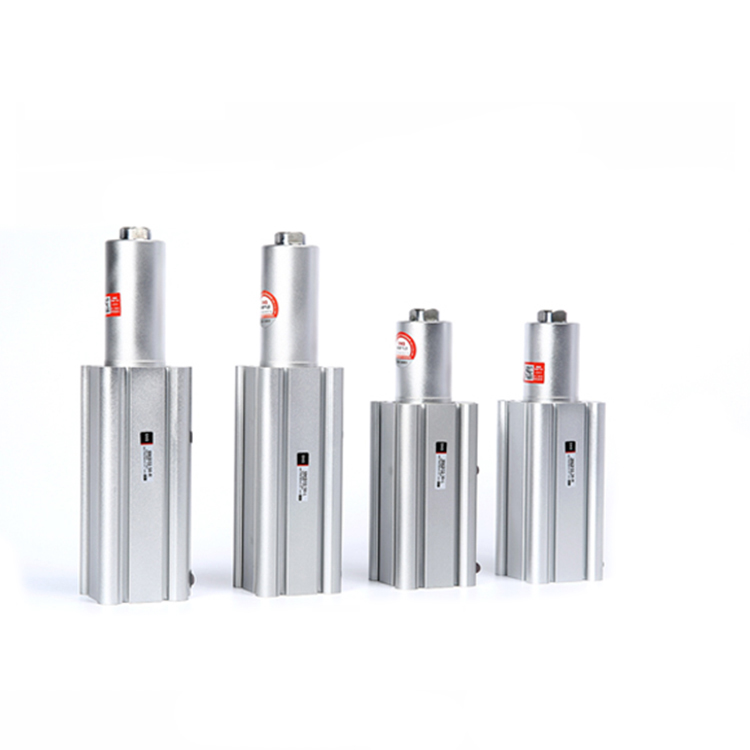

SNS MK Series Double Acting Rotary Clamp Pneumatic Air Cylinder

Tlhaloso e Khutšoanyane:

1.Corrosion Resistance: Air Cylinder e Entsoe ka Aluminium ea Boleng bo Phahameng , Matla a Phahameng, Ha ho na ho Sotha, ho hanyetsa Corrosion, Bophelo ba Tšebeletso ea Nako e telele, bo tšoarella haholoanyane.

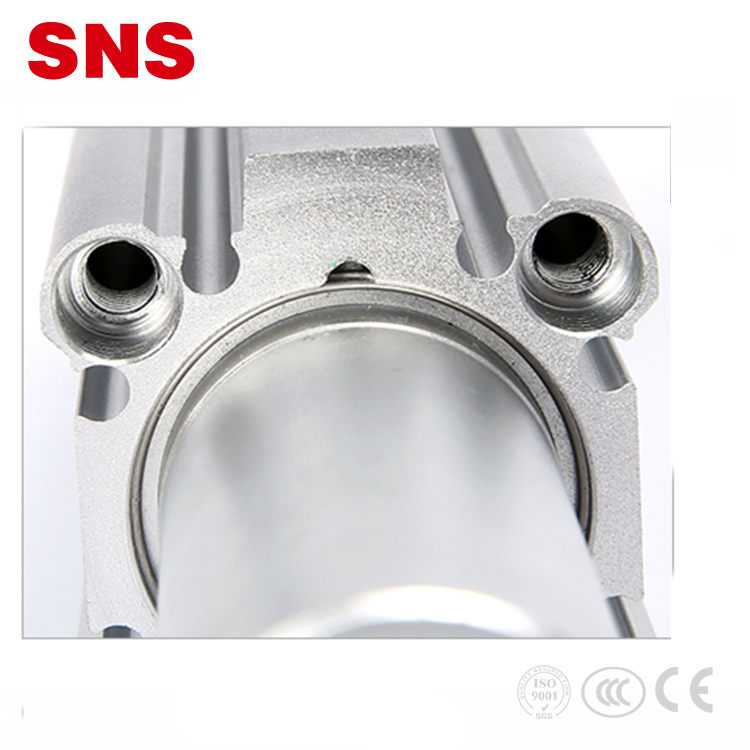

2.Lesale la ho Tiisa le Ntle: ka Ring e Ntle ea ho Tiisa, Moqomo oa Moea o sebetsa hantle haholo ho Thibela ho Dutla ha Piston, ho Ntlafatsa Ts'ebetso ea ho Tiisa.
3.t e Sebelisoa Haholo ho Thepa e Ikemetseng ho Indasteri ea Leseli, Indasteri ea Lik'hemik'hale, Indasteri ea Masela, Indasteri ea Elektronike le Mechini.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

13
Tlhaloso ea Setsebi

Bore Size(mm)

12

16

20

25

32

40

50

63

Mokhoa oa ho sebetsa

Moea o hloekisitsoeng

Mokelikeli o sebetsang

Ho etsa habeli

Khatello e Phahameng

1Mpa

Min.Khatello ea ho sebetsa

0.1Mpa

Mokelikeli oa Mocheso

Phetoho ea Magnetic: -10 ~ + 60 ℃;Phetoho e seng ea makenete: -10~+70℃

Lebelo la Piston

50-200mm/s

Buffering

Tšireletso ea rabara

Mamello ea Stroke(mm)

+0,6 -0,4

Lubrication

Ha ho hlokahale

Back-Rotation Angle

90°±10°

Tsela ea ho potoloha ka morao

L/R

Bohole ba ho Potoloha ka Morao(mm)

7.5

9.5

15

19

Bohole ba ho Tlanya(mm)

10, 20, 30

10, 20, 30

Torque e lumelletsoeng ea Bending(Nm)

1

3.8

7

13

27

47

107

182

Clamping Force(N)

40

75

100

185

300

525

825

1400

Ho Nepaha Ho sa Potoloheng ha Piston Rod

±1.4°

±1.2°

±0.9°

±0.7°

Boholo ba Boema-kepe

M5X0.8

1/8″

1/4″

Boemo

14

Mohlala

A

C

D

E

F

G

H

W

MKB12

25

15.5

5

M3X0.5

5.5

11

6

9.5+Seterouku se koetsoeng

MKB16

29

20

7

M5X0.8

6.5

14

8

9.5+Seterouku se koetsoeng

15

Mohlala

A

B

C

K

L

O

Q

R

S

U

W

MKB20

36

46.8

36

13.5±0.15

7.5 litsoe 0.15

20 0-0.25

72.5

62

31

4

6.5+Stroke e koetsoeng

MKB25

40

52

40

16 ±0.15

8±0.15

23 0-0.25

73.5

63

32

5

6.5+Seterouku se koetsoeng

16

Mohlala

A

C

D

G

H

I

J

K

L

MKB32

45

34

14-0.1 -0.2

5.5

9 botebo7

M10X1.5

12

20 ±0.15

7 ±0.15

MKB40

52

40

14 -0.1 -0.2

5.5

9 Depl7

M10X1.5

12

24 ±0.15

7 ±0.15

MKB50

64

50

17-0.1 -0.2

6.6

11 Botebo ba 9

M12X1.75

15

30 ±0.15

8 ±0.15

MKB63

77

60

17-0.1 -0.2

9

14 Ho teba10.5

M12X1.75

15

35 ±0.15

9 ±0.15

Mohlala

O

P

Q

R

S

T

U

V

X

Y

Z

W

MKB32

14

4.5

93.5

71.5

37

7.5

16

1/8

3

300-0.62

6.5

15.5+Clamped stroke

MKB40

14

5

94.5

65

29.5

8

16

1/8

3

300-0.62

6.5

23.0+Clamped stroke

MKB50

19

7

112

76.5

34

10.5

20

1/4

3.5

370-0.62

7.5

28.0+Clamped stroke

MKB63

19

7

115

80

35

10.5

20

1/4

3.5

480-0.62

7.5

27.5+Clamped stroke

17

Mohlala

Bore

N

O

P

Q

R

S

G

MK-12-N

12

8

29

20

4

M3x0.5

8

8-18

MK-16-N

16

11

36

25

5

M4x0.7

11

8-18

MK-20/25-N

20,25

14

51

35

7

M6x1.0

16

12-22

MK-32/40-N

32,40

18

67

45

10

M8x1.25

20

15-25

MK-50/63-N

50,63

22

88

65

10

M10X1.5

22

30-40
