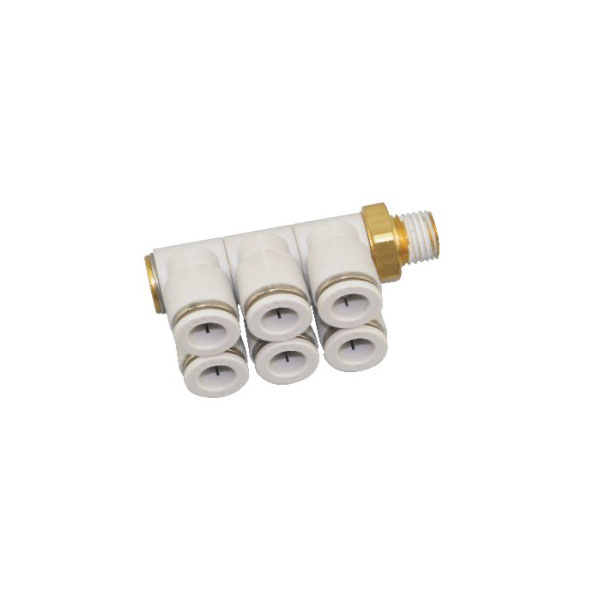

SNS KQ2ZT Series pneumatic one touch air hose tube sehokedi se tona se otlolohileng koporo se loketseng kapele

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara
Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

1615178165

Mohlala

φD

A

B

C1

C2

R

H

E

L1

L2

L3

KQ2ZT6-01

6

8

3.8

13.5

13

PT1/8

14

13.5

54.5

23.5

26

KQ2ZT6-02

6

10

3.8

13.5

13

PT1/4

14

13.5

56.5

23.5

26

KO2ZT6-03

6

10

3.8

13.5

13

PT3/8

17

13.5

56.5

23.5

26

KQ2ZT6-04

6

12

3.8

13.5

13

PT1/2

21

13.5

57.5

23.5

26

KQ2ZT8-01

8

8

5.8

17.5

15

PT1/8

19

16

64

28

30.5

KQ2ZT8-02

8

10

5.8

17.5

15

PT1/4

19

16

66

28

30.5

KQ2ZT8-03

8

10

5.8

17.5

15

PT3/8

19

16

68

28

30.5

KQ2ZT8-01

8

12

5.8

17.5

15

PT1/2

21

16

68

28

30.5

KQ2ZT10-01

10

8

4.1

21

18.5

PT1/8

21

19.5

74

31

37.5

KQ2ZT10-02

10

10

4.1

21

18.5

PT1/4

21

19.5

76

31

37.5

KQ2ZT10-03

10

10

4.1

21

18.5

PT3/8

21

19.5

76

31

37.5

KQ2ZT10-04

10

12

4.1

21

18.5

PT1/2

21

19.5

78

31

37.5

KQ2ZT12-01

12

8

4.1

24

21

PT1/8

24

22

81.5

33.5

42.5

KQ2ZT12-02

12

10

4.1

24

21

PT1/4

24

22

83.5

33.5

42.5

KQ2ZT12-03

12

10

4.1

24

21

PT3/8

24

22

83.5

33.5

42.5

KQ2ZT12-04

12

12

4.1

24

21

PT1/2

24

22

85.5

33.5

42.5

Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
