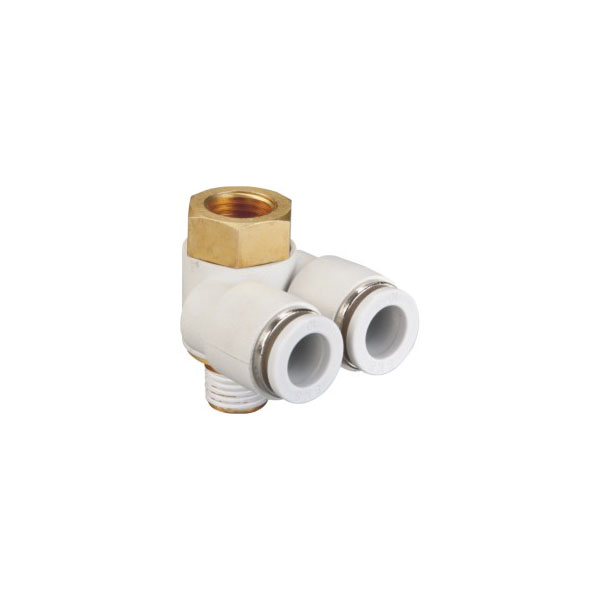

SNS KQ2ZF Series pneumatic one touch air hose tube sehokedi sa monna o otlolohileng koporo e loketseng kapele

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

der Code

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

1615178909(1)

Mohlala

φd

φD1

φD2

H

G

R

P

L1

L2

L3

KQ2ZF6-01

06

13

13.5

14

G1/8

PT 1/8

26

24

17

28.5

KQ2ZF6-02

06

13

13.5

19

G1/4

PT1/4

26

24

19

40.5

KQ2ZF8-01

08

15

17.5

17

G1/8

PT1/8

15.5

28

18

30

KQ2ZF8-02

08

15

17.5

19

G1/4

PT 1/4

15.5

28

20

40.5

KQ2ZF10-02

10

18.5

21

19

G1/4

PT1/4

19

31

22

40.5

KQ2ZF10-03

10

18.5

21

22

G3/8

PT3/8

19

31

22

40.5

KQ2ZF12-03

12

21

24

22

G3/8

PT3/8

21.5

34

23

44

KQ2ZF12-04

12

21

24

24

G1/2

PT1/2

21.5

34

24

49

Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
