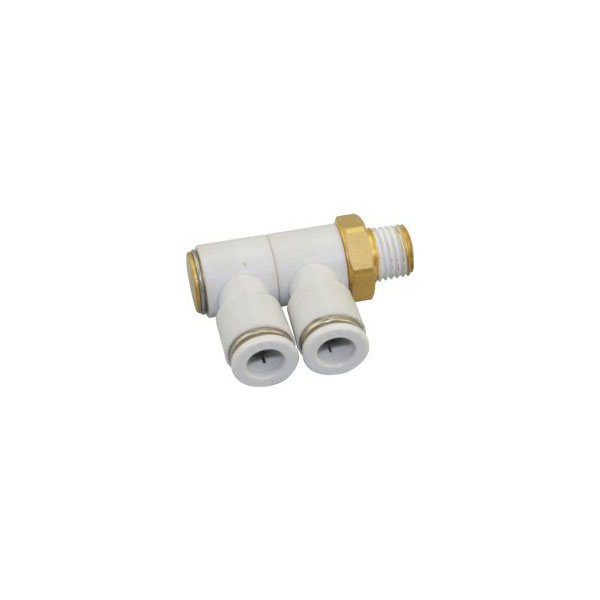

SNS KQ2ZD Series pneumatic one touch air hose tube sehokedi sa monna se otlolohileng koporo e potlakang Setšoantšo se hlahang

SNS KQ2ZD Series pneumatic one touch air hose tube sehokedi sa monna o otlolohileng koporo e loketseng kapele

Tlhaloso e Khutšoanyane:

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara
Tlhaloso ea Setsebi

Mokelikeli		Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa		1.32Mpa(13.5kgf/cm²)
Khatello Range	Khatello e Tloaelehileng ea ho Sebetsa	0-0.9 Mpa(0-9.2kgf/cm²)
	Khatello e Tlase ea Mosebetsi	-99.99-0Kpa(-750~0mmHg)
Ambient Mocheso		0-60 ℃
Pipe e sebetsang		PU Tube

Boemo

Mohlala	φD	A	B	C1	C2	R	H	E	L1	L2	L3
KQ2ZD6-01	6	8	3.8	13.5	13	PT1/8	14	13.5	41	23.5	26
KQ2ZD6-02	6	10	3.8	13.5	13	PT1/4	14	13.5	43	23.5	26
KQ2ZD6-03	6	10	3.8	13.5	13	PT3/8	17	13.5	43	23.5	26
KO2ZD6-04	6	12	3.8	13.5	13	PT1/2	21	13.5	44	23.5	26
KQ2ZD8-01	8	8	5.8	17.5	15	PT1/8	19	16	48	28	30.5
KQ2ZD8-02	8	10	5.8	17.5	15	PT1/4	19	16	50	28	30.5
KQ2ZD8-03	8	10	5.8	17.5	15	PT3/8	19	16	50	28	30.5
KQ2ZD8-01	8	12	5.8	17.5	15	PT1/2	21	16	52	28	30.5
KQ2ZD10-01	10	8	4.1	21	18.5	PT1/8	21	19.5	54.5	31	37.5
KQ2ZD10-02	10	10	4.1	21	18.5	PT1/4	21	19.5	56.5	31	37.5
KQ2ZD10-03	10	10	4.1	21	18.5	PT3/8	21	19.5	56.5	31	37.5
KQ2ZD10-04	10	12	4.1	21	18.5	PT1/2	21	19.5	58.5	31	37.5
KQ2ZD12-01	12	8	4.1	24	21	PT1/8	24	22	59.5	33.5	42.5
KO2ZD12-02	12	10	4.1	24	21	PT1/4	24	22	61.5	33.5	42.5
KQ2ZD12-03	12	10	4.1	24	21	PT3/8	24	22	61.5	33.5	42.5
KQ2ZD12-04	12	12	4.1	24	21	PT1/2	24	22	63.5	33.5	42.5
