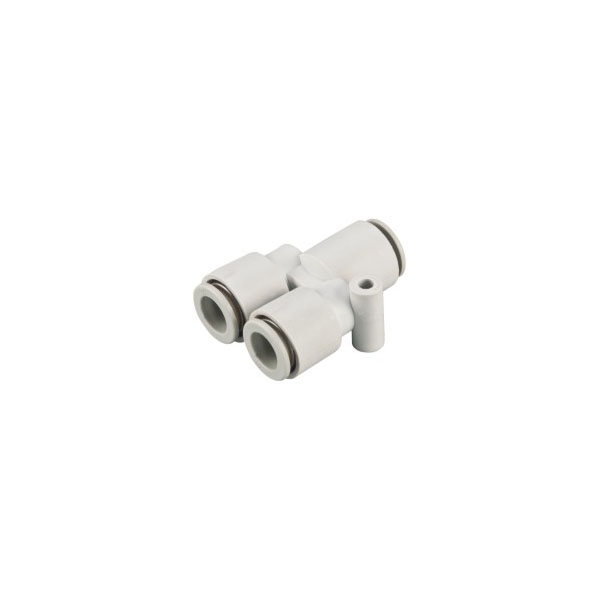

SNS KQ2Y Series e 'ngoe touch 3 tsela Y mofuta tee male khoele air hose tube sehokelo polasetiki pneumatic ka potlako ho lekana

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

der Code

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

1615185747(1)

Mohlala

φd

L

φD

A

B

φC

φE

F

KQ2Y-4

4

35

10.5

10.5

14.5

6

3.2

21.5

KQ2Y-6

6

38

12.8

12.8

16.5

6

3.2

23.5

KQ2Y-8

8

43.5

15.5

15.5

19.5

8

4.2

28

KQ2Y-10

10

48

18.5

18.5

24.5

8

4.2

30

KQ2Y-12

12

53

21

21

29

8

4.2

34



Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
