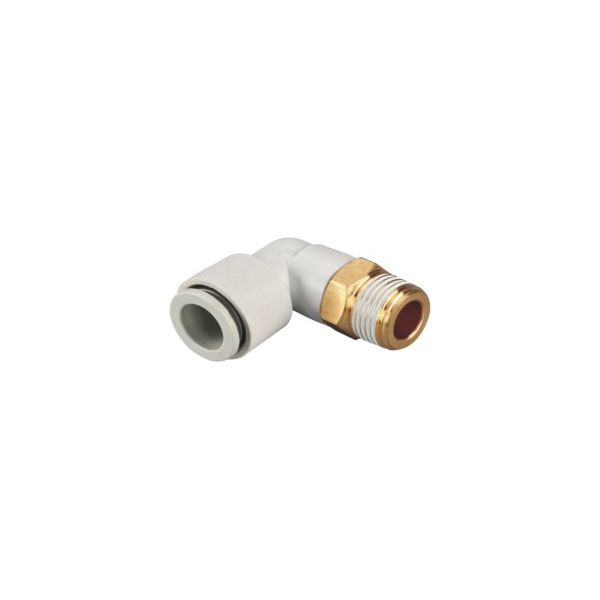

SNS KQ2L Series Male Elbow L mofuta oa Plastiki hose sehokelo Push To Connect Pneumatic Air Fitting

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

der Code

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo

1615186835(1)

Mohlala

φd

L

φD

A

B

R

H(Hexagon)

KQ2L4-M5

4

19.5

10.5

10

19.5

M5

10

KQ2L4-01

4

19.5

10.5

10

23

PT1/8

10

KQ2L4-02

4

19.5

10.5

10

25

PT 1/4

14

KQ2L6-M5

6

21

12.8

10

20.5

M5

10

KQ2L6-01

6

21

12.8

10

24

PT 1/8

10

KQ2L6-02

6

21

12.8

10

26

PT 1/4

14

KQ2L6-03

6

21

12.8

10

28

PT3/8

17

KQ2L8-01

8

24

15.5

12

26

PT1/8

12

KQ2L8-02

8

24

15.5

12

27

PT 1/4

14

KQ2L8-03

8

24

15.5

12

29.5

PT3/8

17

KQ2L10-01

10

27

18.5

17

28

PT1/8

17

KQ2L10-02

10

27

18.5

17

30

PT 1/4

17

KQ2L10-03

10

27

18.5

17

31

PT3/8

17

KQ2L10-04

10

27

18.5

17

32

PT 1/2

21

KQ2L12-02

12

30

21

17

31

PT 1/4

17

KQ2L12-03

12

30

21

17

32

PT3/8

17

KQ2L12-04

12

30

21

17

33

PT 1/2

21



Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
