Khoutu ea Odara

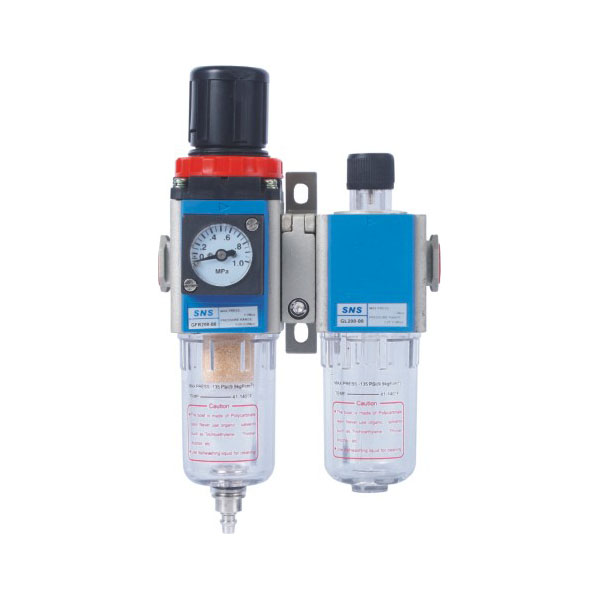

Mohlala | GFC-200 | GFC-300 | GFC-400 |
Mojule | GFR-200 | GFR-300 | GFR-400 |
GL-200 | GL-300 | GL-400 | |
Media Media | Moea o Hatelitsoeng | ||
Boholo ba Boema-kepe | G1/4 | G3/8 | G1/2 |
Khatello Range | 0.05 ~ 0.85MPa | ||
Max.Khatello ea Bopaki | 1.5MPa | ||
Bokhoni ba Mohope oa Metsi | 10ml | 40ml | 80ml |
Bokhoni ba Mohope oa Oli | 25ml | 75ml | 160ml |
Filler Precision | 40 μ m(Tlwaelehileng)kapa 5 μ m(E ikemiseditseng) | ||
Tlhahiso ea Oli ea ho Lubricating | Oli ea ISO VG32 kapa e lekanang le eona | ||
Ambient Mocheso | -20 ~ 70 ℃ | ||
Lintho tse bonahalang | 'Mele: Aluminium Alloy; Mohope: PC |
Boemo
Mohlala | A | B | BA | C | D | K | KA | KB | P | PA | Q |
GFC-200 | 97 | 62 | 30 | 161 | M30x1.5 | 5.5 | 50 | 8.4 | G1/4 | 93 | G1/8 |
GFC-300 | 164 | 89 | 50 | 270.5 | M55x2.0 | 8.6 | 80 | 12 | G3/8 | 166.5 | G1/4 |
GFC-400 | 164 | 89 | 50 | 270.5 | M55x2.0 | 8.6 | 80 | 12 | G1/2 | 166.5 | G1/4 |
Tlhokomeliso: Boleng ba C bo tla fapana ka module ea draining e fapaneng, lintlha tse ling ka kopo ikopanye le thekiso.
