China SNS CJ2 Series tšepe e sa jeleng paate habeli/single acting mini mofuta pneumatic maemo a moea silindara Moetsi le Mofani |SNS Pneumatic

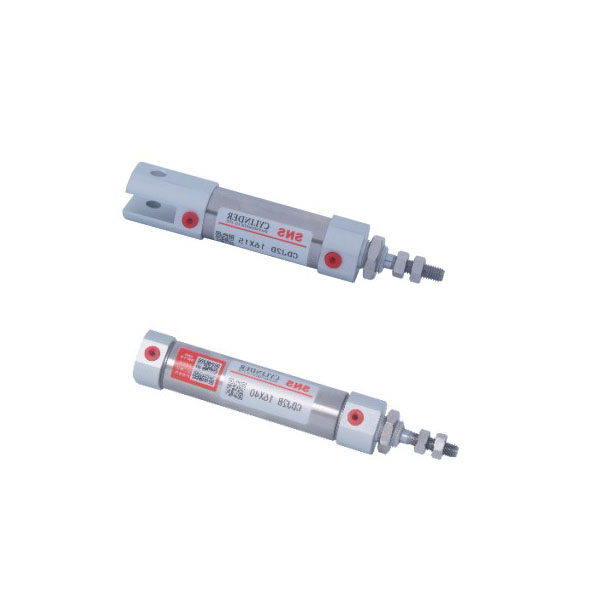

SNS CJ2 Series tšepe e sa hloekang habeli/e le 'ngoe ea mofuta o monyane oa pneumatic silindara e tloaelehileng ea moea e Featured Image

SNS CJ2 Series tšepe e sa hloekang habeli/e le 'ngoe e sebetsang mini-silindara e tloaelehileng ea moea

Tlhaloso e Khutšoanyane:

CJ2 Series Small MINI Pneumatic Air Cylinder e amohela moralo oa bophelo bo bolelele, oo ho leng bonolo ho o kenya;compact, boima bo bobebe, ts'ebetso e ntle ea ts'ebetso ea lerōle, moralo o khethehileng oa selikalikoe sa piston rod seal, se ka ikamahanyang le maemo a futsanehileng a ho sebetsa.
1. Moralo oa bophelo bo bolelele.
2. Ho bonolo ho kenya.
3. Ts'ebetso e ntle haholo ea lerōle, moralo o khethehileng oa lesale la ho tiisa lere la piston, le ka ikamahanya le maemo a futsanehileng a ho sebetsa.
4. Lesale la ho tiisa le ka nkeloa sebaka, le eketsa haholo bophelo ba tšebeletso ea letoto lena la li-cylinders.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

Tlhaloso ea Setsebi

Bore Size(mm)	6	10	16
Mokhoa oa ho sebetsa	Ho etsa habeli
Media Media	Moea o hloekisitsoeng
Khatello ea Mosebetsi	0.1-0.7Mpa(1-7kgf/cm²)
Khatello ea Bopaki	1.05Mpa(10.5kgf/cm²)
Mocheso oa Mosebetsi	-5 ~ 70℃
Mokhoa oa Buffering	Ntle
Boholo ba Boema-kepe	M5
'Mele Thepa	Ts'epe e sa beng le mabali

Khetho ea Sensor Switch

Mokhoa/Bore boholo	6	10	16
Sensor switjha	CS1-F CS1-U CS1-S

Stroke ea Cylinder

Bore Size(mm)	Stroke e Tloaelehileng(mm)
6	15 20 25 30 35 40 45 50 55 60
10	15 20 25 30 35 40 45 50 55 60
16	15 20 25 30 35 40 45 50 55 60 75 100 125

Boemo

Bore Size(mm)	A	B	C	D	F	GA	GB	H	MM	NA	NB	ND h8	NN	S	T	Z
6	15	12	14	3	8	14.5		28	M3X0.5	16	7	6	M6X1.0	49	3	77
10	15	12	14	4	8	8	5	28	M4X0.7	12.5	9.5	8	M8X1.0	46		74
16	15	18	20	5	8	8	5	28	M5X0.8	12.5	9.5	10	M10X1.0	47		75
