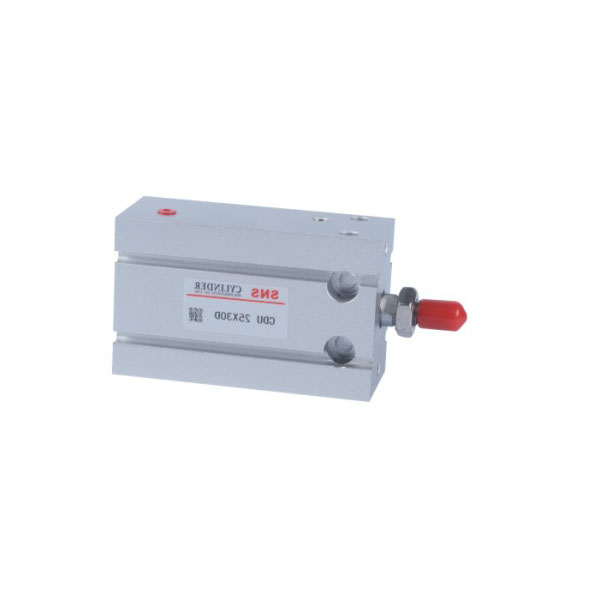

SNS CDU Series aluminium alloy e habeli / e le 'ngoe e sebetsang mefuta e mengata ea mofuta oa pneumatic standard air cylinder

Tlhaloso e Khutšoanyane:

CDU Flexible Free Installation Mounting Pneumatic Air Cylinder ke cylinder e bolokang sebaka e ka kenngoa ho tloha kae kapa kae;'mele oa silinda le hlooho ea cylinder li kopantsoe ho ntlafatsa ho nepahala ha ho kenya;ho ts'oara le ho nepahala ha angle ea ho kenya bokaholimo ba 'mele oa silinda le piston rod shaft core lia ntlafatsoa,' me ho kenya ka kotloloho ho boetse ho ntlafatsa matla;e ka ba le lisebelisoa tsa magnetic switch.e sebelisoa haholo lisebelisoa tsa indasteri ka lebaka la boholo ba eona bo fokolang, ho boloka sebaka, ho kenya likarolo tse ngata le ho nepahala ho phahameng ho lokisa.Ho na le litlhaloso tse fapaneng tsa lisebelisoa tsa cylinder le li-cylinder tseo bareki ba ka li khethang.
1.space saving square cylinder e ka kenngoa ho tloha kae kapa kae.
2.'mele oa cylinder le hlooho ea cylinder li kopantsoe, ho nepahala ha ho kenngoa hoa ntlafatsoa, ho nepahala ha parallelism le squareness ea ho kenngoa holim'a 'mele oa square cylinder le piston rod shaft core e ntlafatsoa,' me ho kenngoa ka ho toba ho boetse ho ntlafatsa matla.
3.e ka ba le lisebelisoa tsa makenete.Silinda block e na le groove e chitja.Ke li-switch tsa cs1-h le d-a93 feela tse ka kengoang.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

Tlhaloso ea Setsebi

Bore Size(mm)	6	10	16	20	25	32
Mokhoa oa ho sebetsa	Ho etsa habeli
Media Media	Moea o hloekisitsoeng
Khatello ea Mosebetsi	0.1~0.9Mpa(1~9kgf/cm²)
Khatello ea Bopaki	1.05Mpa(10.5kgf/cm²)
Mocheso	-5 ~ 70℃
Mokhoa oa Buffering	Buffer e tsitsitseng
Boholo ba Boema-kepe	M5					1/8”
'Mele Thepa	Aluminium Alloy

Stroke ea Cylinder

Bore Size(mm)	Stroke e Tloaelehileng(mm)	Phetoho ea Magnetic
6	5 10 15 20 25 30	D-A93
10	5 10 15 20 25 30
16	5 10 15 20 25 30 35 40 45 50
20	5 10 15 20 25 30 35 40 45 50
25	5 10 15 20 25 30 35 40 45 50
32	5 10 15 20 25 30 35 40 45 50

Boemo

Letlapa la boholo ba sechaba

Mohlala	A	A'	B	C	φD	E	GA	GB	J	K	L	MM	NN	φP	Q	R	φT
C □U6	7	-	13	22	3	7	15	10	10	17	-	M3x0.5	M3x0.5 Botebo5	3.2	-	7	6 Botebo4.8
C □U10	10	-	15	24	4	7	16.5	10	11	18	-	M4x0.7	M3x0.5 Botebo5	3.2	-	9	6 Botebo5
C □U16	11	12.5	20	32	6	7	16.5	11.5	14	25	5	M5x0.8 4.5	M4x0.7 Botebo6	4.5	4	12	7.6 Botebo6.5
C □U20	12	14	26	40	8	9	19	12.5	16	30	6	M6x1.0	M5x0.8 Botebo8	5.5	9	16	9.3 Botebo8
C □U25	15.5	18	32	50	10	10	21.5	13	20	38	8	M8x1.25 Botebo8 5.5	M5x0.8Botebo8	5.5	9	20	9.3 Botebo9
C □U32	19.5	22	40	62	12	11	23	13	24	48	10	M10x1.25 Botebo9, 6.6	M6x1.0Botebo9	6.6	13.5	24	11Botebo11.5

Letlapa la boholo bo sebetsang habeli

Mohlala	H	Mofuta oa motheo		Mofuta oa selikalikoe sa makenete o hahiloeng kahare
		S	Z	W	S'	Z'
C □U6- □D	13	33	46	2.5	33	46
C □U10- □D	16	36	52	1	36	52
C □U16- □D	16	30	46	0	40	56
C □U20- □D	19	36	55	1	46	65
C □U25-□D	23	40	63	-1	50	73
C □U32- □D	27	42	69	-4	52	79

Leqephe la boholo ba ho sebetsa habeli (Semoea se tobetsa morao).

Mohlala	H	Mofuta oa motheo						Mofuta oa selikalikoe sa makenete o hahiloeng kahare
		S			Z			W	S'			Z'
		Ea bo-5	Ea bo-10	Ea bo15	Ea bo-5	Ea bo-10	Ea bo15	W	Ea bo-5	Ea bo-10	Ea bo15	Ea bo-5	Ea bo-10	Ea bo15
C □U6- □S	13	38	43	48	51	56	61	2.5	38	43	48	51	56	61
C □U10- □S	16	41	46	56	57	62	72	1	41	46	56	57	62	72
C □U16- □S	16	35	40	50	51	56	66	0	45	50	60	61	66	76
C □U20- □S	19	41	46	56	60	65	75	1	51	56	66	70	75	85
C □U25- □S	23	45	50	60	68	73	83	-1	55	60	70	78	83	93
C □U32- □S	27	47	52	62	74	79	89	-4	57	62	72	84	89	99

Leqephe la boholo ba ho sebetsa habeli (Semoea sa khatiso).

Mohlala	H			Mofuta oa motheo						Mofuta oa selikalikoe sa makenete o hahiloeng kahare
	H			S			Z			W	S'			Z'
	Ea bo-5	Ea bo-10	Ea bo15	Ea bo-5	Ea bo-10	Ea bo15	Ea bo-5	Ea bo-10	Ea bo15	W	Ea bo-5	Ea bo-10	Ea bo15	Ea bo-5	Ea bo-10	Ea bo15
C □U6- □T	18	23	28	38	43	48	56	66	76	2.5	38	43	48	56	66	76
C □U10- □T	21	26	31	41	46	56	62	72	87	1	41	46	56	62	72	87
C □U16- □T	21	26	31	35	40	50	66	76	91	0	45	50	60	66	76	91
C □U20- □T	24	29	34	41	46	56	65	75	90	1	51	56	66	75	85	100
C □U25- □T	28	33	38	45	50	60	73	83	98	-1	55	60	70	83	93	108
C □U32- □T	32	37	42	47	52	62	79	89	104	-4	57	62	72	89	99	114
