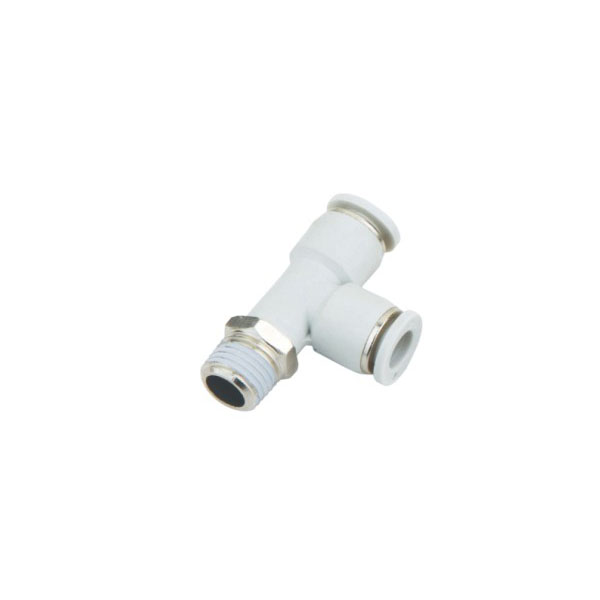

SNS BPD Series pneumatic one touch T mofuta oa 3 tsela e kopaneng ea monna matha tee polasetiki e potlakileng e loketseng moea oa hose tube sehokelo

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

der Code

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo1615188153(1)

Mohlala

φD

R

A

B

E

H

φd

BPD4-M5

4

M5

4.5

37

18.5

10

/

BPD4-01

4

PT 1/8

7

40.5

18.5

10

/

BPD4-02

4

PT 1/4

9

42.5

18.5

14

/

BPD6-M5

6

M5

4.5

41

21

12

3.5

BPD6-01

6

PT 1/8

7

44.5

21

12

3.5

BPD6-02

6

PT 1/4

9

46.5

21

14

3.5

BPD6-03

6

PT3/8

10

48.5

21

17

3.5

BPD6-04

6

PT 1/2

11

49

21

21

3.5

BPD8-01

8

PT 1/8

8

47

23

14

4.5

BPB8-02

8

PT 1/4

10

48

23

14

4.5

BPD8-03

8

PT3/8

10

50.5

23

17

4.5

BPD8-04

8

PT 1/2

11

51.5

23

21

4.5

BPD10-01

10

PT 1/8

8

56

26

17

4

BPD10-02

10

PT 1/4

10

58

26

17

4

BPD10-03

10

PT3/8

10

59

26

17

4

BPD10-04

10

PT 1/2

11

60

26

21

4

BPD12-01

12

PT 1/8

8

58

27

19

5

BPD12-02

12

PT 1/4

10

60

27

19

5

BPD12-03

12

PT3/8

10

61

27

19

5

BPD12-04

12

PT 1/2

11

62

27

21

5

Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
