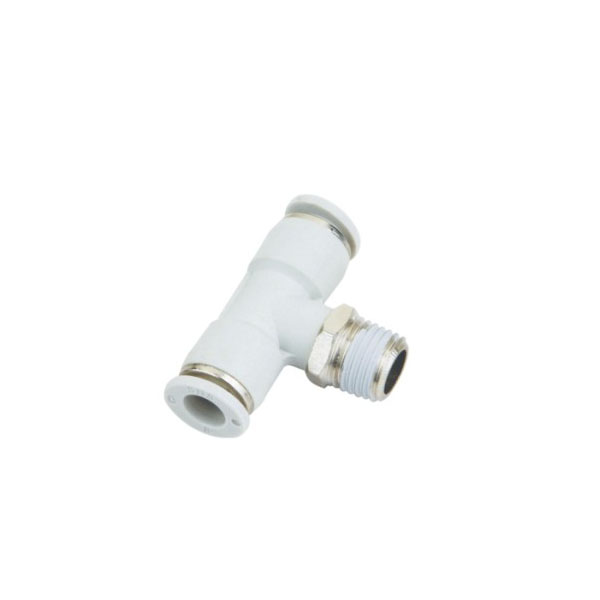

SNS BPB Series Pneumatic Male Branch Thread Tee Type Quick Connect Fitting Plastic Air Connector

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.
Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

4. Ho tloaeleha ho itloaetsa e le setšoantšo sa hau kapa re etsa setšoantšo e le mohlala oa hau.

5. Raw Material e lumellana le litekanyetso tsa ROHS.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

der Code

Tlhaloso ea Setsebi

Mokelikeli Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme
Khatello e phahameng ea ho sebetsa 1.32Mpa(13.5kgf/cm²)
Khatello Range Khatello e Tloaelehileng ea ho Sebetsa 0-0.9 Mpa(0-9.2kgf/cm²)
Khatello e Tlase ea Mosebetsi -99.99-0Kpa(-750~0mmHg)
Ambient Mocheso 0-60 ℃
Pipe e sebetsang PU Tube

Boemo1615188605(1)

Mohlala

φD

R

A

B

E

H2

φd

BPB4-M5

4

M5

4.5

19

18.5

10

/

BPB4-01

4

PT 1/8

7

22.5

18.5

10

/

BPB4-02

4

PT 1/4

9

24.5

18.5

14

/

BPB6-M5

6

M5

4.5

20

20

12

3.5

BPB6-01

6

PT 1/8

7

23.5

20

12

3.5

BPB6-02

6

PT 1/4

9

25.5

20

14

3.5

BPB6-03

6

PT3/8

10

27.5

20

17

3.5

BPB6-04

6

PT 1/2

11

28

20

21

3.5

BPB8-01

8

PT1/8

8

24

23

14

4.5

BPB8-02

8

PT 1/4

10

25

23

14

4.5

BPB8-03

8

PT3/8

10

27.5

23

17

4.5

BPB8-04

8

PT 1/2

11

28.5

23

21

4.5

BPB10-01

10

PT 1/8

8

29

26

17

4

BPB10-02

10

PT 1/4

10

31

26

17

4

BPB10-03

10

PT3/8

10

32

26

17

4

BPB10-04

10

PT 1/2

11

33

26

21

4

BPB12-01

12

PT 1/8

8

30

27

19

5

BPB12-02

12

PT 1/4

10

32

27

19

5

BPB12-03

12

PT3/8

10

33

27

19

5

BPB12-04

12

PT 1/2

11

34

27

21

5



Tlhokomeliso: NPT, PT, G khoele ke boikhethelo

'Mala oa letsoho la liphaephe o ka etsoa ka mokhoa o ikhethileng
Mofuta o khethehileng oa fittin
