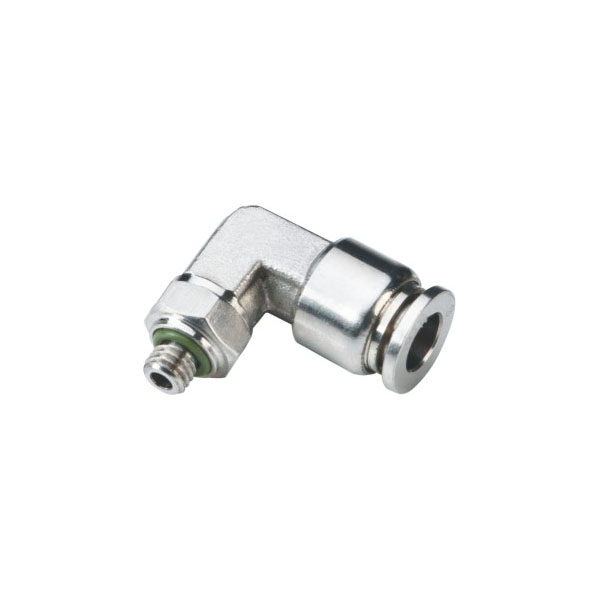

SNS BKC-PL Series Male Elbow L mofuta Stainless steel hose sehokedi Push To Connect Pneumatic Air Fitting

Tlhaloso e Khutšoanyane:

Sesebelisoa sa khokahano sa mofuta oa 1.One bakeng sa piping ea khatello ea moea.

2.Tsebeliso e fapaneng ho itšetlehile ka tikoloho ea mosebedisi libakeng tse fokolang.

3.Ketso e le 'ngoe e kenya tube ho lokolla le ho hokahanya habonolo.

Lisebelisoa tsa 4.stainless steel li ka sebelisoa ka polyurethane, nylon le PTFE tubing har'a tse ling.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara



Tlhaloso ea Setsebi



Mokelikeli

Moea, haeba o sebelisa mokelikeli ka kopo ikopanye le feme

Khatello e phahameng ea ho sebetsa

1.32Mpa(13.5kgf/cm²)

Khatello Range

Khatello e Tloaelehileng ea ho Sebetsa

0-0.9 Mpa(0-9.2kgf/cm²)

Khatello e Tlase ea Mosebetsi

-99.99-0Kpa(-750~0mmHg)

Ambient Mocheso

0-60 ℃

Pipe e sebetsang

PU Tube

Lintho tse bonahalang

Ts'epe e sa beng le mabali

Boemo

BKC-PL







Mohlala

A

B

C

D

D1

E

F

H

BKC-PL4-M5

-

- - - - - - -

BKC-PL4-M6

- - - - - - - -

BKC-PL4-01

6

23.7

7.5

PT1/8

4

12

9.8

28.7

BKC-PL4-02

7

24.5

7

PT1/4

4

14

9.8

29.5

BKC-PL6-M5

-

-

-

-

-

-

-

-

BKC-PL6-M6

-

-

-

-

-

-

-

-

BKC-PL6-01

6

24

7

PT1/8

6

12

12

30

BKC-PL6-02

7

26

7

PT1/4

6

14

12

32

BKC-PL6-03

8.5

28

7.6

PT3/8

6

17

12

34

BKC-PL8-01

6

26

7

PT1/8

8

12

14

33

BKC-PL8-02

7

26

7

PT1/4

8

14

14

33

BKC-PL8-03

8.5

28

8

PT3/8

8

17

14

35

BKC-PL10-02

7

26.5

7

PT1/4

10

14

16

35

BKC-PL10-03

8.5

27.5

7

PT3/8

10

17

16

36

BKC-PL10-04

11

31.5

7

PT1/2

10

22

16

40

BKC-PL12-02

7

27.5

7

PT1/4

12

14

18

37

BKC-PL12-03

8.5

26.5

7

PT3/8

12

17

18

36

BKC-PL12-04

11

31

7

PT1/2

12

22

18

40.5

BKC-PL14-02

7

31

7

PT1/4

14

14

20

42

BKC-PL14-03

8.5

31

7

PT3/8

14

17

20

42

BKC-PL14-04

11

34

7

PT1/2

14

22

20

45

BKC-PL14-06

-

-

-

-

-

-

-

-

BKC-PL16-02

7

30.5

7

PT1/4

16

14

22

42

BKC-PL16-03

8.5

30.5

7

PT3/8

16

17

22

42

BKC-PL16-04

11

35

7

PT1/2

16

22

22

46.5

BKC-PL16-06

-

-

-

-

-

-

-

-



Tlhokomeliso: NPT, PT, G khoele ke boikhethelo





-

-

-

-

-

-

-

-
