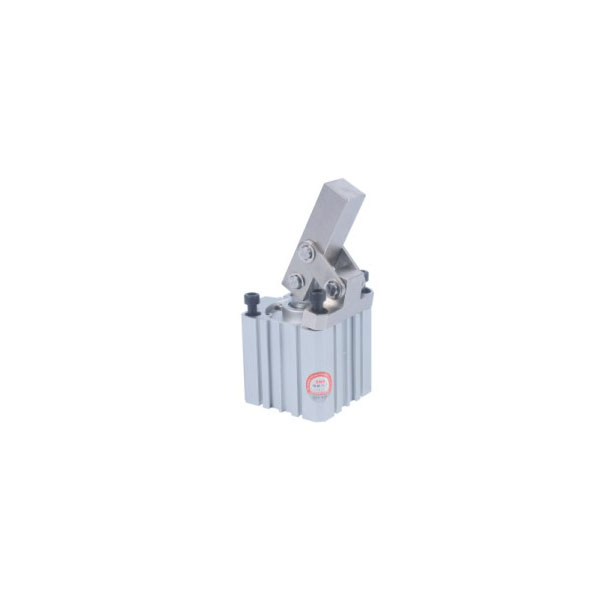

SNS ALC Series aluminium acting Lever mofuta oa pneumatic standard air compressor cylinder

Tlhaloso e Khutšoanyane:

ALC Series Pneumatic Air Gripper Cylinder e Compact 'me ho bonolo ho e kenya.Cylinder e Nyenyane, 'me ho bonolo ho e kenya, e boloka sebaka.The Cylinder Is Preset With Steel Groove, 'Me The Magnetic Switch e ka Hlophisoa le Magnetic Cylinder, Ho Lemoha The Automation Requirements.Excellent aluminium material, hard oxidation, solid aluminium CNC precision machining, thickened cylinder body, hard oxidation, ka hare lebota ts'ebetso ea ho sila. , e manganga, e sa tsitsang, e tiisa haholo, e ka tšeptjoa ebile e tšoarella.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Khoutu ea Odara

73
Tlhaloso ea Setsebi

Bore Size(mm)

φ25

φ32

φ40

φ50

φ63

Piston Rod Diameter(mm)

φ10

φ12

φ16

φ20

φ20

Kakaretso ea Stroke(mm)

20

23

25

30

35

Sebaka sa Compression(cm²)

4.91

8.04

12.57

19.63

31.17

Theoretical Holding Force(6kg/cm²)

15

25

44

71

136

Mokelikeli

Moea o Hatelitsoeng

Khatello e Phahameng

10kg/cm²

Ho sebetsa Khatello Range

1 -7kg/cm²

Mokhoa oa ho sebetsa

Ho etsa habeli

Boemo

74



Bore Size

(mm)

C1

C2

D

E

F

G1

G2

G3

G4

H

J1

J2

K

L1

L2

M

N

Mofuta o Tloaelehileng

Mofuta oa Magnet

A1

A2

B

A1

A2

B

φ25

□12,7

6

φ5

25

50

45

14

27.5

17

3

40

-

28

M5x0.8

10.5

M5x0.8

8

65.5

78.2

41

75.5

88.2

51

φ32

□15,9

8

φ6

31

60

54

17

33

20

3

44

50

34

M5x0.8

11

PT 1/8

9

78

93.9

49

93

108.9

64

φ40

□15,9

8

φ6

32

65

58

20

34

22

3

52

58

40

M6x1.0

9.5

PT1/8

10

82.5

98.4

51.5

97.5

113.4

66.5

φ50

□19

10

φ8

35

75

66

23

38

27

3

62

71

48

M6x1.0

11

PT 1/4

11

96.6

115.6

58.6

106.6

125.6

68.6

φ63

□22.2

10

φ8

38.5

85

76

29.5

40.5

32

3

75

84.5

60

M6x1.0

11

PT 1/8

11

115.5

137.7

72.5

125.5

147.7

82.5
