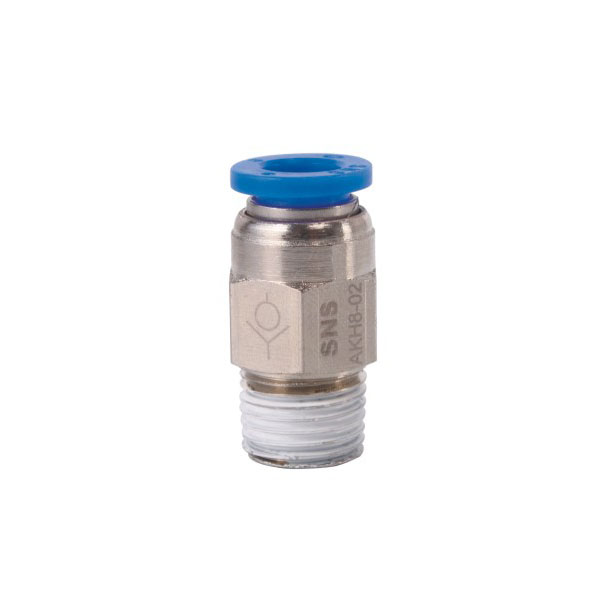

SNS AKH/AKB letoto la li-valve tsa taolo ea pneumatic air tsela e le 'ngoe ea ho laola lebelo

Tlhaloso e Khutšoanyane:

Lisebelisoa tsa moea li sebelisoa liphaepheng tsa moea.Li-tube fittings li tla ka mefuta e mengata e fapaneng ho fihlela litlhoko tsohle tsa hau ka liphaephe tsa moea.Esita le ka mor'a ho kenya, tataiso ea tube e ka fetoloa ka bolokolohi.


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

3.79

Mohlala

φD

R

L

A

H

Mofuta oa A

Mofuta oa B

AKH04-M5A

AKH04-M5B

4

M5

31.5

5

12

AKH04-01A

AKH04-01B

PT 1/8

28.5

8

12

AKH04-02A

AKH04-02B

PT 1/4

28.5

8

14

AKH06-01A

AKH06-01B

6

PT 1/8

31

8

14

AKH06-02A

AKH06-02B

PT 1/2

31

8

14

AKH08-01A

AKH08-01B

8

PT 1/8

30.5

8

15

AKH08-02A

AKH08-02B

PT 1/4

30.5

8

15

AKH08-03A

AKH08-03B

PT 3/8

30.5

10

17

AKH10-02A

AKH10-02B

10

PT 1/4

56.2

8

19

AKH10-03A

AKH10-03B

PT 3/8

46.3

10

19

AKH10-04A

AKH10-04B

PT 1/2

47.2

10

21

AKH12-02A

AKH12-02B

12

PT 1/4

57

10

21

AKH12-03A

AKH12-03B

PT 3/8

47

10

21

AKH12-04A

AKH12-04B

PT 1/2

47

10

21

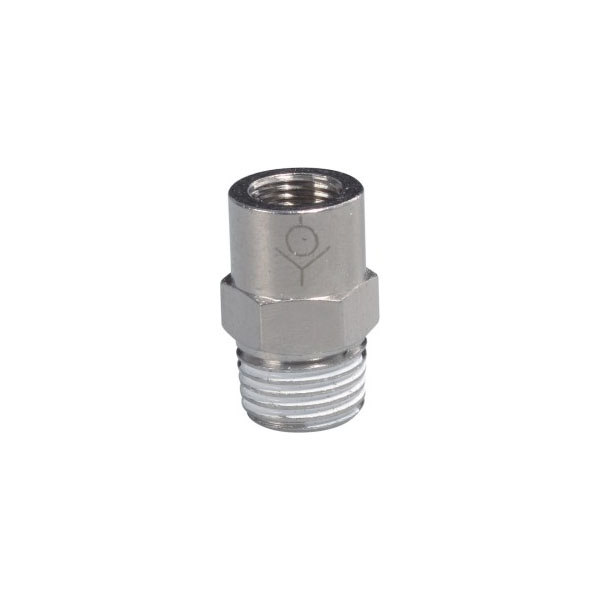

Mofuta oa Khoele ea Banna & Pipe

3.80



Mofuta oa Khoele ea Banna & Pipe

3.81



Mohlala

Khoele(a)

Khoele(b)

L

A

H

Mofuta oa A

Mofuta oa B

AKB01-01A

AKB01-01B

PT1/8

G1/8

23.8

20.7

14

AKB01-02A

AKB01-02B

PT1/4

G1/8

23.8

20.7

14

AKB02-02A

AKB02-02B

PT1/4

G1/4

23.8

20.7

14

AKB03-03A

AKB03-03B

PT3/8

G3/8

45.2

38.7

22

AKB04-04A

AKB04-04B

PT1/2

G1/2

56.2

48.2

24
