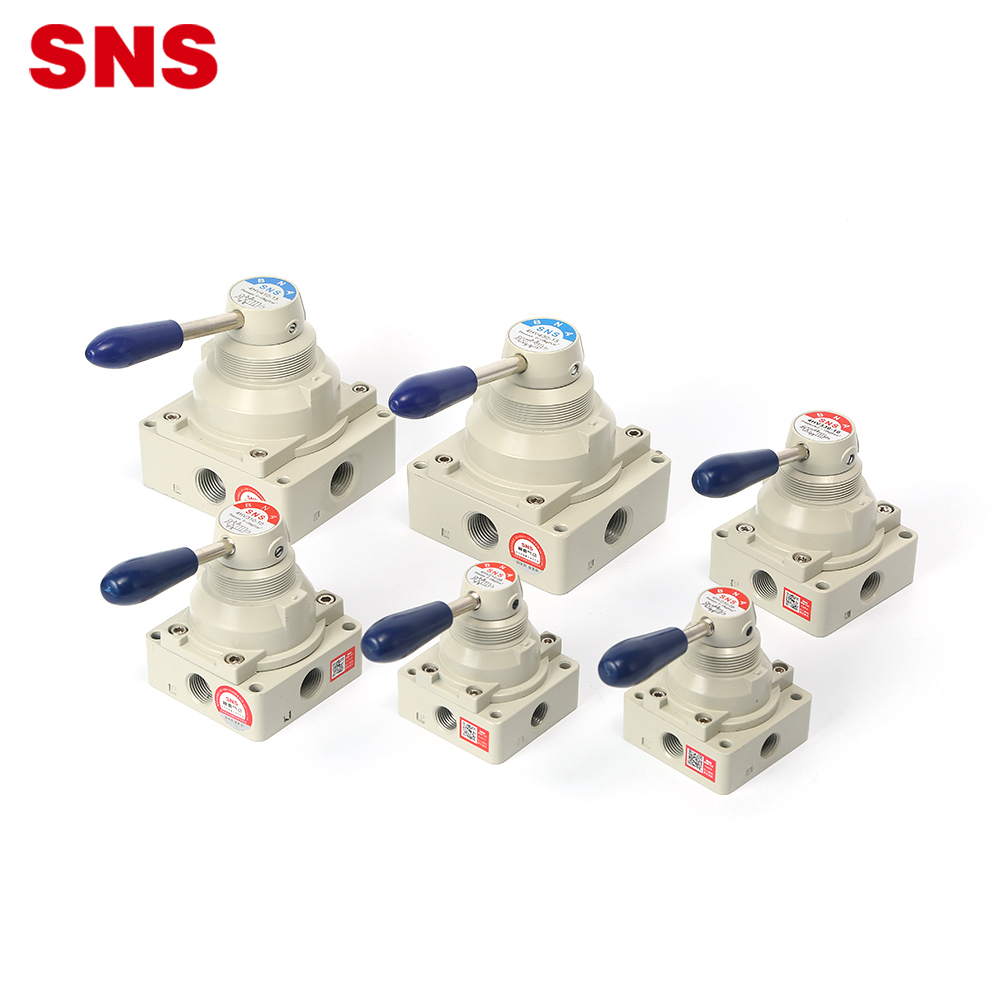

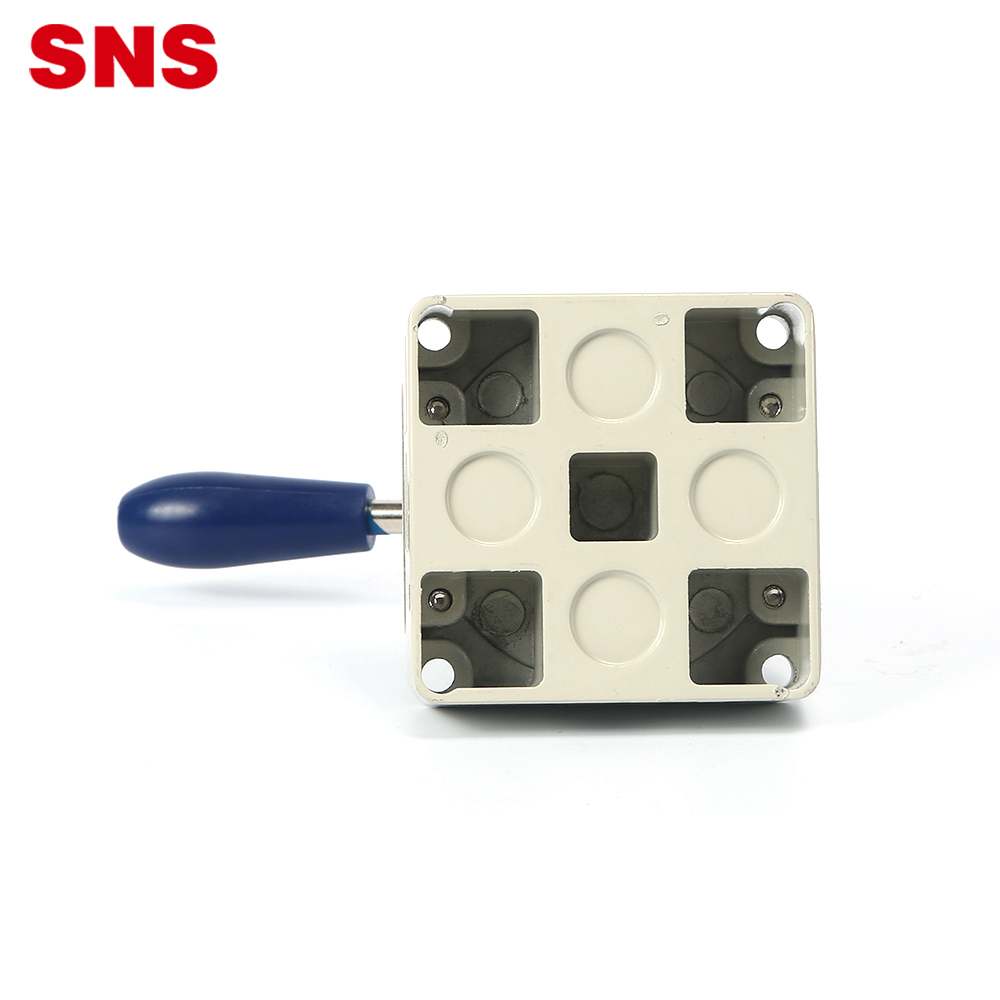

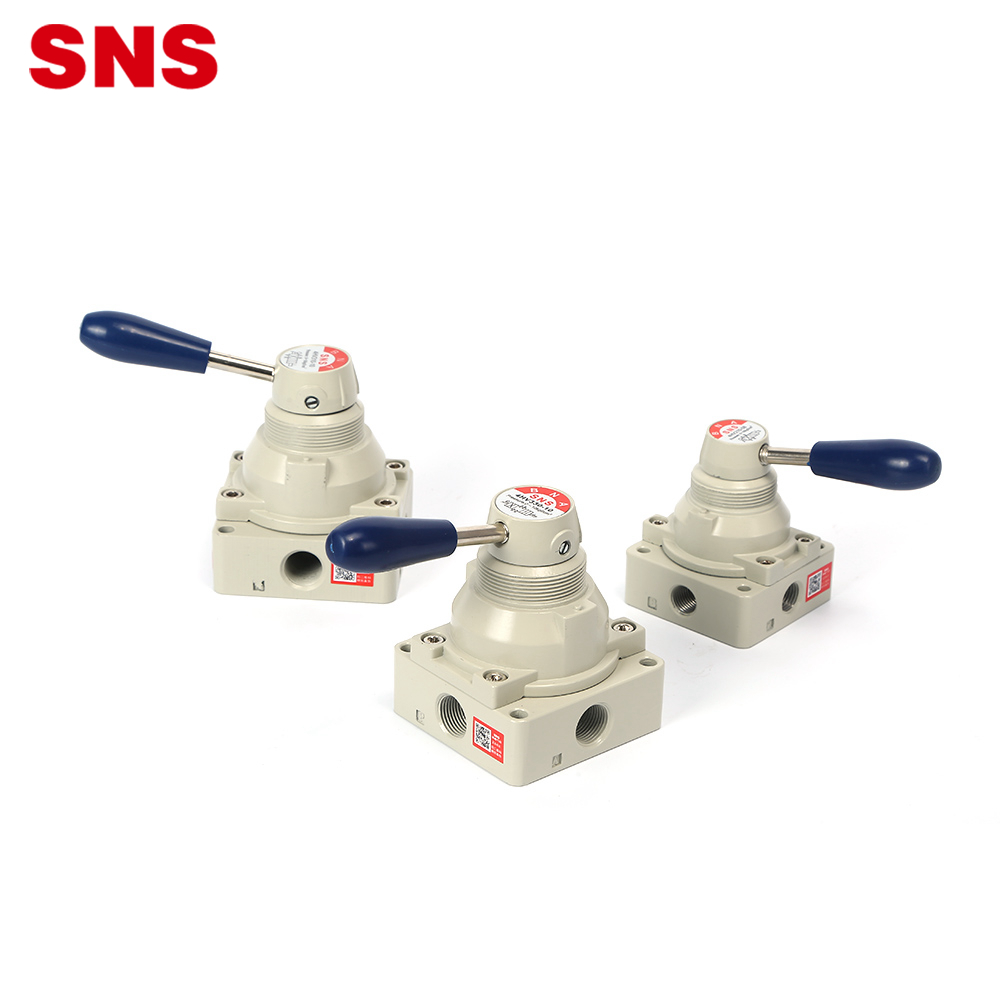

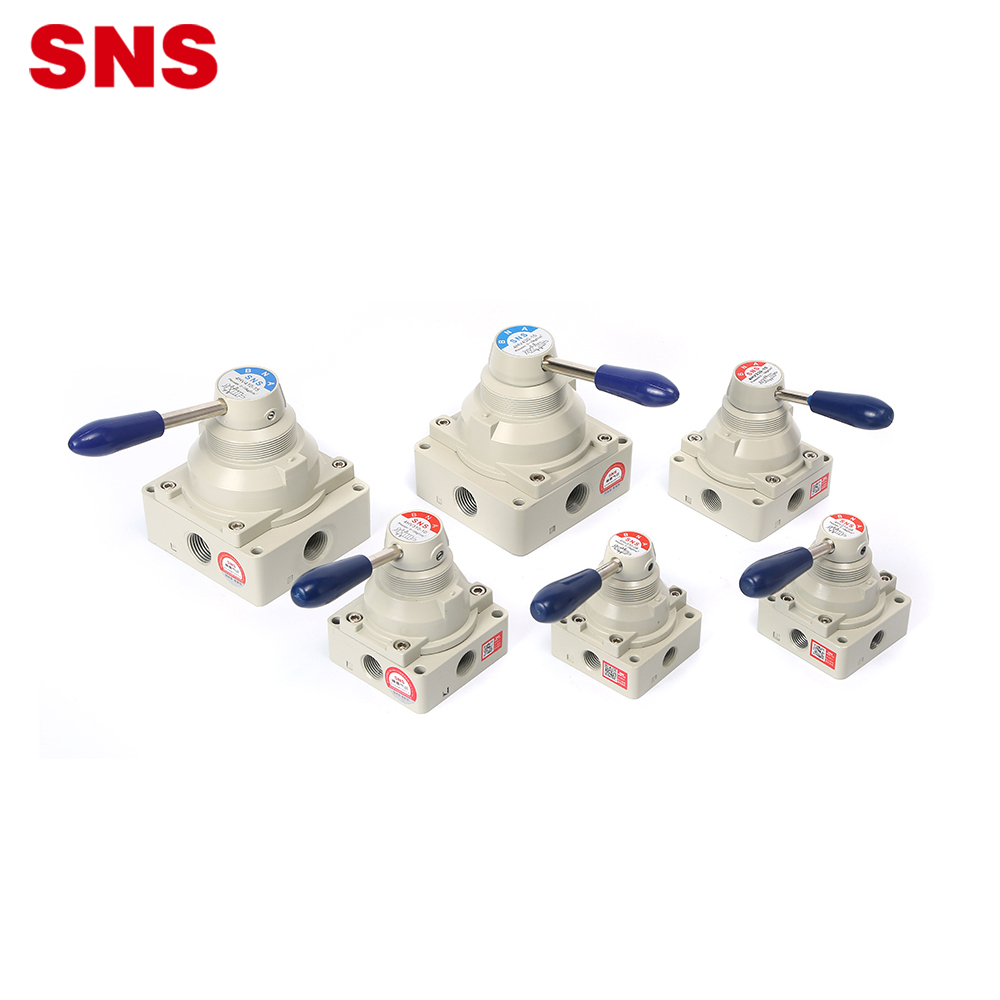

SNS 4HV letoto la boleng bo phahameng ba pneumatic hand switching control rotary valve

Tlhaloso e Khutšoanyane:

Ha valve e tsamaisoa ka letsoho, caitridge ea valve e fetoha 'me kahoo e fetola tsela eo moea o phallang ka eona.
Valve e bonolo ho sebetsa, ho bonolo ho e kenya ebile ho bonolo ho e tlosa.
'Mele oa Valve o entsoe ka Aluminium e Phahameng ka ho Fetisisa e nang le boima bo phahameng le bophelo bo bolelele ba tšebeletso.

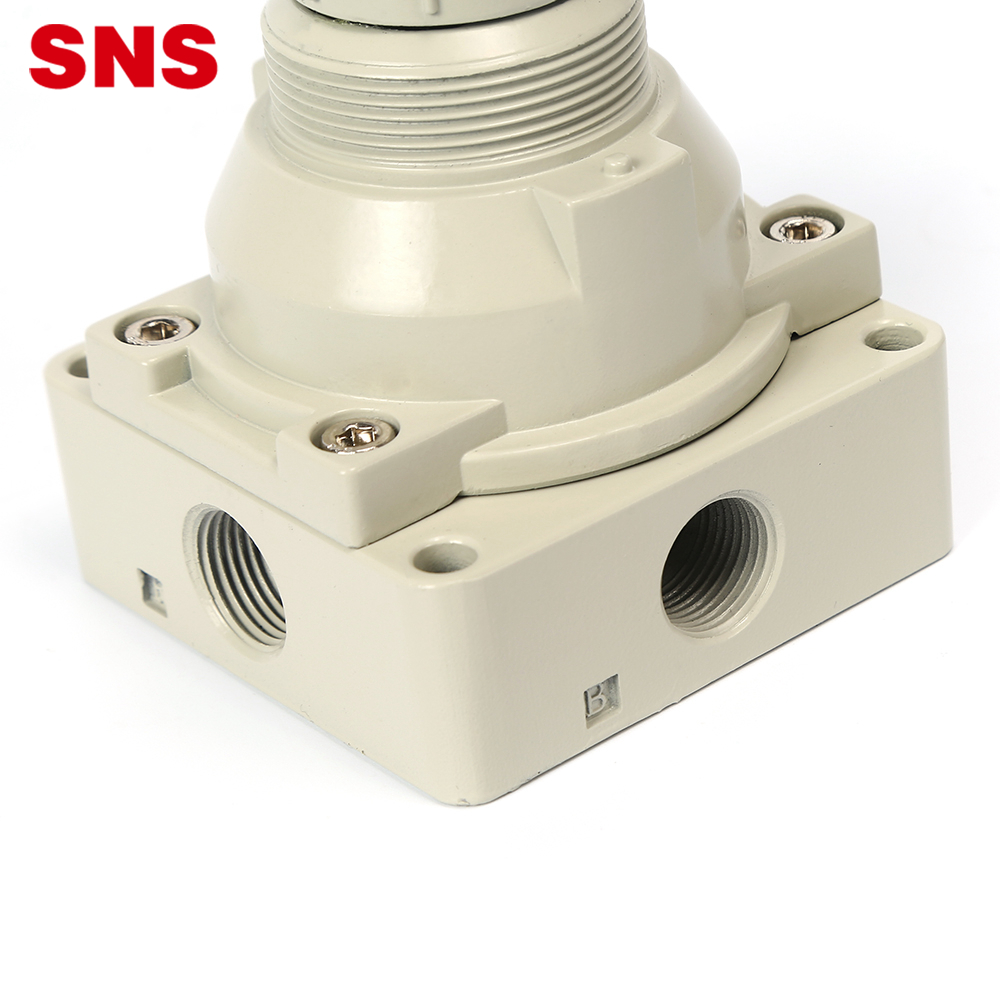

Khoele e 'ngoe le e' ngoe e hlophisitsoe hantle, ha e na Burrs, e Boreleli ebile e bonolo ho e kenya.
'Mele oa Valve o na le Ring ea Tiiso e Phahameng, eo ho seng bonolo ho e Lutla, mme Rubber Pad e nang le oli e tlotsang e Fokotsa Khohlano.
The Inner Hole E sebetsoa ke Ts'ebetso e Khethehileng, e nang le Small Friction Resistance le Long Service Life.

Re romelle lengolo-tsoibila

Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

■ Tšobotsi :
Re ikitlaelletsa ho ba ba phethahetseng ka botlalo.
Khetho e thata ea karolo ka 'ngoe, ho kenyeletsoa thepa le likarolo tse ling tse setseng.
Ts'ebetso e ntle ea khoele le ts'ebetso e ntle ea ho tiisa li phethahatsa boleng bo holimo
ea valve ea letsoho.
Hlokomela :
Khoele ea NPT e ka hlophisoa.

Mohlala		4HV2**-06	4HV2**-08	4HV3**-08	4HV3**-10	4HV4**-15	4HV4**-20
Media Media		Moea o Hloekileng
Boemo		Boema-kepe ba 4/2, Boema-kepe ba 4/3
Boholo ba Boema-kepe		G1/8	G1/4	G1/4	G3/8	G1/2	G3/4
Sebaka se Sebetsang sa Sectional(mm²)		14(0.78)	16(0.89)	30(1.67)	33(1.83)	88(4.89)	95(5.27)
Sebetsa Khatello Range		1.0MPa
Khatello ea Bopaki		1.5MPa
Mosebetsi oa Mocheso Range		0 ~ 60℃
Operation Angle		90 ℃
Lintho tse bonahalang	'Mele	Aluminium Alloy
	Tiiso	Nylon

Mohlala	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
4HV2-06	74	45.5	1.5	G1/8	11.5	M34X1.5	91	5	62	49	40	3	49	62	120
4HV2-08	74	45.5	1.5	G1/4	11.5	M34X1.5	91	5	62	49	40	3	49	62	120
4HV3-08	88	56	1.5	G1/4	13	M40X1.5	108	6.5	73.5	62	51	3	62	74	140
4HV3-10	88	56	1.5	G3/8	13	M40X1.5	108	6.5	73.5	62	51	3	62	74	140
4HV4-15	109	70.5	2	G1/2	17.5	M52X1.5	130	6.5	101.5	89	63.5	3	81	94	160
4HV4-20	109	70.5	2	G3/4	17.5	M52X1.5	130	6.5	101.5	89	63.5	3	81	94	160
